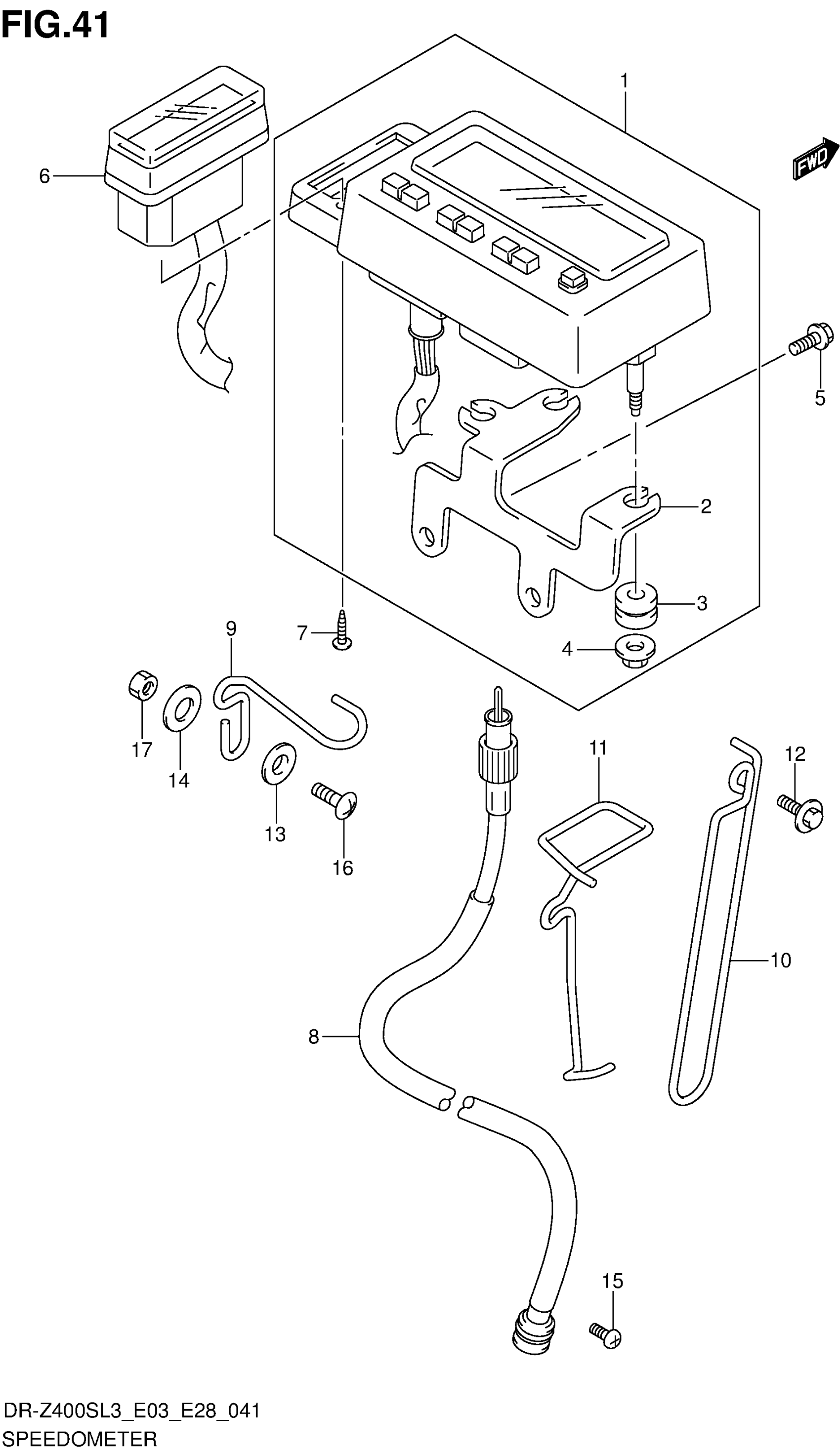

Suzuki DR-Z400SL3 (2013) SPEEDOMETER (DR-Z400SL3 E03) Diagram

#

Description
Price

1

SPEEDOMETER ASSY This part replaces 34100-29F40.

34100-29F41

$1,084.48

2

BRACKET

34950-29F00

$48.38

3

.CUSHION

34996-43410

$4.35

4

NUT

08316-1005A

$2.19

5

BOLT

01550-0616A

$1.97

6

BOX ASSY, PILOT LAMP

36380-29F00

$287.20

7

SCREW

03511-0420B

$2.46

8

CABLE ASSY SPEEDOMETER

34910-32E00

$41.17

9

GUIDE, METER CABLE NO.1

34938-03D22

$11.38

10

GUIDE METER CABLE NO.2

34938-14D30

$10.63

11

GUIDE, SPEEDMETER CABLE NO.3

34938-29F10

$14.48

12

BOLT (6X20)

09116-06201

$2.72

13

WASHER (6.5X18X1.6)

09160-06109

$1.49

14

WASHER (6.3X16X1)

09169-06053

$1.49

15

SCREW

02112-0516B

$1.93

16

SCREW

02142-0616B

$1.78

17

NUT

08310-0006B

$2.34
