2013 Suzuki DR-Z400SL3 Front Caliper Diagram

← All diagrams

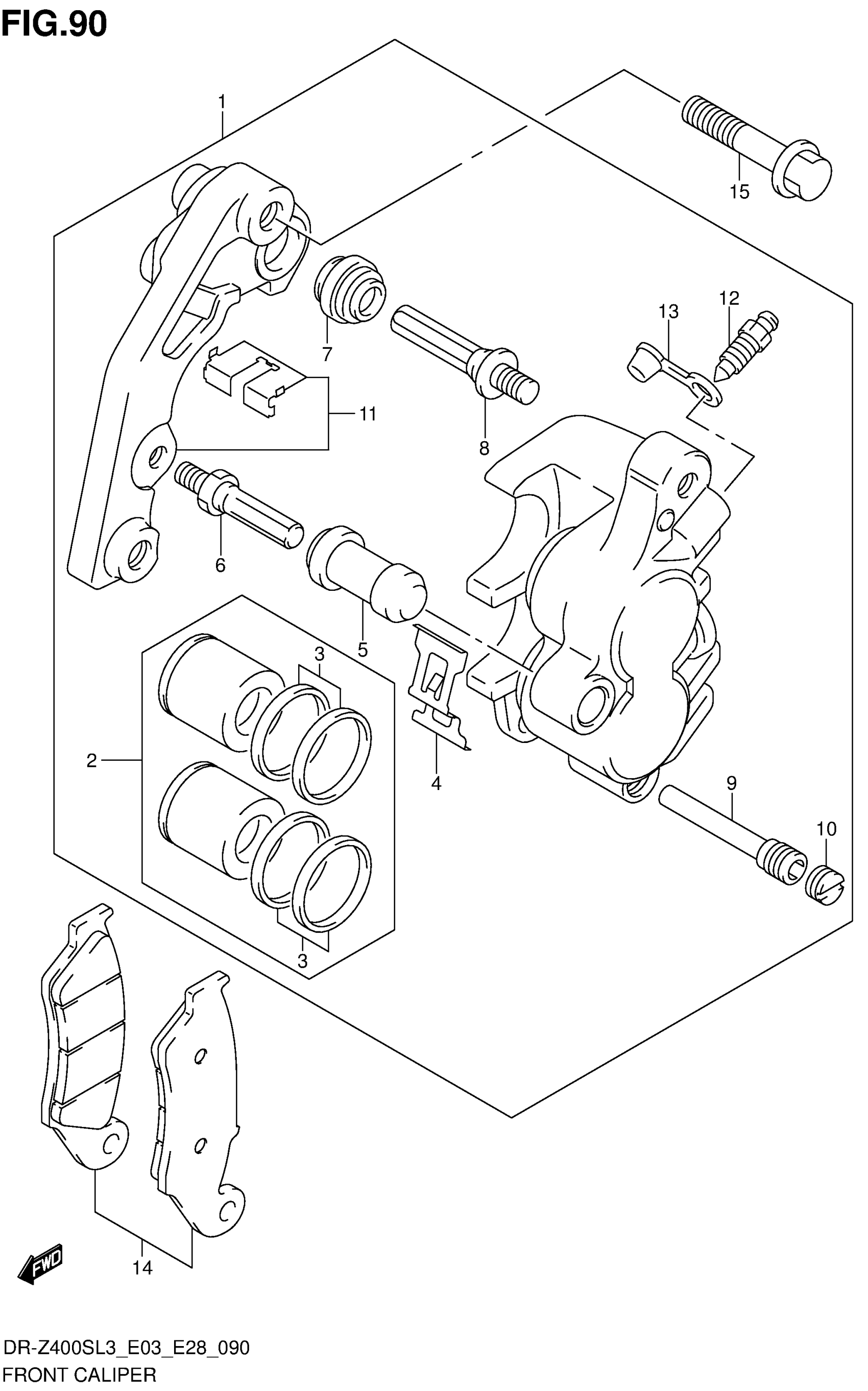

Find the part on the Front Caliper diagram for your 2013 Suzuki DR-Z400SL3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2013 Suzuki DR-Z400SL3 Front Caliper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CALIPER ASSY, FRONT LH

59300-13E31-999

1
Out of stock

2

PISTON SET

59300-27840

1
Out of stock

3

SEAL SET, PISTON

59300-13820

1
Out of stock

4

SPRING

59315-13E00

1
Out of stock

5

BOOT

59386-13A00

1
Out of stock

6

PIN

59382-14500

1
Out of stock

7

BOOT

59303-14500

1
Out of stock

8

PIN

59305-27C00

1
Out of stock

9

PIN

59345-13E00

1
Out of stock

10

PLUG

59146-21E10

1
Out of stock

11

BRACKET

59350-13E00

1
Out of stock

12

BLEEDER

59121-01A00

1
Out of stock

13

CAP

59122-01A00

1
Out of stock

14

PAD SET

59300-13860

1
Out of stock

15

BOLT (8X40)

09103-08338

2
Out of stock
