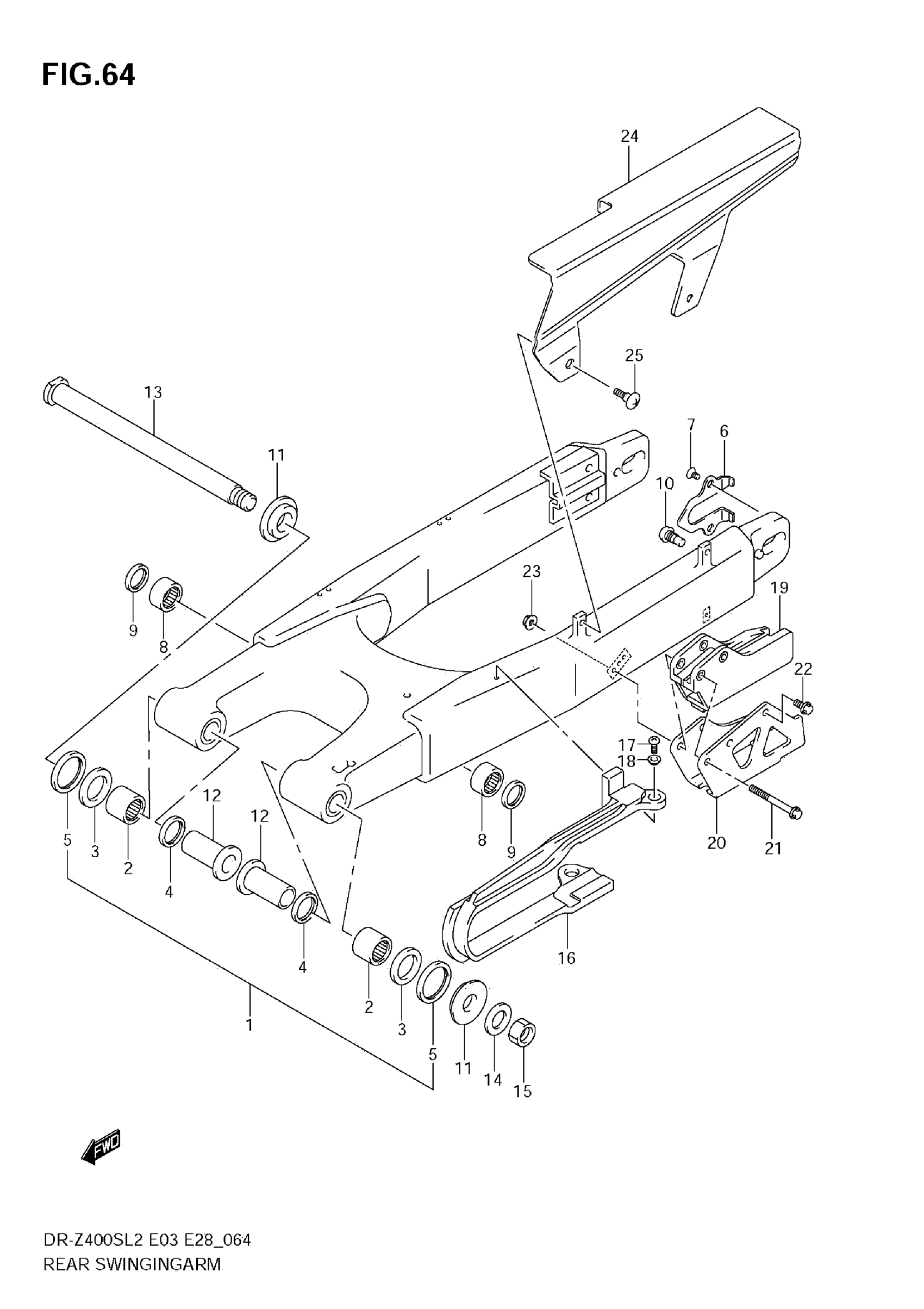

Suzuki DR-Z400SL2 (2012) REAR SWINGING ARM Diagram

#

Description
Price

1

SWINGING ARM ASSY, REAR

61000-29F10

Unavailable

2

BEARING (22X29X30)

09263-22017

$22.58

3

BEARING (22X35X2)

09263-22064

$27.72

4

.SEAL,OIL (21X29X4) This part replaces 09285-22001.

09285-22006

$3.83

5

SEAL,REAR SWINGING ARM PIVOT OUTER

61262-36E00

$6.93

6

.PLATE RR SWING ARM AXLE

61128-29E00

$18.33

7

SCREW (5X8)

09126-05009

$2.28

8

BEARING (20X27X15)

09263-20086

$16.47

9

SEAL, REAR CUSHION ROD

62624-14500

$6.01

10

STOPPER, CHAIN ADJUSTER

61431-13E00

$11.55

11

SPACER, SWINGING ARM PIVOT OUTER

61250-44E00

$19.57

12

SPACER, SWINGING ARM PIVOT INNER

61252-36E00

$53.92

13

SHAFT,REAR SWINGING ARM PIVOT

61211-29F00

$82.02

14

WASHER

08322-0116B

$2.70

15

NUT

09159-16007

$12.61

16

BUFFER, CHAIN TOUCH DEFENSE

61273-29F00

$66.14

17

SCREW

02112-0508B

$1.86

18

WASHER

09169-05022

$3.55

19

GUIDE, CHAIN This part replaces 61341-37F00.

61341-35G00

$48.05

20

PLATE, CHAIN GUIDE This part replaces 61342-36E30.

61342-37F00

$66.30

21

BOLT

01547-0650B

$2.75

22

BOLT

01547-0612B

$1.49

23

NUT

08319-3106B

$2.45

24

CASE, CHAIN

61310-34E00

$94.72

25

SCREW (6X16)

09139-06083

$2.26
