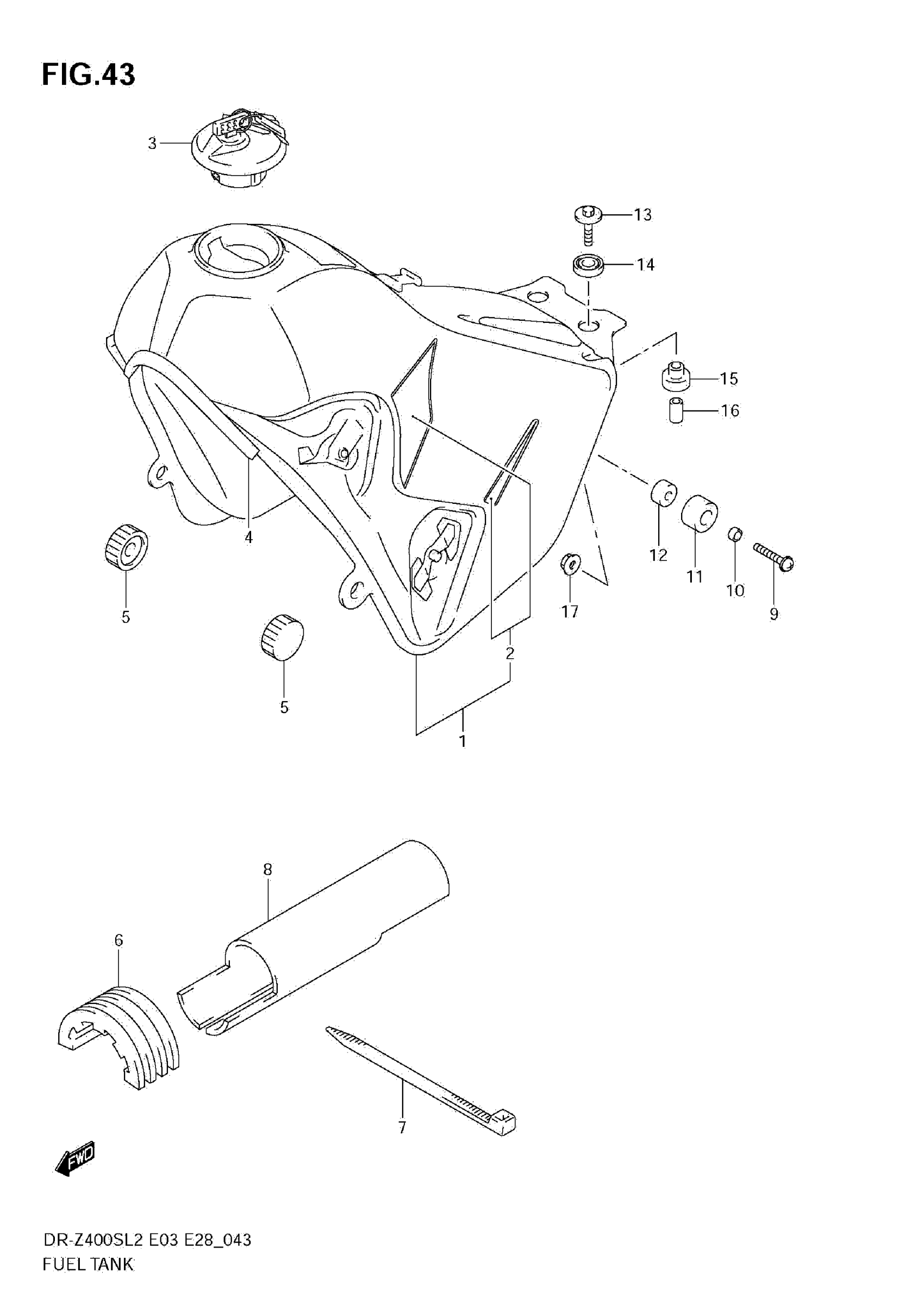

Suzuki DR-Z400SL2 (2012) FUEL TANK (E28) Diagram

#

Description
Price

1

TANK ASSY, FUEL (BLACK) | FOR 019

49200-29F30-3WX

Unavailable

1

TANK ASSY, FUEL (WHITE) | FOR 30H

49200-29F30-5UX

Unavailable

2

TAPE SET (WHITE/BLACK) | FOR 3WX

68120-29F20-HLY

Unavailable

2

TAPE SET (WHITE/BLUE) | FOR 5UX

68120-29F20-HLZ

Unavailable

3

CAP SET FUEL TANK FILLER This part replaces 44200-29820.

44200-29821

$140.27

4

MOLDING, FUEL TANK

68241-04X50-300

$7.32

5

CUSHION

09329-10016

$3.10

6

CUSHION, UPPER

44541-29F00

$34.55

7

CLAMP (L:300)

09407-30402

$4.11

8

SHIELD, FUEL TANK

44194-29F00

Unavailable

9

SCREW

02112-1630B

$3.08

10

SPACER (6.5X20X9)

09180-06215

$7.95

11

CUSHION, SIDE

45149-14D00

$6.63

12

SPACER (6.5X9X5)

09180-06306

$2.03

13

BOLT (6X30)

09116-06214

$2.50

14

CUSHION

09320-14022

$3.63

15

CUSHION (9X24X18) This part replaces 09320-10020.

09320-10071

$2.60

16

SPACER (6.5X9X18)

09180-06271

$2.35

17

NUT

08319-3106B

$2.45
