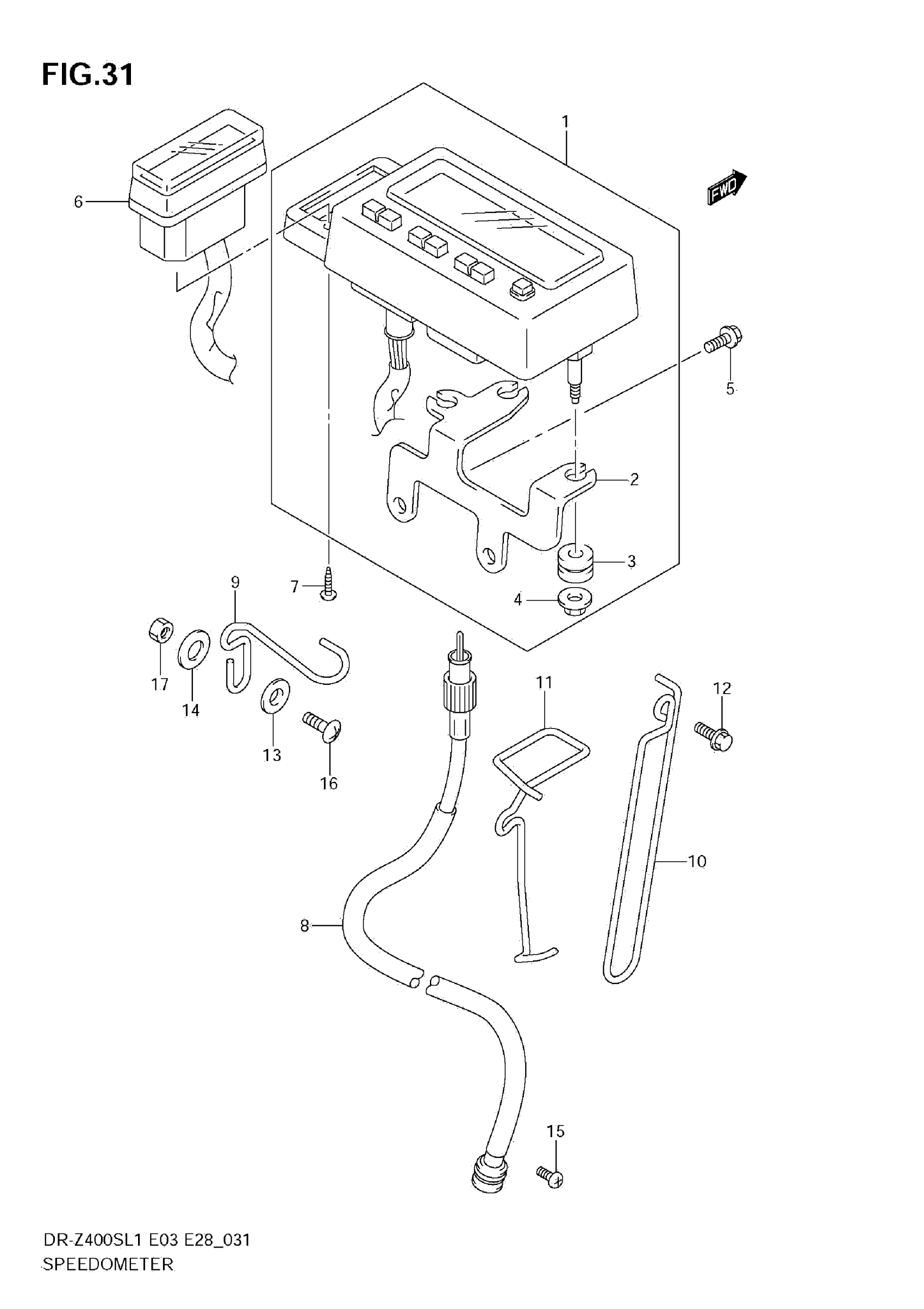

Suzuki DR-Z400SL1 (2011) SPEEDOMETER (DR-Z400SL1 E33) Diagram

Description

Price

SPEEDOMETER ASSY This part replaces 34100-29F40.

34100-29F41

$1,084.48

BRACKET

34950-29F00

$48.38

.CUSHION

34996-43410

$4.35

NUT

08316-1005A

$2.19

BOLT

01550-0616B

$2.48

BOX ASSY, PILOT LAMP

36380-29F00

$287.20

SCREW

03511-0420B

$2.46

CABLE ASSY SPEEDOMETER

34910-32E00

$41.17

GUIDE, METER CABLE NO.1

34938-03D22

$11.38

GUIDE METER CABLE NO.2

34938-14D30

$10.63

GUIDE, SPEEDMETER CABLE NO.3

34938-29F10

$14.48

BOLT (6X20)

09116-06212

$2.35

WASHER (6.5X18X1.6)

09160-06109

$1.49

WASHER (6.3X16X1)

09169-06053

$1.49

SCREW

02112-0516B

$1.93

SCREW

02142-0616B

$1.78

NUT

08310-0006B

$2.34
