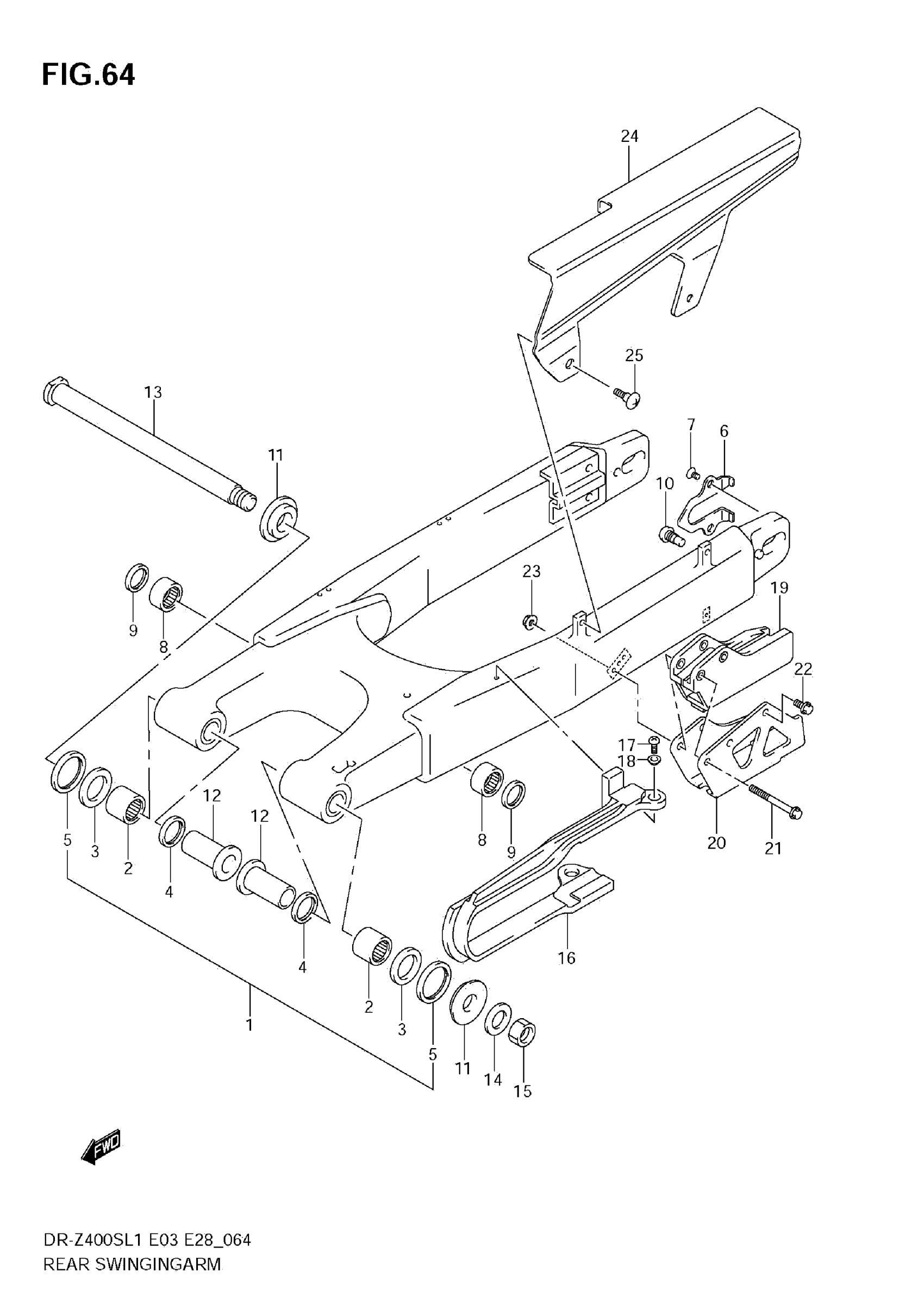

Suzuki DR-Z400SL1 (2011) REAR SWINGING ARM Diagram

#

Description
Price

1

SWINGING ARM ASSY, REAR

61000-29F10

Unavailable

2

BEARING (22X29X30)

09263-22017

$20.38

3

BEARING (22X35X2)

09263-22064

$30.12

4

.SEAL,OIL (21X29X4) This part replaces 09285-22001.

09285-22006

$3.46

5

SEAL, REAR SWINGING ARM PIVOT OUTER

61262-36E00

$6.52

6

.PLATE RR SWING ARM AXLE

61128-29E00

$24.33

7

SCREW (5X8)

09126-05009

$2.29

8

BEARING (20X27X15)

09263-20086

$14.87

9

SEAL, REAR CUSHION ROD

62624-14500

$5.65

10

STOPPER, CHAIN ADJUSTER

61431-13E00

$13.03

11

SPACER, SWINGING ARM PIVOT OUTER

61250-44E00

$22.08

12

SPACER, SWINGING ARM PIVOT INNER

61252-36E00

$60.85

13

SHAFT, REAR SWINGING ARM PIVOT

61211-29F00

$92.57

14

WASHER

08322-0116B

$2.95

15

NUT

09159-16007

$11.37

16

BUFFER, CHAIN TOUCH DEFENSE

61273-29F00

$60.54

17

SCREW

02112-0508B

$1.85

18

WASHER

09169-05022

$3.21

19

GUIDE, CHAIN This part replaces 61341-37F00.

61341-35G00

$43.99

20

PLATE, CHAIN GUIDE This part replaces 61342-36E30.

61342-37F00

$72.75

21

BOLT

01547-0650B

$2.77

22

BOLT

01547-0612B

$1.22

23

NUT

08319-3106B

$2.47

24

CASE, CHAIN

61310-34E00

$106.90

25

SCREW (6X16)

09139-06083

$2.24
