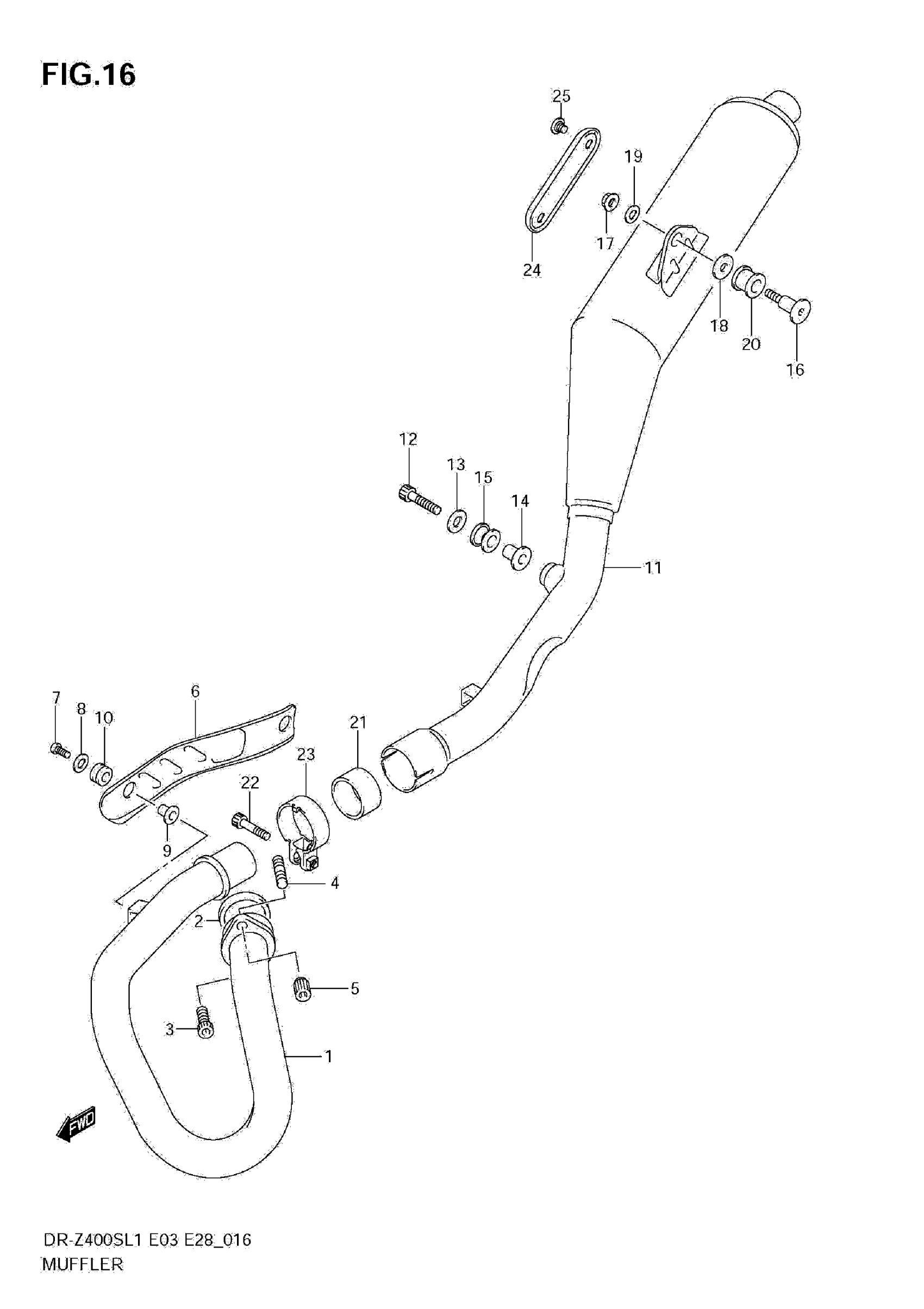

Suzuki DR-Z400SL1 (2011) MUFFLER Diagram

#

Description
Price

1

PIPE, EXHAUST

14150-29F10

$282.23

2

GASKET, EXHAUST PIPE

14181-29E02

$16.39

3

BOLT

07130-0825B

$3.37

4

STUD BOLT

01421-0816A

$1.78

5

NUT

09159-08112

$5.83

6

COVER, EXHAUST PIPE

14180-29F30

$56.02

7

SCREW (6X12)

09139-06109

$2.73

8

WASHER (6.5X18X1)

09160-06056

$1.72

9

SPACER, EXHAUST PIPE COVER

14185-07G00

$3.76

10

CUSHION (8.4X18X6)

09320-08066

$8.24

11

BODY, MUFFLER

14310-29FA0-H01

$679.02

12

BOLT (8X35)

09106-08133

$3.89

13

WASHER (8.5X26X1.6)

09160-08151

$1.99

14

SPACER (8.6X12X17.5)

09180-08151

$5.18

15

CUSHION

09320-12043

$7.98

16

BOLT, MUFFLER SUPPORT REAR

14419-29F00

$13.02

17

NUT

08319-3108B

$2.73

18

WASHER (8.5X30X2.3)

09160-08503

$2.50

19

WASHER

08322-0108B

$2.34

20

CUSHION

09320-12048

$5.11

21

CONNECTOR, MUFFLER JT

14771-29F10

$27.48

22

BOLT

07120-0840B

$3.82

23

CLAMP, MUFFLER CONNECTOR

14459-29F10

$23.85

24

COVER, MUFFLER

14782-29F00

$23.78

25

SCREW, MUFFLER COVER

14789-29F01

$5.45
