Partiron

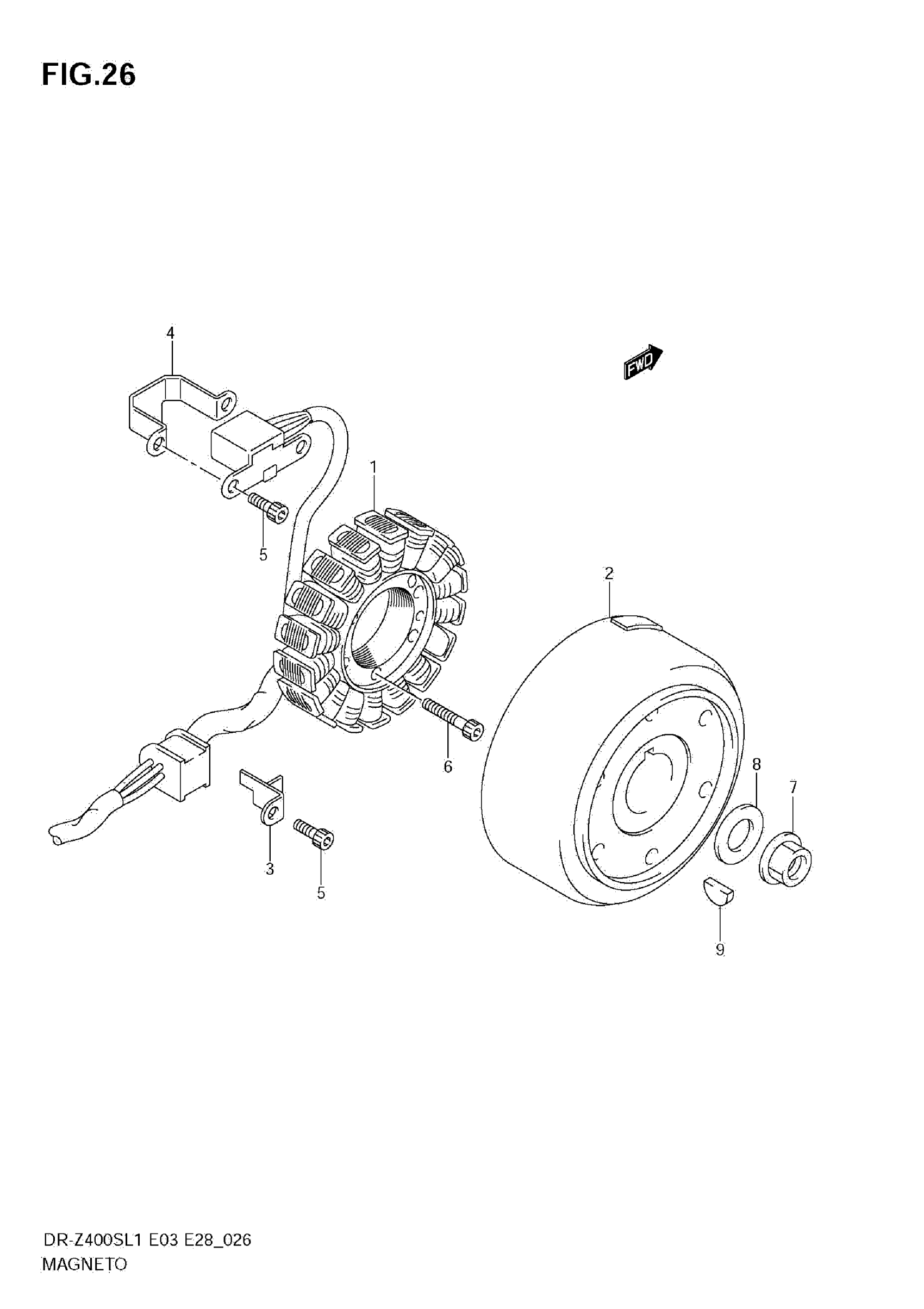

Suzuki DR-Z400SL1 (2011) MAGNETO Diagram

#

Description
Price

1

STATOR ASSY, MAGNETO

32101-29F00

$656.16

2

ROTOR ASSY, MAGNETO

32102-29F00

$686.05

3

CLAMP, MAGNETO LEAD NO.1

32371-13E00

$3.35

4

CLAMP, MAGNETO PULSER LEAD

32371-14D01

$6.15

5

BOLT

07130-0512B

$2.53

6

BOLT

07130-0525B

$2.70

7

NUT

08316-1012B

$3.48

8

WASHER (12X27X2.0)

09160-12051

$2.62

9

KEY

09420-04008

$3.08
