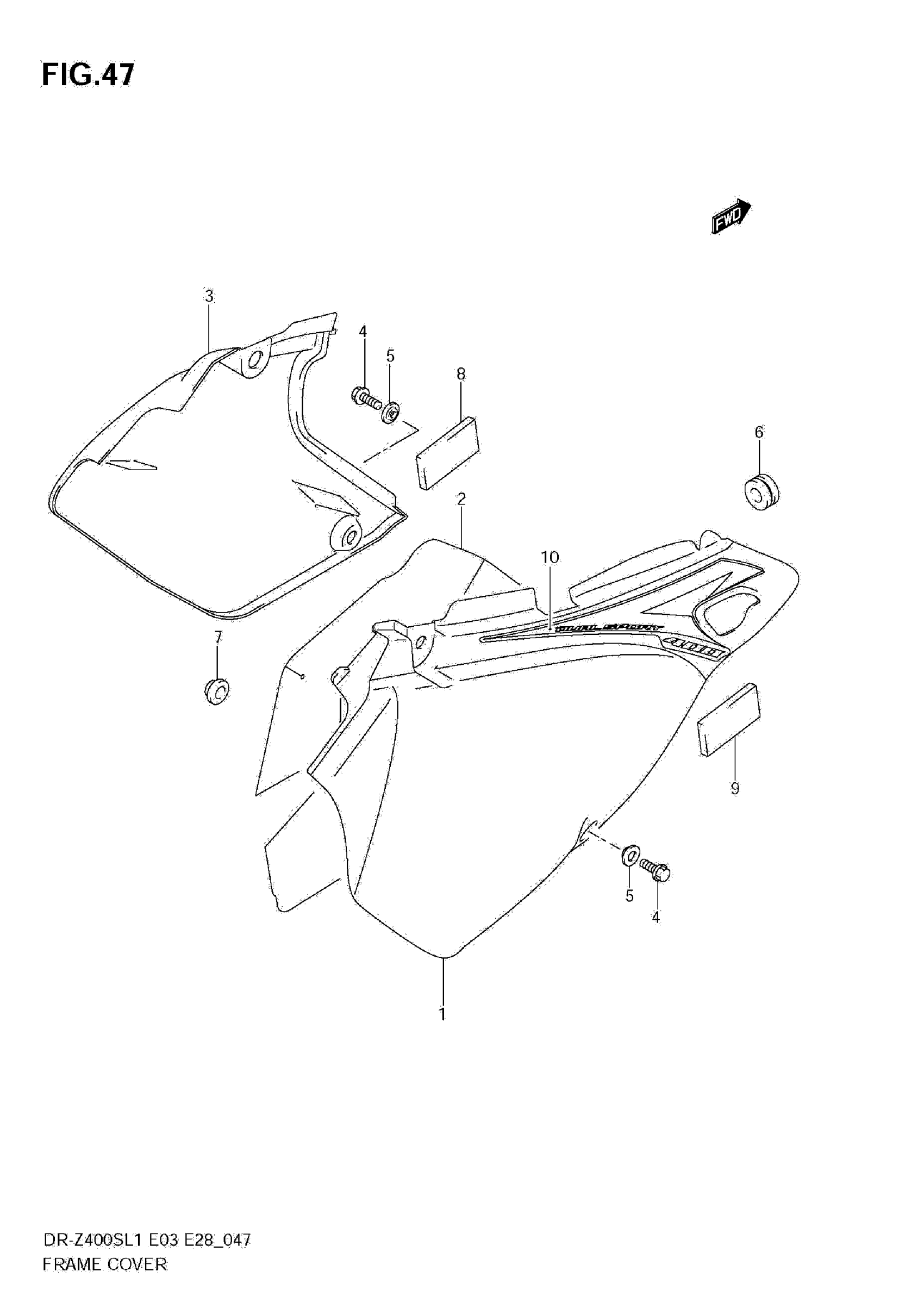

Suzuki DR-Z400SL1 (2011) FRAME COVER (DR-Z400SL1 E3) Diagram

#

Description

Price

1

COVER, FRAME RH (BLACK)

47111-29FC0-019

$95.70

1

COVER, FRAME RH (WHITE)

47111-29FC0-30H

$57.40

2

SHIELD, FRAME COVER RH

47166-29F00

$82.92

3

COVER, FRAME LH (BLACK)

47211-29FA0-019

$80.03

3

COVER, FRAME LH (WHITE)

47211-29FA0-30H

$57.40

4

BOLT (6X12)

09103-06273

$2.26

5

WASHER This part replaces 09169-06031.

09169-06041

$2.20

6

CUSHION

09320-06504

$4.96

7

CUSHION

09321-10018

$5.45

8

CUSHION, FRAME COVER LH

47161-29F00

$6.11

9

CUSHION, FRAME COVER RH FRONT

71762-65G10

$8.28

10

TAPE, FRAME COVER RH (SILVER/BLACK) | FOR 019

68135-29FD0-HMC

$40.43

10

TAPE, FRAME COVER RH (BLUE/WHITE) | FOR 30H

68135-29FD0-HMD

$40.40
