2011 Suzuki DR-Z400SL1 Cylinder Diagram

← All diagrams

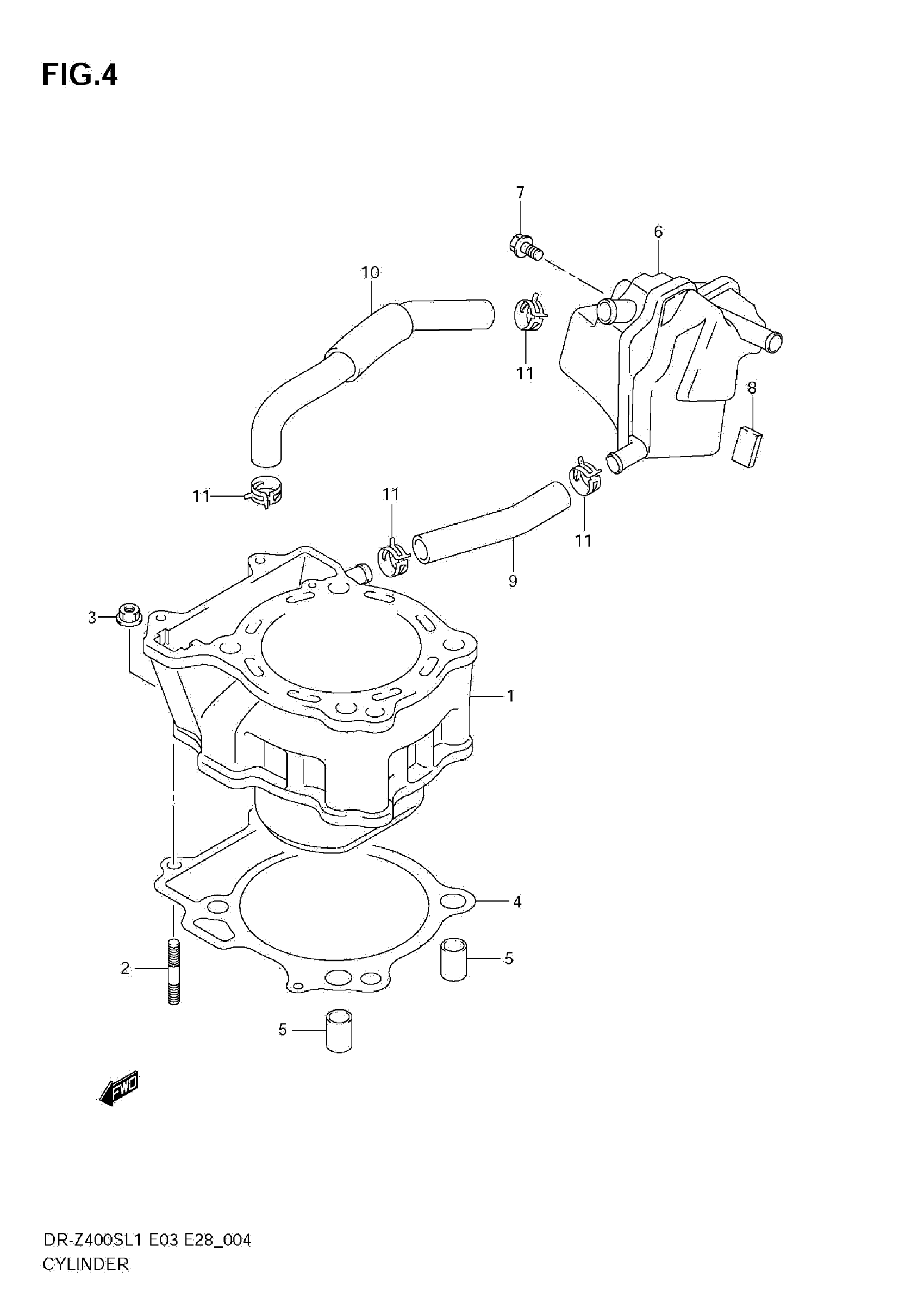

Find the part on the Cylinder diagram for your 2011 Suzuki DR-Z400SL1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2011 Suzuki DR-Z400SL1 Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CYLINDER

11210-29F20-0F0

1

$1,061.57

In stock

2

STUD BOLT

01421-0625A

2
Out of stock

3

NUT

08316-1006A

2
Out of stock

4

GASKET, CYLINDER

11241-29F11

1

$23.29

In stock

5

PIN

04211-13189

2
Out of stock

6

TANK, OIL RETURN

11330-29F00

1

$47.26

In stock

7

BOLT

01550-0610A

1
Out of stock

8

1

$4.46

In stock

9

HOSE, BREATHER

11332-29F00

1

$11.31

In stock

10

HOSE, BREATHER

11333-29F00

1

$22.04

In stock

11

CLIP

09401-15404

4

$2.42

In stock
