2011 Suzuki DR-Z400SL1 Crank Balancer Diagram

← All diagrams

Find the part on the Crank Balancer diagram for your 2011 Suzuki DR-Z400SL1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

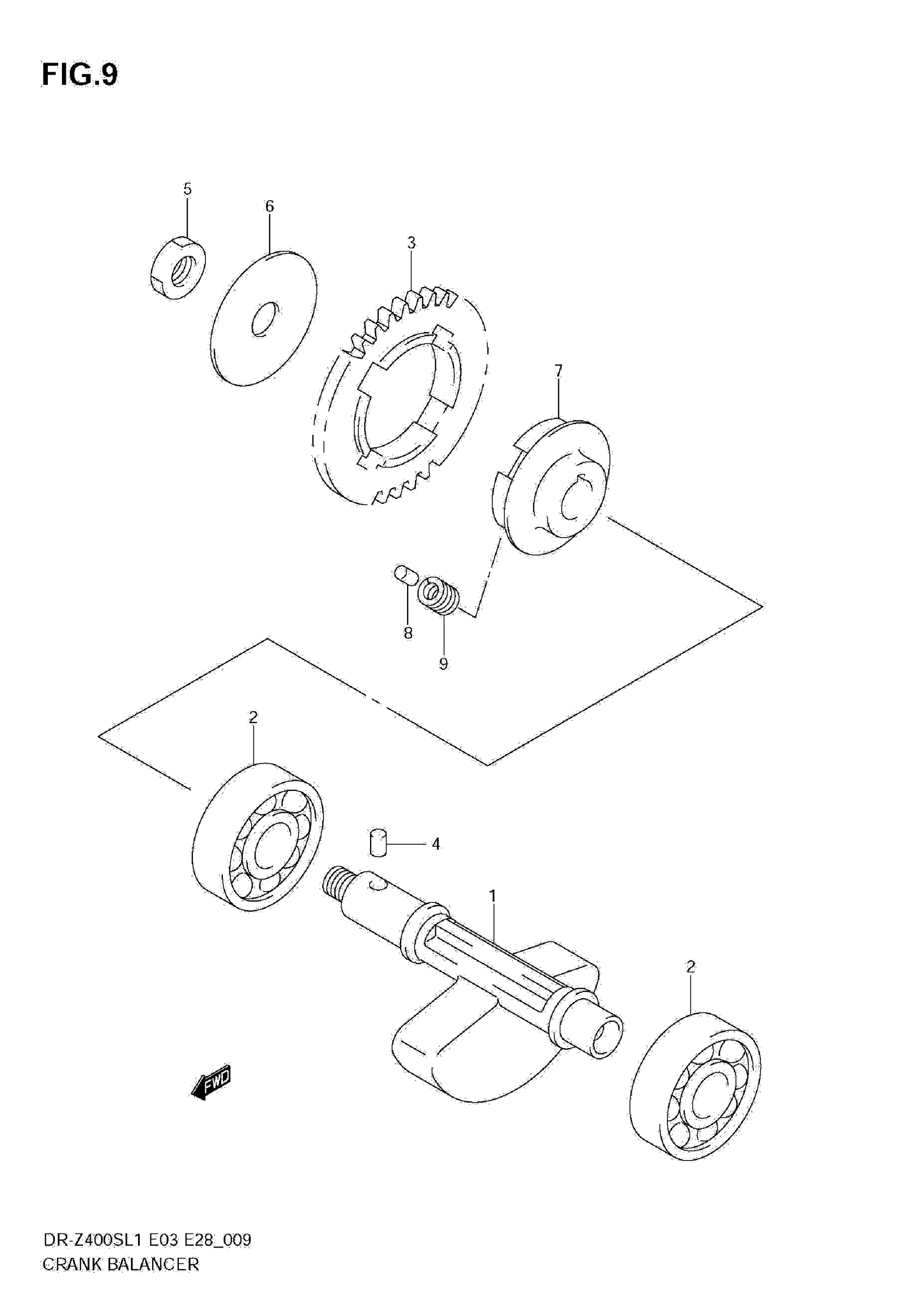

2011 Suzuki DR-Z400SL1 Crank Balancer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BALANCER, CRANK

12651-29F00

1

$148.75

In stock

2

BEARING (15X42X13)

09262-15030

2

$25.28

In stock

3

1

$152.77

In stock

4

PIN

09261-05005

1
Out of stock

5

NUT (M12)

09140-12039

1
Out of stock

6

WASHER (12.2X47X1.6)

09181-12009

1

$6.57

In stock

7

1

$88.93

In stock

8

PIN

09202-04017

2
Out of stock

9

SPRING

09440-09031

4

$2.94

In stock
