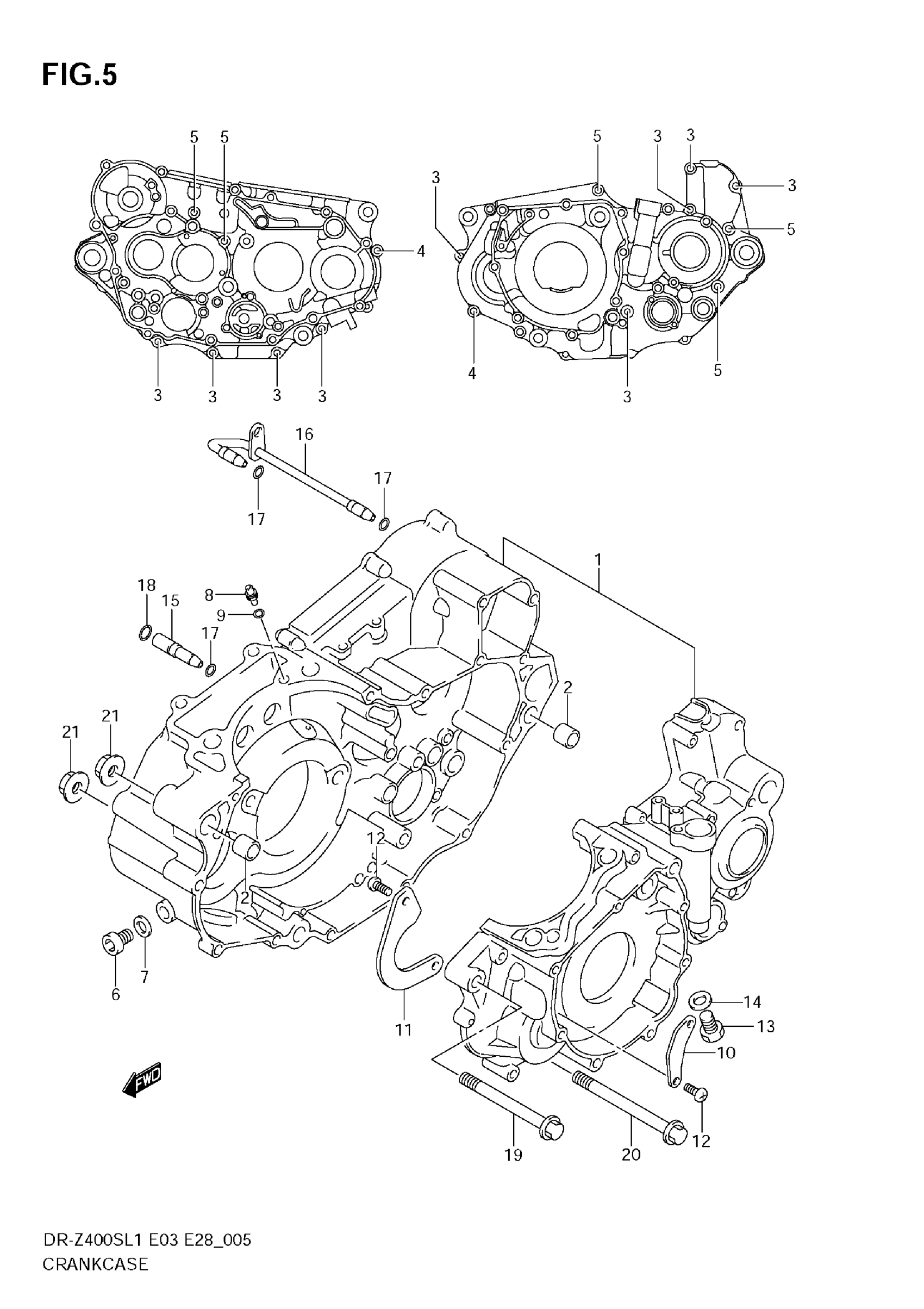

Suzuki DR-Z400SL1 (2011) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET This part replaces 11301-29853.

11301-29854

$728.75

2

PIN

04211-13189

$2.19

3

BOLT

01547-0640A

$2.32

4

BOLT

01547-0655A

$2.42

5

BOLT

01547-0670A

$2.92

6

PLUG

09248-10010

$4.17

7

GASKET (10X14X3.6)

09168-10002

$2.13

8

JET, OIL GALLERY CYLINDER

09493-80005

$16.25

9

O RING (D:1.2,ID:4)

09280-04004

$1.91

10

SEPARATOR, CRANKCASE OIL NO.1

11323-29F00

$3.22

11

SEPARATOR, CRANKCASE OIL NO.2

11324-29F00

$5.17

12

BOLT (6X12)

09125-06122

$2.44

13

PLUG

09247-12011

$4.64

14

GASKET (12.1X16.2X3.7)

09168-12002

$1.59

15

PIPE, OIL INNER NO.1

11451-29F00

Unavailable

16

PIPE, T/M OIL INNER NO.2

11460-29F00

$78.80

17

O RING (D:1.9,ID:4.8)

09280-05004

$2.11

18

O RING (D:1.9,ID:6.8)

09280-07004

$1.53

19

BOLT (10X100)

09103-10110

$8.43

20

BOLT (10X115)

09103-10063

$8.73

21

NUT

09159-10115

$3.55
