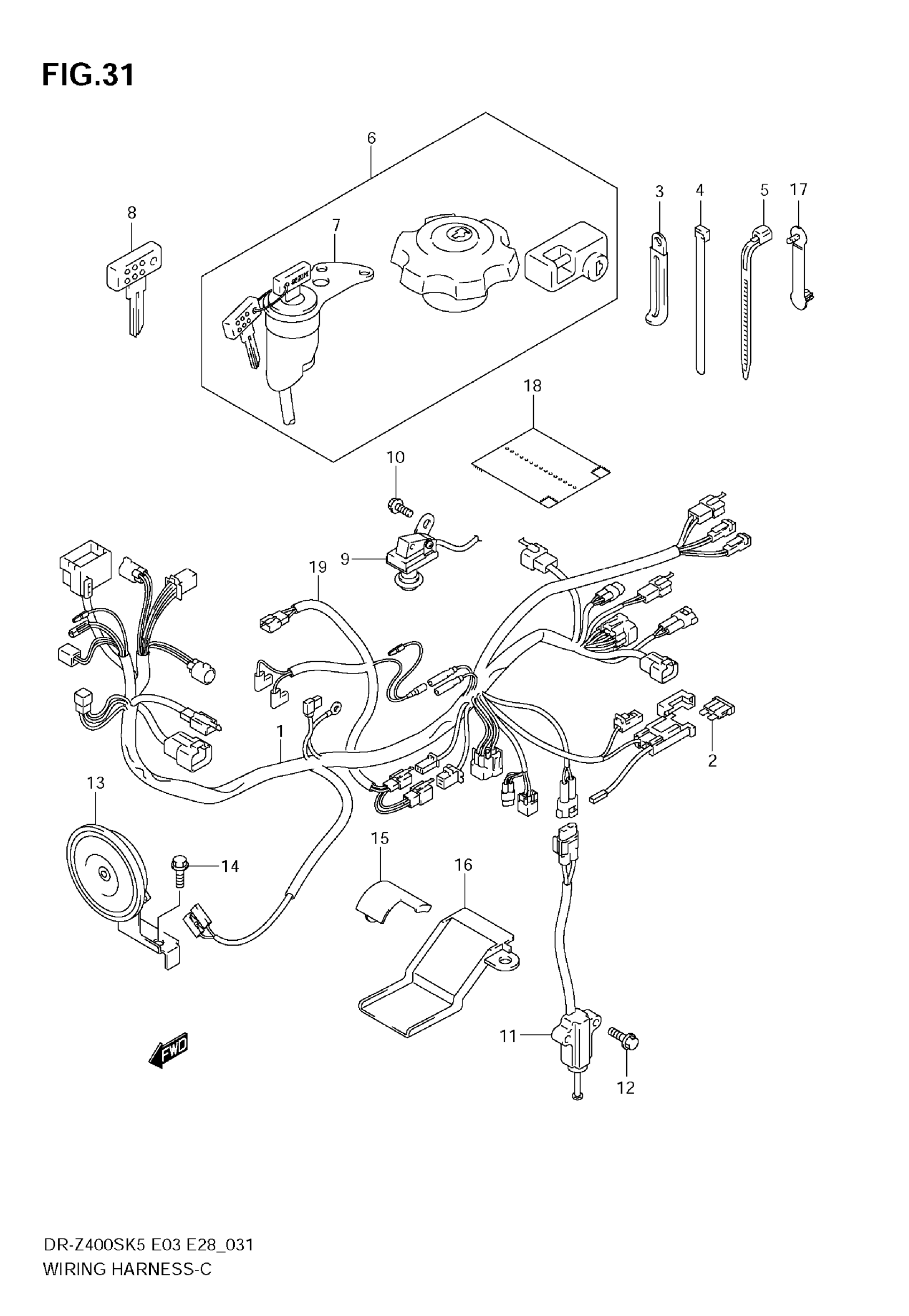

Suzuki DR-Z400S (2009) WIRING HARNESS (MODEL K5) Diagram

#

Description
Price

1

HARNESS,WIRING | Includes Item(s) 2 This part replaces 36610-29F30.

36610-29F31

Unavailable

2

FUSE (20A)

09481-20101

$2.12

3

CLAMP (L:45)

09404-06429

$1.83

3

CLAMP This part replaces 09404-06432.

09404-06039

$1.74

4

CLAMP (L:145)

09407-14407

$3.57

5

CLAMP (L:125)

09407-14403

$2.26

5

CLAMP (L:165)

09407-18402

$2.19

5

CLAMP (L:235)

09407-25401

$4.66

6

LOCK SET This part replaces 37000-29820.

37000-29824

$204.25

6

LOCK SET | E33; Includes Item(s) 7 This part replaces 37000-29830.

37000-29834

$160.48

7

SWITCH ASSY,IGN This part replaces 37110-29F00.

37110-29F01

$142.43

8

KEY, BLANK (TYPE:C) | OPT

37146-01F00

$9.09

8

KEY, BLANK (TYPE:D) | OPT

37146-01F10

$9.09

8

KEY, BLANK (TYPE:E) | OPT

37146-01F20

$9.09

8

KEY, BLANK (TYPE:F) | OPT

37146-01F30

$11.05

9

SWITCH ASSY, STOP LAMP

37740-29F00

$110.12

10

SCREW

02162-0608B

$2.53

11

SWITCH ASSY,SID This part replaces 37840-11X50.

37840-11X51

$82.02

12

BOLT

01550-0616B

$2.48

13

HORN ASSY This part replaces 38500-29F00.

38500-29F01

$85.15

14

BOLT

01550-0612B

$2.39

15

PROTECTOR, WIRING HARNESS

36611-29F10

Unavailable

16

PROTECTOR, WIRING HARNESS

36611-29F00

$9.00

17

CLAMP, WIRING HARNESS

36651-48E00

$3.25

18

COVER WIRING HARNESS This part replaces 36618-15D20.

36618-15D21

$18.87

19

WIRE, CARBURETOR HEATER | OPT

36856-29F00

Unavailable
