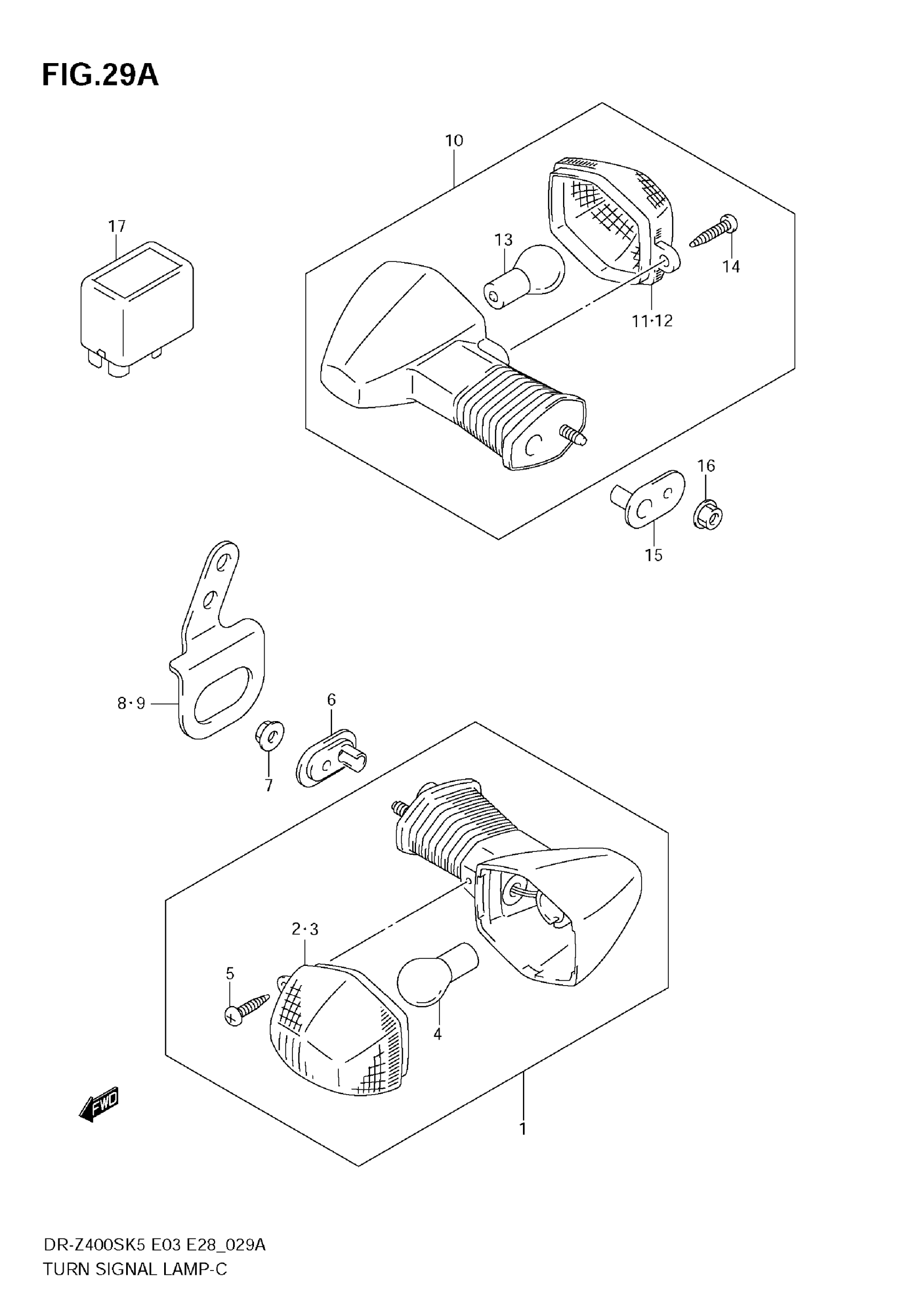

Suzuki DR-Z400S (2009) TURN SIGNAL LAMP (MODEL K6/K7/K8) Diagram

#

Description
Price

1

LAMP ASSY, FRONT TURN RH

35601-16G30

$104.97

1

LAMP ASSY, FRONT TURN LH | Includes Item(s) 2 - 5

35602-16G30

$87.30

2

LENS, RH | AMBER

35612-31F30

$13.90

3

LENS, LH | AMBER

35632-31F30

$14.37

4

BULB (12V,21W) | CLEAR

09471-12045

$3.27

5

SCREW

03242-0416A

Unavailable

6

PLATE,TURNSIGNAL LAMP

35629-31F40

$4.40

7

NUT

08316-1005B

$2.50

8

BRACKET, FRONT RH

35671-29F00

$6.40

9

BRACKET, FRONT LH

35681-29F00

$6.40

10

LAMP ASSY, REAR TURN RH

35603-29F60

$84.07

10

LAMP ASSY, REAR TURN LH | Includes Item(s) 11 - 14

35604-29F60

$81.32

11

LENS, RH | AMBER

35632-31F30

$14.37

12

LENS, LH | AMBER

35612-31F30

$13.90

13

BULB (12V,21W) | CLEAR

09471-12045

$3.27

14

SCREW

03242-0416A

Unavailable

15

PLATE,TURNSIGNAL LAMP

35629-31F40

$4.40

16

NUT

08316-1005B

$2.50

17

RELAY ASSY,TURNSIGNAL LAMP This part replaces 38610-03F00.

38610-03F01

$87.08
