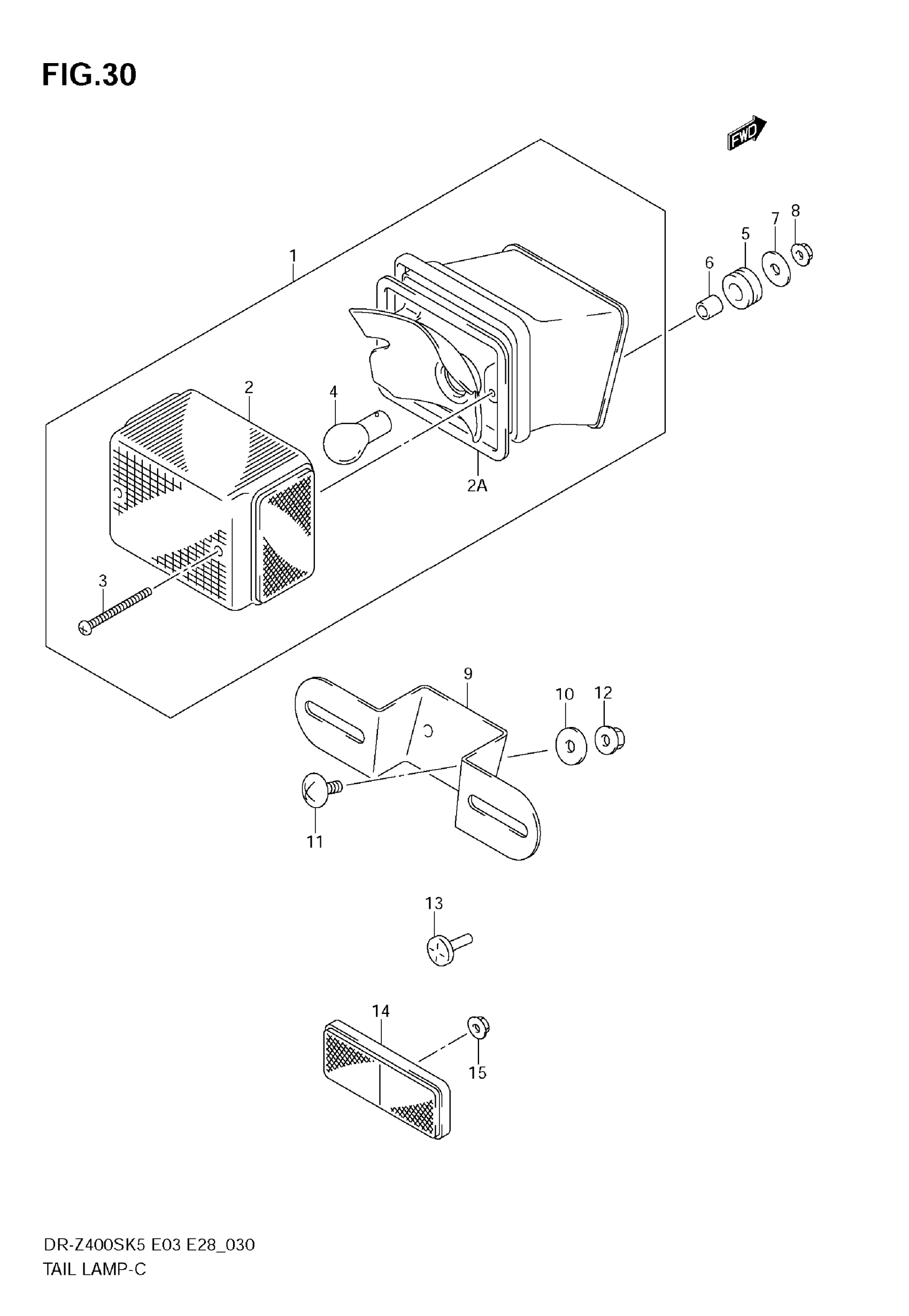

Suzuki DR-Z400S (2009) TAIL LAMP Diagram

#

Description
Price

1

LAMP ASSY, REAR COMBINATION | Includes Item(s) 2 - 4

35710-29F30

$117.49

2

LENS

35712-42A30

$51.24

2A

.GASKET LENS

35713-14D30

$7.88

3

SCREW (4X45)

09125-04501

$3.16

4

BULB (12V,21/5W) This part replaces 09471-12083.

09471-12128

$6.73

5

CUSHION

09320-10501

$6.23

6

SPACER (6.5X10X10)

09180-06310

$1.91

7

.WASHER (6.5X20X1.6)

09160-06088

$1.65

8

NUT

08316-1006B

$2.50

9

BRACKET, LICENSE PLATE

35927-29F10

$16.07

10

.WASHER (6.5X20X1.6)

09160-06088

$1.65

11

SCREW

02142-0612B

$2.05

12

NUT

08316-1006B

$2.50

13

CUSHION

09321-06026

$2.92

14

REFLEX REFLECTOR ASSY, REAR

35970-07F01

$20.88

15

NUT

08316-1005B

$2.50
