Description

Price

1

SPEEDOMETER ASS This part replaces 34100-29F21.

34100-29F22

$1,159.57

1

SPEEDOMETER ASSY (KILO) | E28; Includes Item(s) 2 - 4

34100-29F01

Unavailable

2

BRACKET

34950-29F00

$48.38

3

.CUSHION

34996-43410

$4.35

4

NUT

08316-1005A

$2.19

5

BOLT

01550-0616B

$2.48

6

BOX ASSY, PILOT LAMP

36380-29F00

$287.20

7

SCREW This part replaces 03511-04203.

03511-0420B

$2.46

8

CABLE ASSY SPEEDOMETER

34910-32E00

$41.17

9

GUIDE, METER CABLE NO.1

34938-03D22

$11.38

10

GUIDE METER CABLE NO.2

34938-14D30

$10.63

11

GUIDE, METER CABLE NO.3

34938-29F10

$14.48

12

BOLT, METER CABLE NO.2

09116-06167

$2.19

13

WASHER, METER CABLE NO.1

09160-06109

$1.49

14

WASHER (6.3X16X1) This part replaces 09169-06054.

09169-06053

$1.49

15

SCREW, METER CABLE

02112-0516B

$1.93

16

SCREW, METER CABLE GUIDE NO.1

02142-0616B

$1.78

17

NUT, METER CABLE NO.1

08310-0006B

$2.34

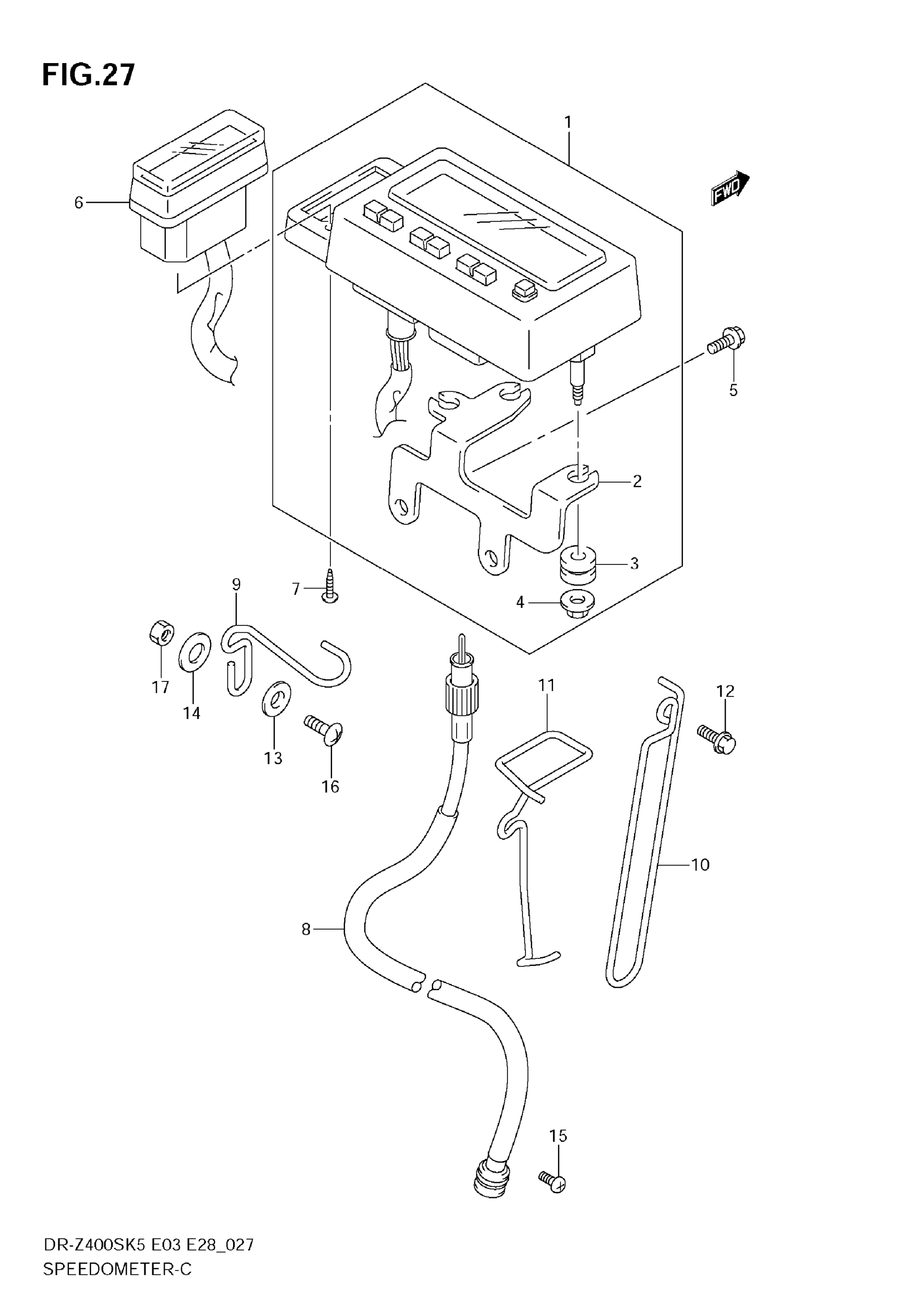

Suzuki DR-Z400S (2009) SPEEDOMETER (MODEL K5) Diagram
