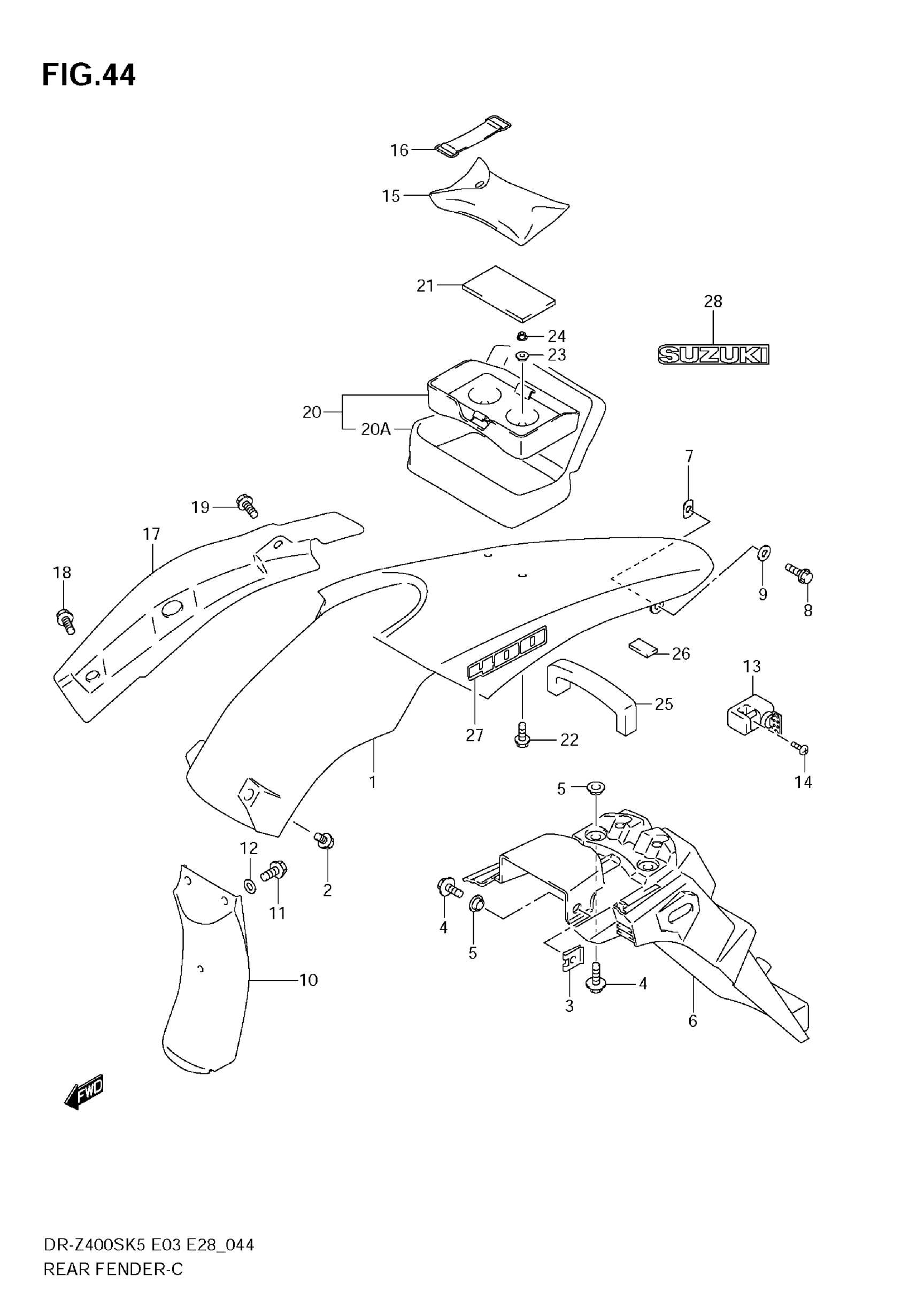

Suzuki DR-Z400S (2009) REAR FENDER Diagram

#

Description
Price

1

FENDER RR (YELLOW) | MODEL K5/K6 FOR YU1 This part replaces 63113-29F41-YU1.

63113-29FA0-YU1

$166.30

1

FENDER, REAR (BLUE) | MODEL K5/K6 FOR N9J

63113-29F41-YJ4

Unavailable

1

FENDER RR (YELLOW) | MODEL K7 FOR YU1

63113-29FA0-YU1

$166.30

1

FENDER, REAR (BLUE) | MODEL K7 FOR N9J MODEL K8 FOR YKY

63113-29FA0-YLW

$166.30

1

FENDER, REAR (BLACK) | MODEL K8 FOR 019

63113-29FA0-019

$149.20

1

FENDER, REAR (WHITE) | MODEL K9

63113-29FA0-30H

$154.93

1

FENDER, REAR (BLACK) | MODEL K9

63113-29FA0-019

$149.20

2

BOLT, FRONT

09113-06001

$2.80

3

PLATE, REAR FENDER

63312-13E01

$5.64

4

BOLT

09116-06115

$2.03

5

WASHER.

09169-06073

$3.18

6

EXTENSION, REAR FENDER

63311-29F30

$108.08

7

NUT COWL

94484-24F00

$3.79

8

BOLT

01550-0512B

$3.12

9

WASHER

09169-05024

$2.14

10

MUDGUARD, RR FENDER FR

63411-29F00

$27.42

11

BOLT

01547-0616B

$2.50

12

WASHER This part replaces 09169-06045.

09169-06055

$2.10

13

LOCK SET HELMET | MODEL K5/K6/K7 This part replaces 95700-44820.

95700-41821

$171.60

13

LOCK SET HELMET | MODEL K8/K9

95700-41821

$171.60

14

SCREW

09139-06089

$3.30

15

TOOL ASSY This part replaces 09800-21042.

09800-21092

$97.82

16

BAND, TOOL

09462-00008

$4.52

17

MUDGUARD, REAR FENDER RH

63114-29F00

$41.41

18

BOLT, LOWER

09111-06081

$3.98

19

BOLT (6X12) This part replaces 63161-43E00.

09111-06107

$2.66

20

BAG ASSY, SEAT TAIL | MODEL K5 This part replaces 94900-29FA0.

94900-29FB1

$188.18

20

BAG, SEAT TAIL | MODEL K6/K7/K8/K9; Includes Item(s) 20A

94900-29FB1

$188.18

20A

BAG | MODEL K6/K7/K8/K9

94910-29FB0

$117.60

21

CUSHION

94915-44E00

$14.27

22

BOLT

01550-0620B

$2.44

23

WASHER

09169-06063

$3.19

24

NUT

09159-06078

$2.74

25

CUSHION, FRONT

47161-29B00

$8.47

26

CUSHION, REAR

33651-37000

$4.28

27

EMBLEM,RR FENDE | MODEL K5 FOR YU1 This part replaces 68171-29F10-GY8.

68171-29F11-GY8

Unavailable

27

EMBLEM,RR FENDE | MODEL K6 FOR YU1 This part replaces 68171-29F10-CFL.

68171-29F11-CFL

Unavailable

27

EMBLEM, "400" | MODEL K5/K6 FOR N9J

68171-29F10-HU8

Unavailable

28

EMBLEM SUZUKI (YELLOW BLACK) | MODEL K5 FOR YU1 This part replaces 68721-13A00-GY8.

68721-13A01-GY8

$14.37

28

EMBLEM,"SUZUKI" | MODEL K6 FOR YU1 This part replaces 68721-13A00-CFL.

68721-13A01-CFL

Unavailable

28

EMBLEM,"SUZUKI" | MODEL K5/K6 FOR N9J This part replaces 68721-13A00-HU8.

68721-13A01-HU8

Unavailable

28

EMBLEM SUZUKI (YELLOW BLACK) | MODEL K7 FOR YU1 This part replaces 68721-13A00-GY8.

68721-13A01-GY8

$14.37

28

EMBLEM, "SUZUKI" | MODEL K7 FOR N9J

68721-13A00-DVJ

Unavailable

28

EMBLEM SUZUKI (SILVER BLACK) | MODEL K8 FOR 019 This part replaces 68721-13A00-CT5.

68721-13A01-CT5

$10.70

28

EMBLEM, "SUZUKI" | MODEL K8 FOR YKY

68721-13A00-ELC

Unavailable

28

EMBLEM,"SUZUKI" | MODEL K9 FOR 30H This part replaces 68721-13A00-FH7.

68721-13A01-FH7

$10.92

28

EMBLEM SUZUKI (SILVER BLACK) | MODEL K9 FOR 019 This part replaces 68721-13A00-CT5.

68721-13A01-CT5

$10.70
