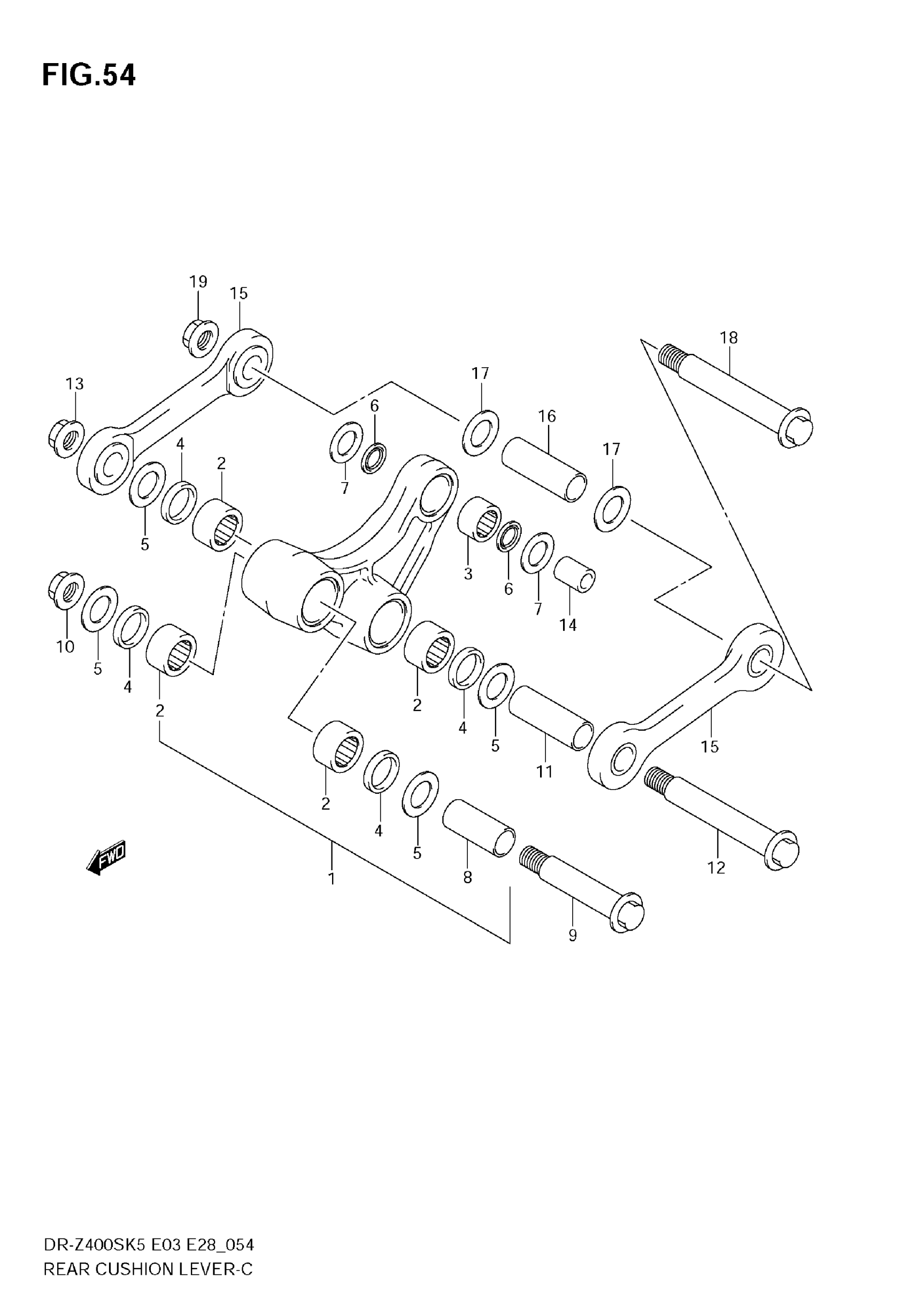

Suzuki DR-Z400S (2009) REAR CUSHION LEVER Diagram

#

Description
Price

1

LEVER SET, REAR CUSHION | Includes Item(s) 2 - 3

62600-37830

Unavailable

2

BEARING (20X27X15)

09263-20086

$16.47

3

BEARING (16X22X12)

09263-16033

$20.26

4

SEAL, DUST (19X27X4)

62624-14500

$6.01

5

THRUST WASHER (20X32.5X1.6)

62647-37E00

$4.34

6

OIL SEAL (16X22X2.5)

09284-16005

$6.95

7

WASHER, THRUST LVR CUSHION RR

62685-37E00

$4.43

8

SPACER, FRONT (15X20X45)

62317-37E10

$24.77

9

BOLT, FRONT (12X76)

62658-37E01

$15.95

10

NUT

09159-12056

$7.37

11

SPACER, CENTER (15X20X57.4)

62646-37E10

$24.77

12

BOLT, CENTER (12X100)

62621-37E01

$22.92

13

NUT

09159-12056

$7.37

14

SPACER, RR CUSHION LEVER RR

62684-36E10

$15.42

15

ROD, REAR CUSHION LEVER

62640-37E11

$181.73

16

SPACER, ROD (15X20X57.4)

62646-37E10

$24.77

17

THRUST WASHER (20X32.5X1.6)

62647-37E00

$4.34

18

BOLT, ROD (12X100)

62621-37E01

$22.92

19

NUT

09159-12056

$7.37
