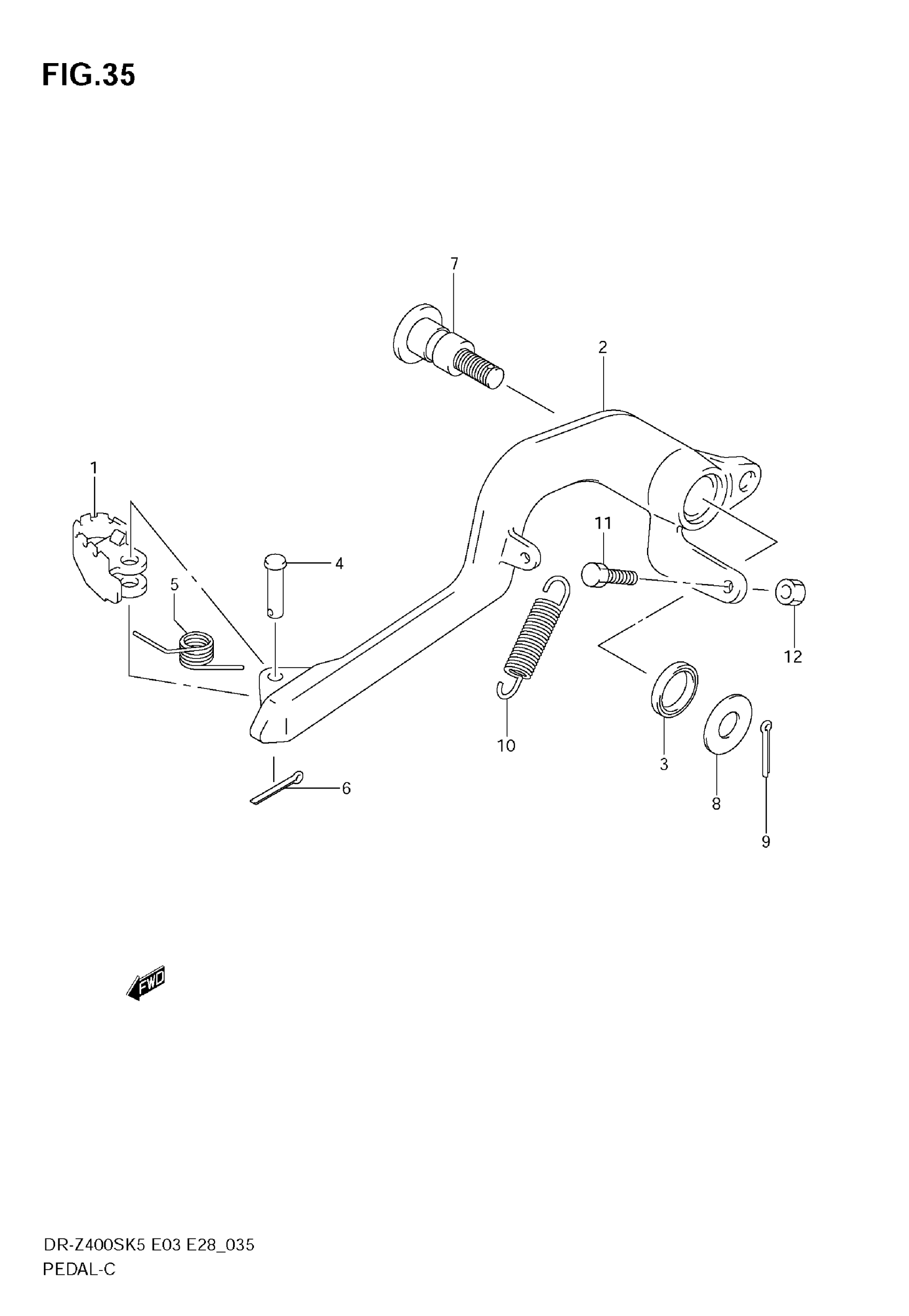

Suzuki DR-Z400S (2009) REAR BRAKE Diagram

#

Description
Price

1

PEDAL, BRAKE

43110-43D00

$15.78

2

ARM, BRAKE PEDAL | Includes Item(s) 3

43120-29F10

$251.08

3

OIL SEAL

09284-15006

$3.55

4

PIN

09200-06062

$2.20

5

SPRING

09444-11006

$3.18

6

COTTER PIN

04111-2015A

$1.49

7

SHAFT, BRAKE PEDAL

43142-27C00

$23.07

8

WASHER

08211-10261

$2.03

9

COTTER PIN

04111-2020A

$1.49

10

SPRING, PEDAL RETURN

09443-11033

$4.50

11

BOLT, BRAKE SWITCH

09104-06004

$4.25

12

NUT

08310-0006B

$2.34
