Description

Price

1

GASKET SET | OPT; Includes Item(s) 2 - 16 This part replaces 11401-29882.

11401-29883

$142.60

2

GASKET, CYLINDER HEAD | NOT SHOWN

11141-29F01

$41.48

3

GASKET, CYLINDER HEAD COVER | NOT SHOWN

11173-29F00

$34.73

4

GASKET, CYLINDER | NOT SHOWN

11241-29F11

$23.37

5

GASKET, CLUTCH COVER | NOT SHOWN

11482-29F00

$17.66

6

GASKET, MAGNETO COVER | NOT SHOWN

11483-29F00

$13.36

7

O RING, CLUTCH COVER OUTER | NOT SHOWN

11484-29F00

$22.56

8

.GASKET,TENSIONER ADJUSTER | NOT SHOWN

12837-24A10

$3.25

9

GASKET, EXHAUST PIPE | NOT SHOWN

14181-29E02

$16.39

10

WASHER | NOT SHOWN

09161-11008

$4.49

11

O RING (D:2.4,ID:11.0) | NOT SHOWN

09280-11005

$4.36

12

O RING (D:1.9,ID:13.0) | NOT SHOWN

09280-13004

$2.17

13

O RING (D:3.1,ID:16.8) | NOT SHOWN

09280-17003

$1.65

14

.O-RING (D:3.1,ID:32.7) | NOT SHOWN

09280-33004

$2.23

15

O RING (D:2.4,ID:52.6) | NOT SHOWN

09280-54001

$3.76

16

O RING (D:2.6,ID:69.6) | NOT SHOWN

09280-71004

$23.94

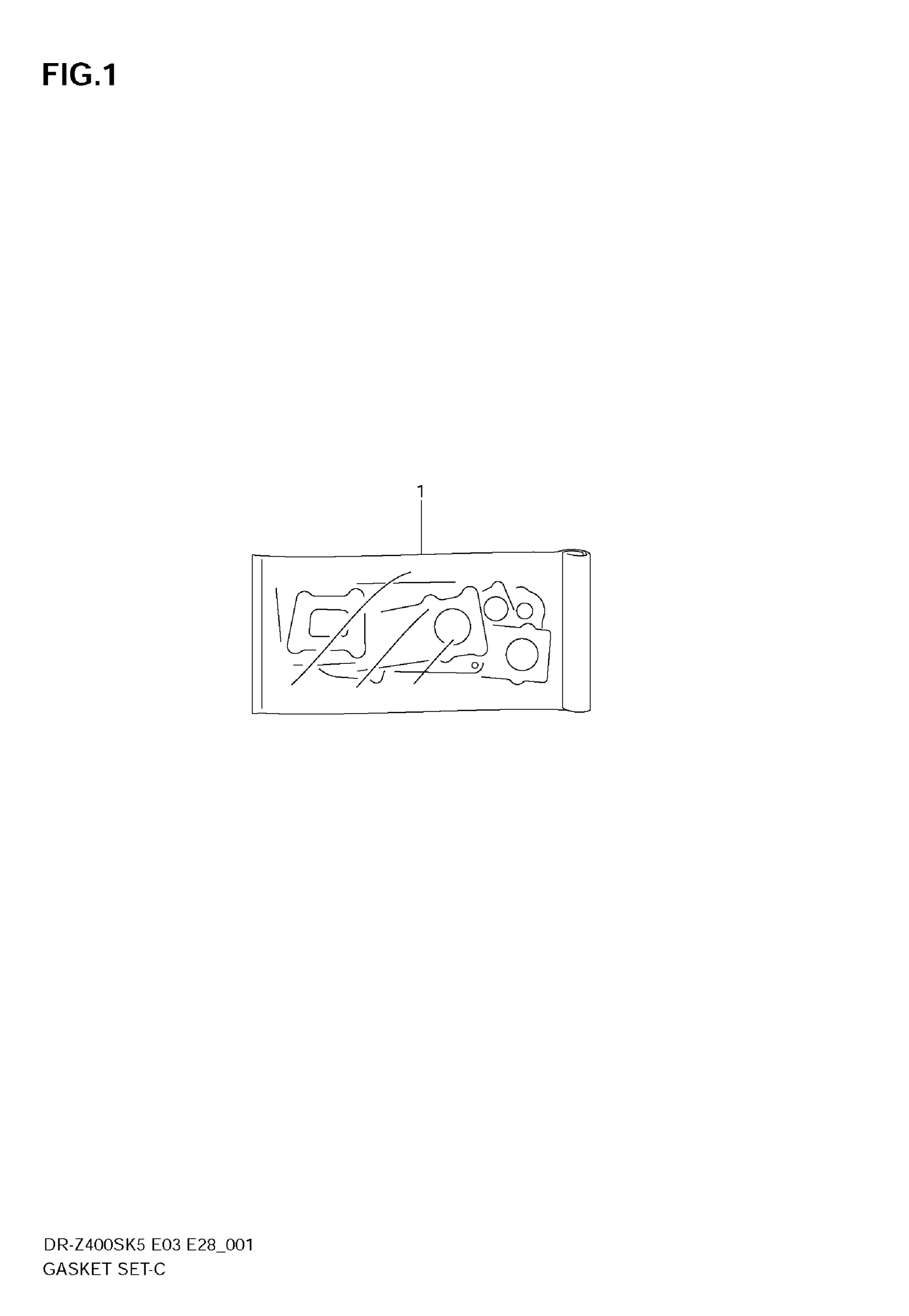

Suzuki DR-Z400S (2009) GASKET SET Diagram
