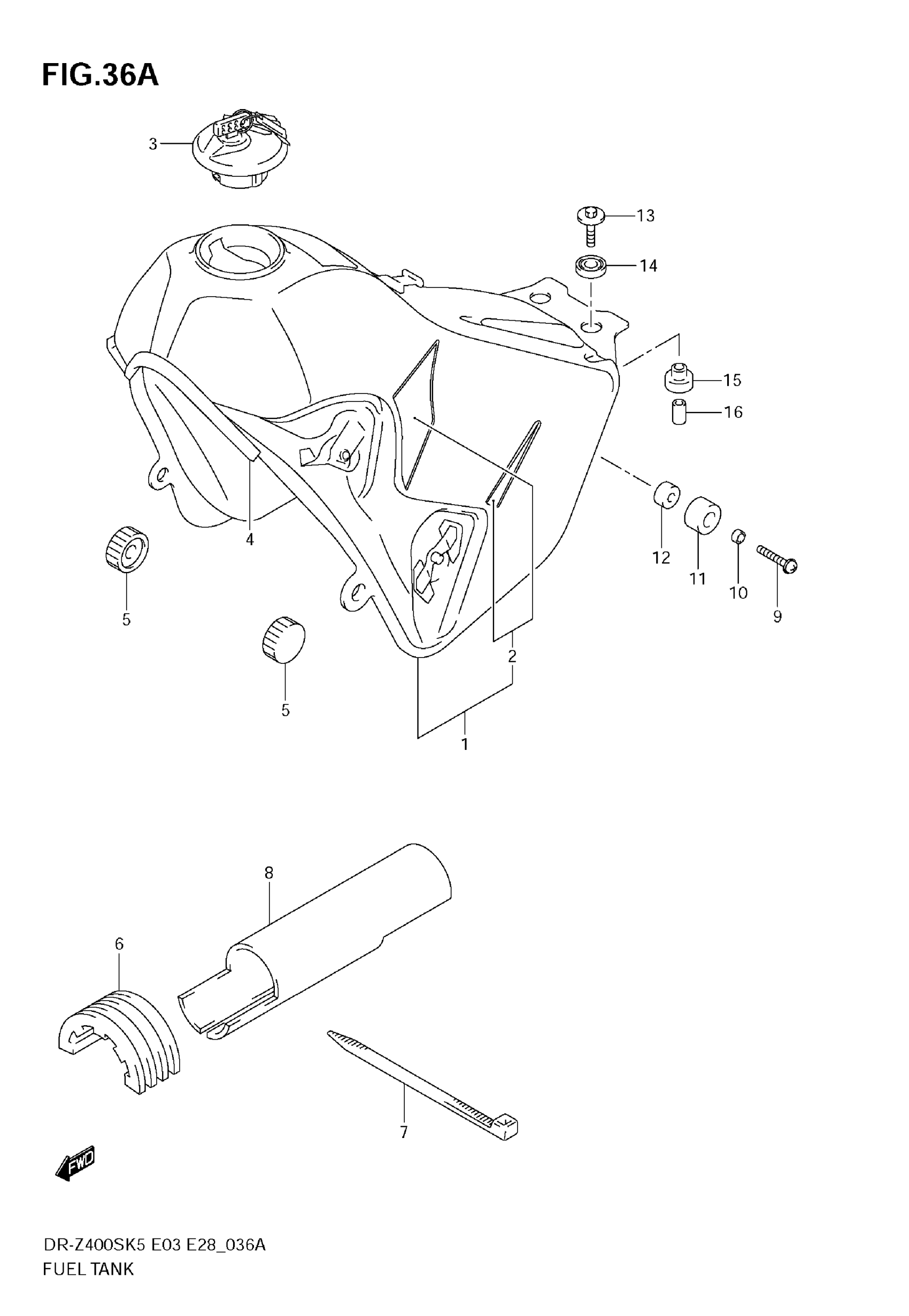

Suzuki DR-Z400S (2009) FUEL TANK (MODEL K9) Diagram

#

Description
Price

1

TANK ASSY, FUEL (BLACK) | E3,E28

49200-29F30-019

Unavailable

1

TANK ASSY, FUEL (WHITE) | E3,E28

49200-29F30-30H

Unavailable

1

TANK ASSY, FUEL (BLACK) | E3,E33

49200-29F40-019

Unavailable

1

TANK ASSY, FUEL (WHITE) | E3,E33; Includes Item(s) 2 - 2

49200-29F40-30H

Unavailable

2

TAPE SET | FOR 019

68120-29F20-GFG

Unavailable

2

TAPE SET | FOR 30H

68120-29F20-GFH

Unavailable

3

CAP SET FUEL TANK FILLER | E3,E28 This part replaces 44200-29820.

44200-29821

$140.27

3

CAP SET,FUEL TA | E33 This part replaces 44200-05820.

44200-05822

$74.48

4

MOLDING, FRONT

68241-04X50-300

$7.32

5

CUSHION, FRONT

09329-10016

$3.10

6

CUSHION, UPPER

44541-29F00

$34.55

7

CLAMP

09407-30402

$4.11

8

SHIELD, FUEL TANK

44194-29F00

Unavailable

9

SCREW

02112-1630B

$3.08

10

SPACER

09180-06215

$7.95

11

CUSHION, SIDE

45149-14D00

$6.63

12

SPACER

09180-06306

$2.03

13

BOLT, REAR

09116-06214

$2.50

14

CUSHION, UPPER

09320-14022

$3.63

15

CUSHION (9X24X18) This part replaces 09320-10020.

09320-10071

$2.60

16

SPACER

09180-06271

$2.35
