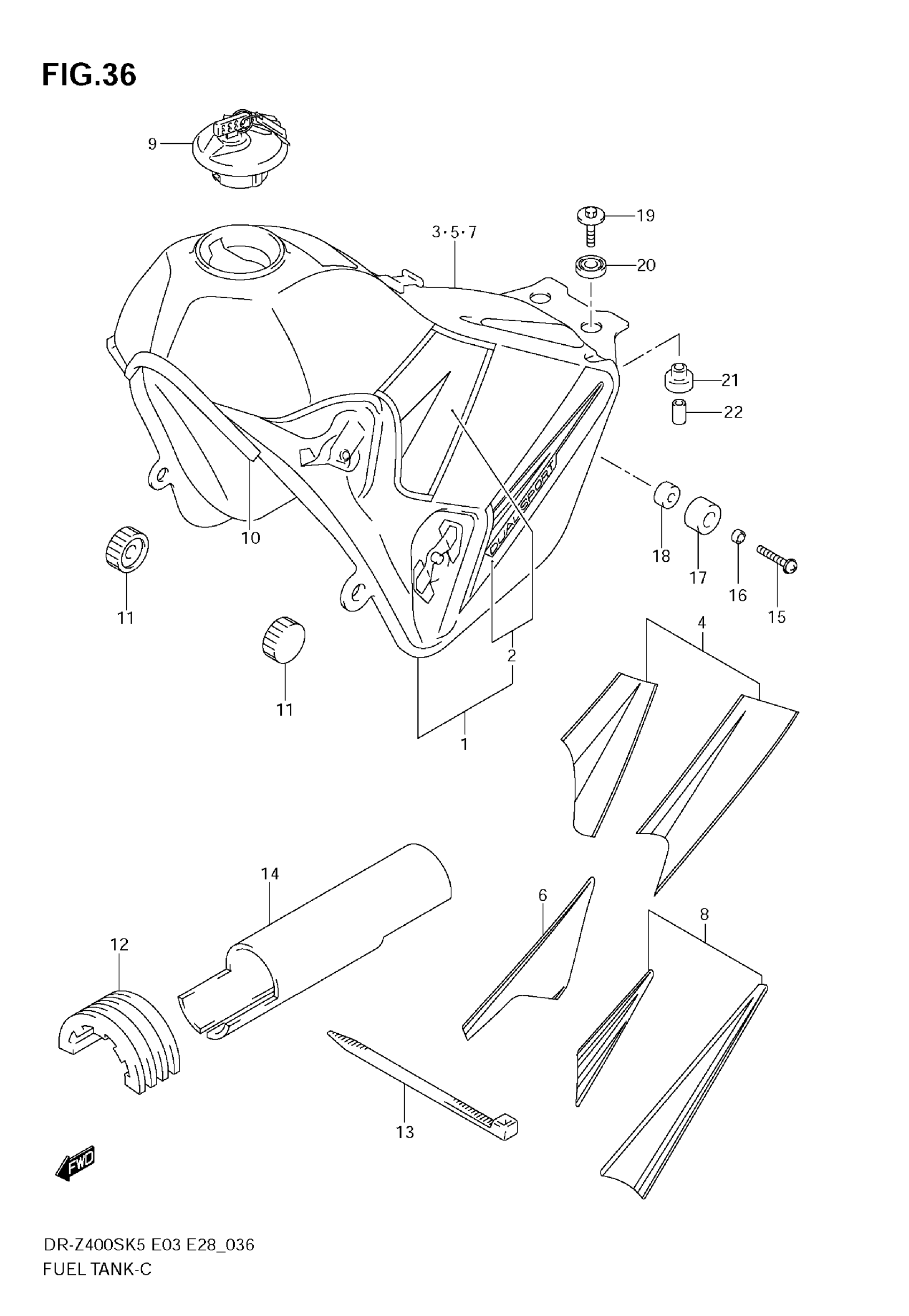

Suzuki DR-Z400S (2009) FUEL TANK (MODEL K5/K6/K7/K8) Diagram

#

Description
Price

1

TANK COMP,FUEL | K5 E3,E28 FOR YU1 This part replaces 44100-29FG0-YU1.

44110-29F02-13L

$731.78

1

TANK ASSY, FUEL (BLUE) | K5 E3,E28 FOR N9J

44100-29FG0-YC2

Unavailable

1

TANK ASSY, FUEL (YELLOW) | K5 E33 FOR YU1

44100-29FH0-YU1

Unavailable

1

TANK ASSY, FUEL (BLUE) | K5 E33 FOR N9J; Includes Item(s) 2 - 2

44100-29FH0-YC2

Unavailable

2

TAPE SET | K5 FOR YU1

68110-29FB0-AZR

Unavailable

2

TAPE SET | K5 FOR YC2

68110-29FB0-BEV

Unavailable

3

TANK ASSY, FUEL (YELLOW) | K6 E3,E28 FOR YU1

49100-29F50-YU1

Unavailable

3

TANK ASSY, FUEL (BLUE) | K6 E3,E28 FOR N9J

49100-29F50-YC2

Unavailable

3

TANK ASSY, FUEL (YELLOW) | K6 E33 FOR YU1

49100-29F60-YU1

Unavailable

3

TANK ASSY, FUEL (BLUE) | K6 E33 FOR N9J; Includes Item(s) 4 - 4

49100-29F60-YC2

Unavailable

4

TAPE SET | K6 FOR YU1

68110-29FE0-CFK

Unavailable

4

TAPE SET | K6 FOR YC2

68110-29FE0-CMF

Unavailable

5

TANK ASSY, FUEL (YELLOW) | K7 E3,E28 FOR YU1

49100-29FC0-YU1

Unavailable

5

TANK ASSY, FUEL (BLUE) | K7 E3,E28 FOR N9J

49100-29FC0-YC2

Unavailable

5

TANK ASSY, FUEL (YELLOW) | K7 E33 FOR YU1

49100-29FD0-YU1

Unavailable

5

TANK ASSY, FUEL (BLUE) | K7 E33 FOR N9J; Includes Item(s) 6 - 6

49100-29FD0-YC2

Unavailable

6

TAPE SET | K7 FOR YU1

68110-29FH0-DUN

Unavailable

6

TAPE SET | K7 FOR YC2

68110-29FH0-DUP

Unavailable

7

TANK ASSY, FUEL (BLUE) | K8 E3,E28 FOR YKY

49100-29FL0-YKY

Unavailable

7

TANK ASSY, FUEL (BLACK) | K8 E3,E28 FOR 019

49100-29FL0-019

Unavailable

7

TANK ASSY, FUEL (BLUE) | K8 E33 FOR YKY

49100-29FM0-YKY

Unavailable

7

TANK ASSY, FUEL (BLACK) | K8 E33 FOR 019; Includes Item(s) 8 - 8

49100-29FM0-019

Unavailable

8

TAPE SET | K8 FOR YKY

68110-29FU0-EVJ

Unavailable

8

TAPE SET | K8 FOR 019

68110-29FU0-EVE

Unavailable

9

CAP SET FUEL TANK FILLER | E3,E28 This part replaces 44200-29820.

44200-29821

$140.27

9

CAP SET,FUEL TA | E33 This part replaces 44200-05820.

44200-05822

$74.48

10

MOLDING, FRONT

68241-04X50-00B

$27.30

11

CUSHION, FRONT

09329-10016

$3.10

12

CUSHION, UPPER

44541-29F00

$34.55

13

CLAMP

09407-30402

$4.11

14

SHIELD, FUEL TANK

44194-29F00

Unavailable

15

SCREW This part replaces 02112-16303.

02112-1630B

$3.08

16

SPACER

09180-06215

$7.95

17

CUSHION, SIDE

45149-14D00

$6.63

18

SPACER

09180-06306

$2.03

19

BOLT, REAR

09116-06172

$2.50

20

CUSHION, UPPER

09320-14022

$3.63

21

CUSHION (9X24X18) This part replaces 09320-10020.

09320-10071

$2.60

22

SPACER

09180-06271

$2.35
