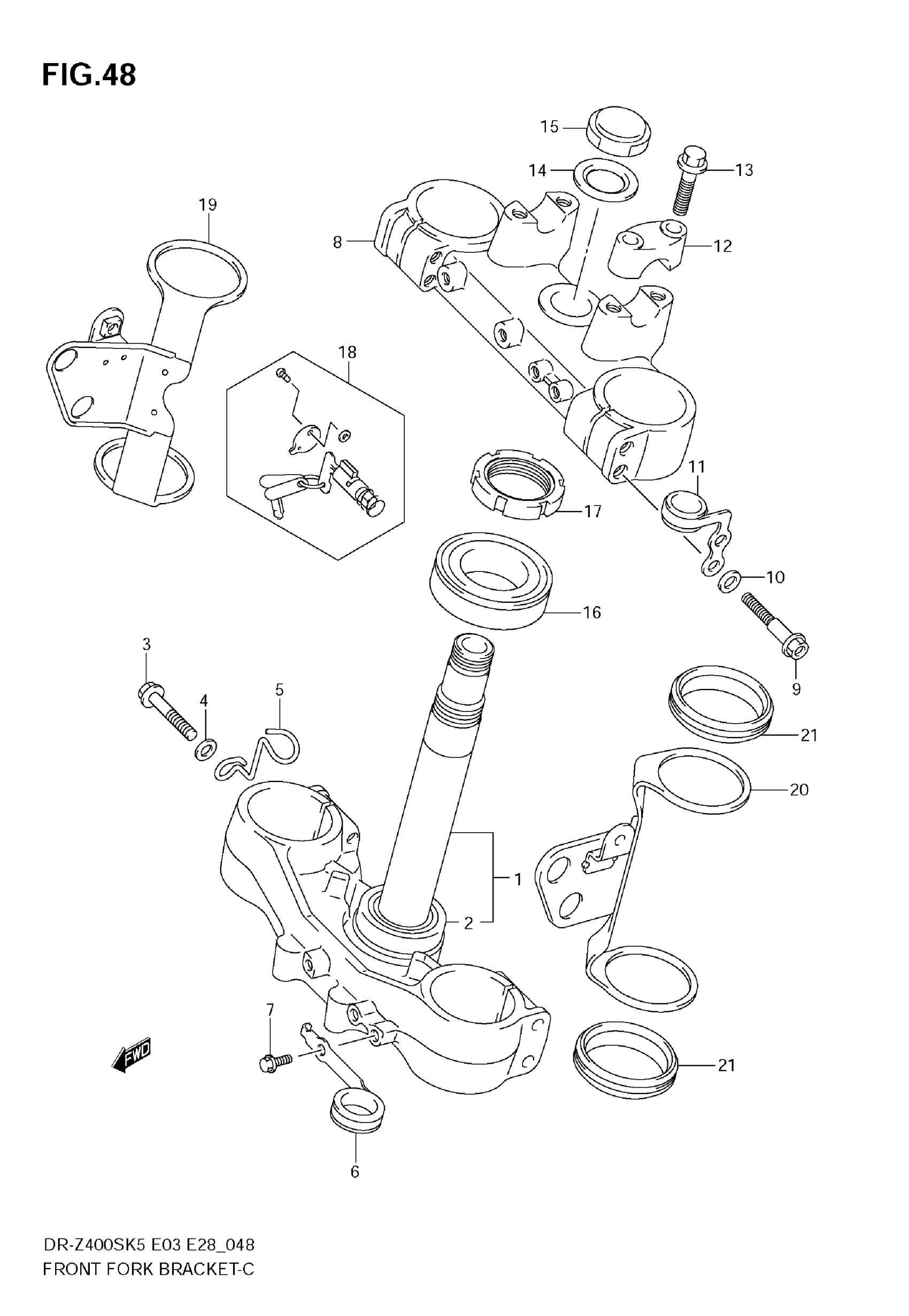

Suzuki DR-Z400S (2009) FRONT FORK BRACKET Diagram

#

Description
Price

1

BRACKET FR FORK UNDER | Includes Item(s) 2 This part replaces 51410-29F20.

51410-29F21

$592.52

2

.BEARING (30X52X16) This part replaces 09265-30014.

09265-30035

$46.72

3

BOLT, UNDER

51328-36E00

$7.51

4

WASHER

51316-36E00

$3.71

5

GUIDE, CABLE

34938-29E01

$11.83

6

GUIDE, HOSE

51453-29F20

$38.45

7

BOLT

58627-27C40

$3.77

8

BRACKET, FRONT FORK UPPER

51311-29F00

$389.20

9

BOLT, UPPER

51328-29F20

$10.73

10

WASHER

51316-36E00

$3.71

11

GUIDE, CABLE

51288-29F20

$38.45

12

HOLDER, HANDLEBAR

56211-29F00

$30.47

13

BOLT,HANDLE HOLDER (8X35)

51321-27C40

$4.96

14

WASHER,STEM HEAD

51356-29E00

$15.29

15

NUT | MODEL K5/K6/K7/K8

51353-29F20

Unavailable

15

NUT | MODEL K9

51353-27G00

$33.80

16

.BEARING (30X52X16) This part replaces 09265-30014.

09265-30035

$46.72

17

NUT STEERING

51631-28E00

$28.88

18

LOCK ASSY,STEER This part replaces 51900-30901.

51900-309V0

$87.06

19

BRACKET COMP, HEADLAMP HSG RH

51530-29F00

$61.13

20

BRACKET COMP, HEADLAMP HSG LH

51540-29F00

$61.13

21

DAMPER, HEADLAMP HSG BRACKET

51553-29F00

$8.60
