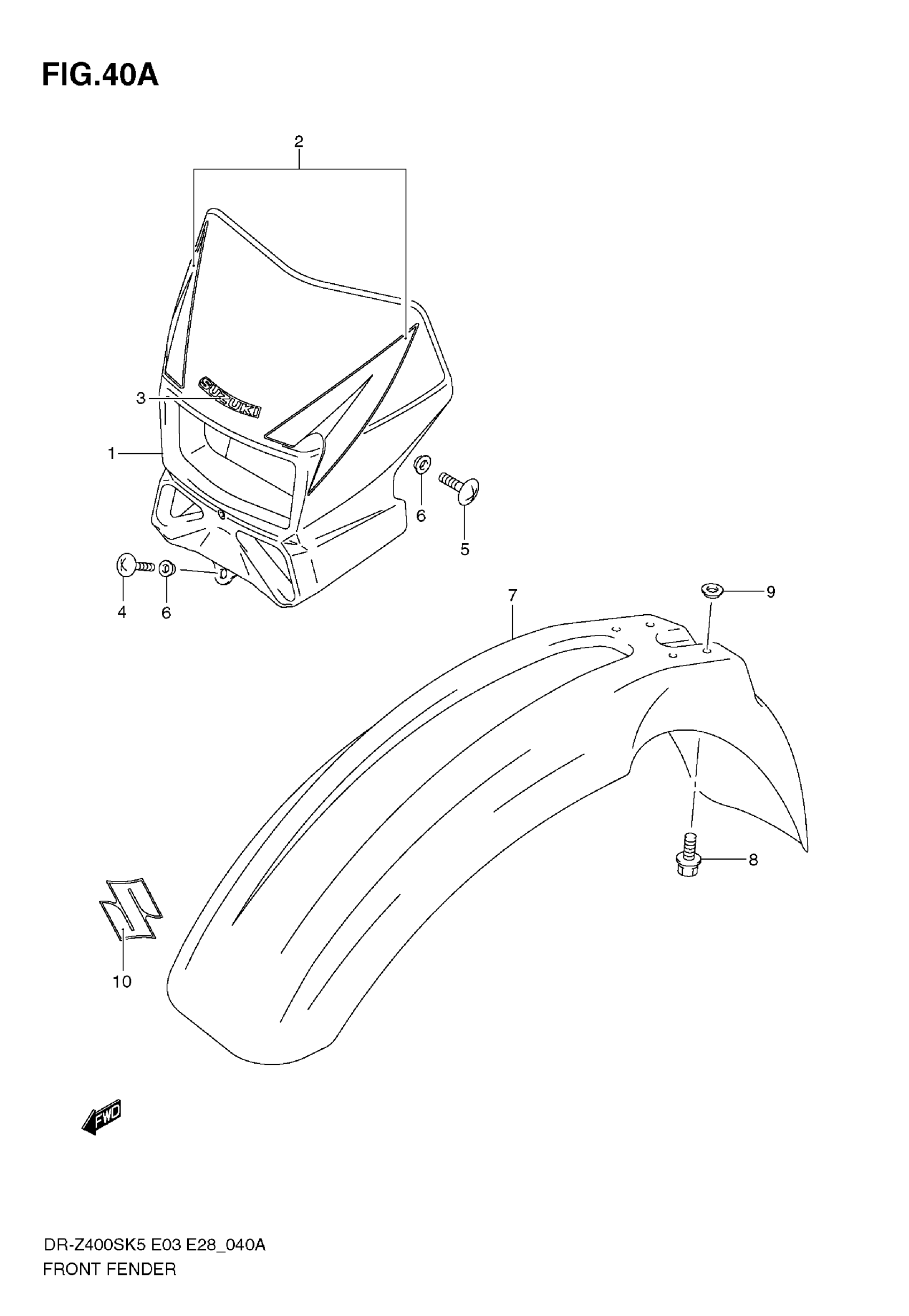

Suzuki DR-Z400S (2009) FRONT FENDER (MODEL K9) Diagram

COVER, HEADLAMP (BLACK)

51811-29F50-019

$96.47

COVER HEADLAMP (WHITE)

51811-29F50-30H

$116.87

TAPE SET | FOR 019

68720-29FD0-GFN

Unavailable

TAPE SET | FOR 30H

68720-29FD0-GFM

Unavailable

EMBLEM,"SUZUKI" This part replaces 68281-01H00-YD8.

68281-01H01-YD8

$11.35

SCREW, LOWER

02142-0512B

$2.05

SCREW, SIDE

02142-0612B

$2.05

WASHER

09169-06071

$2.50

FENDER FRONT (BLACK)

53111-27C22-019

$160.55

FENDER, FRONT (WHITE)

53111-27C22-30H

$161.33

BOLT

09116-06170

$2.50

WASHER

09169-06073

$3.42

EMBLEM,S(SILVER This part replaces 68151-07G10-YD8.

68151-07G11-YD8

$11.60
