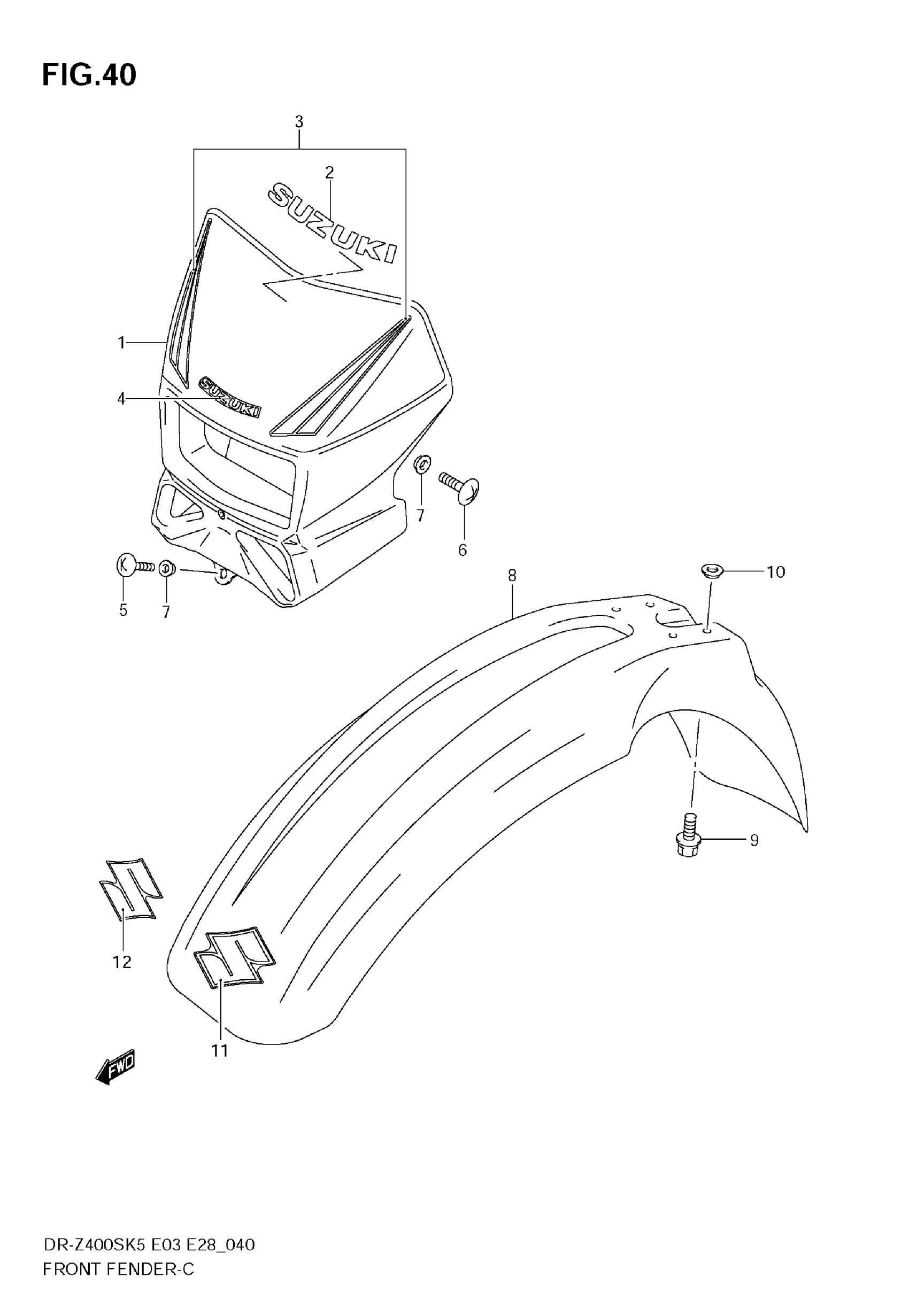

Suzuki DR-Z400S (2009) FRONT FENDER (MODEL K5/K6/K7/K8) Diagram

#

Description
Price

1

COVER HEADLAMP (WHITE) | MODEL K5 This part replaces 51811-29F10-30H.

51811-29F50-30H

$126.40

1

COVER, HEADLAMP (YELLOW) | MODEL K6 FOR YU1 This part replaces 51811-29F10-YU1.

51811-29F50-YU1

$126.40

1

COVER, HEADLAMP (BLUE) | MODEL K6 FOR N9J

51811-29F10-YJ4

$136.40

1

COVER, HEADLAMP (YELLOW) | MODEL K7 FOR YU1

51811-29F50-YU1

$126.40

1

COVER, HEADLAMP (BLUE) | MODEL K7 FOR N9J MODEL K8 FOR YKY

51811-29F50-YLW

$136.40

1

COVER, HEADLAMP (BLACK) | MODEL K8 FOR 019

51811-29F50-019

$87.04

2

TAPE | MODEL K6 FOR YU1

68725-29F30-CLM

Unavailable

2

TAPE | MODEL K6 FOR N9J MODEL K7

68725-29F30-8YM

$86.01

3

TAPE SET | MODEL K8 FOR 019

68720-29F70-CNS

Unavailable

3

TAPE SET | MODEL K8 FOR YKY

68720-29F70-EVN

Unavailable

4

EMBLEM,"SUZUKI" | MODEL K8 This part replaces 68281-01H00-YD8.

68281-01H01-YD8

$12.82

5

.SCREW This part replaces 02142-05123.

02142-0512A

$1.37

6

SCREW This part replaces 02142-06123.

02142-0612A

$1.37

7

WASHER

09169-06033

$1.57

8

FENDER FR (YELLOW) | MODEL K5 FOR YU1,N9J MODEL K6 FOR YU1

53111-27C22-YU1

$155.02

8

FENDER, FRONT (BLUE) | MODEL K6 FOR N9J

53111-27C22-YJ4

Unavailable

8

FENDER FR (YELLOW) | MODEL K7 FOR YU1 This part replaces 53111-27CC0-YU1.

53111-27C22-YU1

$155.02

8

FENDER, FRONT (BLUE) | MODEL K7 FOR N9J This part replaces 53111-27CC0-YLW.

53111-27C22-YLW

Unavailable

8

FENDER FRONT (BLACK) | MODEL K8 FOR 019

53111-27C22-019

$180.33

8

FENDER, FRONT (BLUE) | MODEL K8 FOR YKY

53111-27C22-YLW

Unavailable

9

BOLT

09116-06170

$2.50

10

WASHER

09169-06073

$3.08

11

EMBLEM "S" | MODEL K5 FOR YU1

68151-37F00-AZT

$30.92

11

EMBLEM "S" | MODEL K5 FOR N9J

68151-37F00-BEU

Unavailable

12

EMLBEM "S" | MODEL K6/K7 This part replaces 68151-07G10-YCF.

68151-07G11-YCF

$18.00

12

EMBLEM,S(SILVER | MODEL K8 This part replaces 68151-07G10-YD8.

68151-07G11-YD8

$13.10
