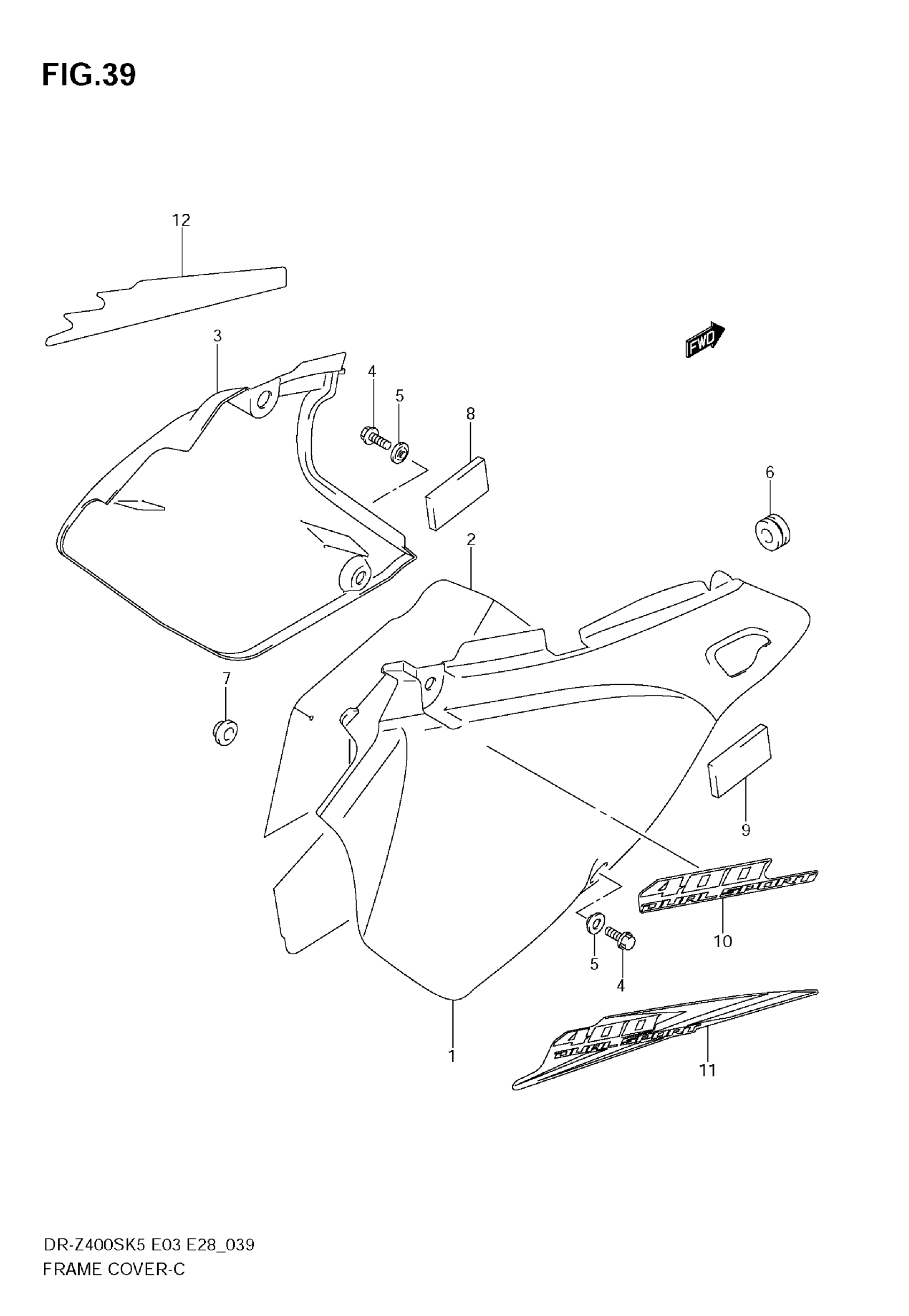

Suzuki DR-Z400S (2009) FRAME COVER (MODEL K5/K6/K7/K8) Diagram

#

Description
Price

1

COVER, FRAME RH (WHITE) | MODEL K5/K6 This part replaces 47111-29F10-30H.

47111-29FC0-30H

$57.40

1

COVER, FRAME RH (WHITE) | MODEL K7/K8

47111-29FC0-30H

$57.40

2

SHIELD, FRAME COVER RH

47166-29F00

$82.92

3

COVER, FRAME LH (WHITE) | K5/K6 E3,E28 This part replaces 47211-29F10-30H.

47211-29FA0-30H

$57.40

3

COVER, FRAME LH (WHITE) | K7/K8 E3,E28

47211-29FA0-30H

$57.40

3

COVER, FRAME LH (WHITE) | K5/K6 E33 This part replaces 47211-29F30-30H.

47211-29FC0-30H

$82.75

3

COVER, FRAME LH (WHITE) | K7/K8 E33

47211-29FC0-30H

$82.75

4

BOLT | MODEL K5 This part replaces 01550-06163.

01550-0616A

$1.97

4

BOLT (6X12) | MODEL K6/K7/K8

09103-06273

$2.26

5

WASHER | MODEL K5

09169-06041

$2.20

5

WASHER | MODEL K6/K7/K8 This part replaces 09169-06028.

09169-06041

$2.20

6

CUSHION, RH

09320-06504

$4.96

7

CUSHION, MUFFLER

09321-10018

$5.45

8

CUSHION, LH COVER FRONT

47161-29F00

$6.11

9

CUSHION, RH COVER FRONT

71762-65G10

$8.28

10

EMBLEM | MODEL K7

68131-29F20-DVN

$16.15

11

EMBLEM RH | MODEL K8 FOR 019

68135-29F90-EVH

Unavailable

11

EMBLEM RH | MODEL K8 FOR YKY

68135-29F90-EVM

Unavailable

12

EMBLEM LH | MODEL K8 FOR 019

68145-29F90-EVH

Unavailable

12

EMBLEM LH | MODEL K8 FOR YKY

68145-29F90-EVM

Unavailable
