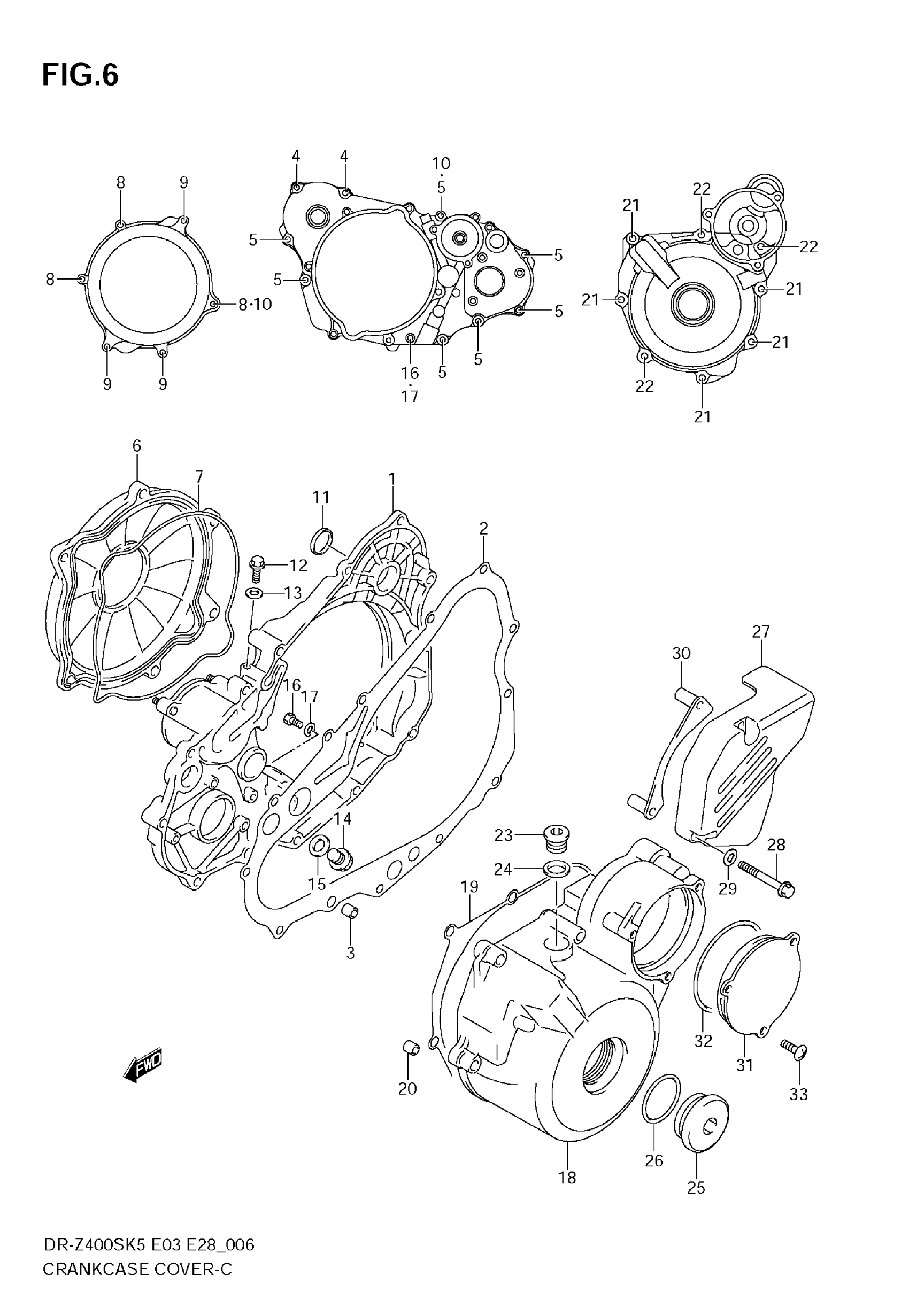

Suzuki DR-Z400S (2009) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH INNER

11341-29F50

$257.28

2

GASKET, CLUTCH COVER

11482-29F00

$17.66

3

PIN

04211-09149

$1.65

4

..BOLT | MODEL K5/K6

01547-0620B

$2.45

4

BOLT | MODEL K7/K8/K9

01547-0620A

$2.03

5

BOLT | MODEL K5/K6

01547-0630B

$2.73

5

BOLT | MODEL K7/K8/K9

01547-0630A

$2.32

6

COVER, CLUTCH OUTER

11371-29F50

$156.49

7

O RING, CLUTCH OUTER COVER

11484-29F00

$22.56

8

..BOLT | MODEL K5/K6

01547-0620B

$2.45

8

BOLT, OUTER COVER | MODEL K7/K8/K9

01547-0620A

$2.03

9

BOLT, OUTER COVER | MODEL K5/K6

01547-0655B

$2.75

9

BOLT, OUTER COVER | MODEL K7/K8/K9

01547-0655A

$2.42

10

GASKET

09168-06023

$2.35

11

PLUG, CLUTCH COVER KICK

11342-15D00

$10.07

12

PLUG, OIL GALLERY | MODEL K5/K6

01547-0612B

$1.49

12

PLUG, OIL GALLERY | MODEL K7/K8/K9

01547-0612A

$2.03

13

GASKET

09168-06023

$2.35

14

PLUG, OIL GALLERY (12X10)

09247-12006

$2.82

15

GASKET (12.1X16.2X1.2)

09168-12002

$1.59

16

BOLT, OIL LEVEL | MODEL K5/K6

01550-0610B

$2.42

16

BOLT, OIL LEVEL | MODEL K7/K8/K9

01550-0610A

$1.97

17

GASKET (6.2X11X1.2)

09168-06004

$1.49

18

COVER, MAGNETO

11351-29F60

$245.19

19

GASKET, MAGNETO COVER

11483-29F00

$13.36

20

PIN

04211-09149

$1.65

21

BOLT | MODEL K5/K6

01547-0630B

$2.73

21

BOLT | MODEL K7/K8/K9

01547-0630A

$2.32

22

BOLT | MODEL K5/K6

01547-0640B

$2.75

22

BOLT | MODEL K7/K8/K9

01547-0640A

$2.32

23

PLUG, SHAFT This part replaces 09248-14012.

09248-14011

$2.98

24

GASKET (13.8X18.8X0.4)

09168-14002

$2.26

25

PLUG, CRANK HOLE

09259-36016-20H

$13.80

26

.O-RING (D:3.1,ID:32.7)

09280-33004

$2.23

27

COVER, ENGINE SPROCKET

11360-29F50

$76.30

28

BOLT | MODEL K5/K6

01547-0650B

$2.75

28

BOLT | MODEL K7/K8/K9

01547-0650A

$2.46

29

WASHER (6.5X14X2.0)

09160-06126

$1.91

30

PLATE, FRONT CHAIN GUIDE

27640-29F11

$15.67

31

COVER, STARTER IDLE GEAR

11352-29F50

$36.79

32

O RING (D:2.6,ID:69.6)

09280-71004

$23.94

33

SCREW | MODEL K5/K6

02142-0616B

$1.78

33

SCREW | MODEL K7/K8/K9

02142-0616A

$1.49
