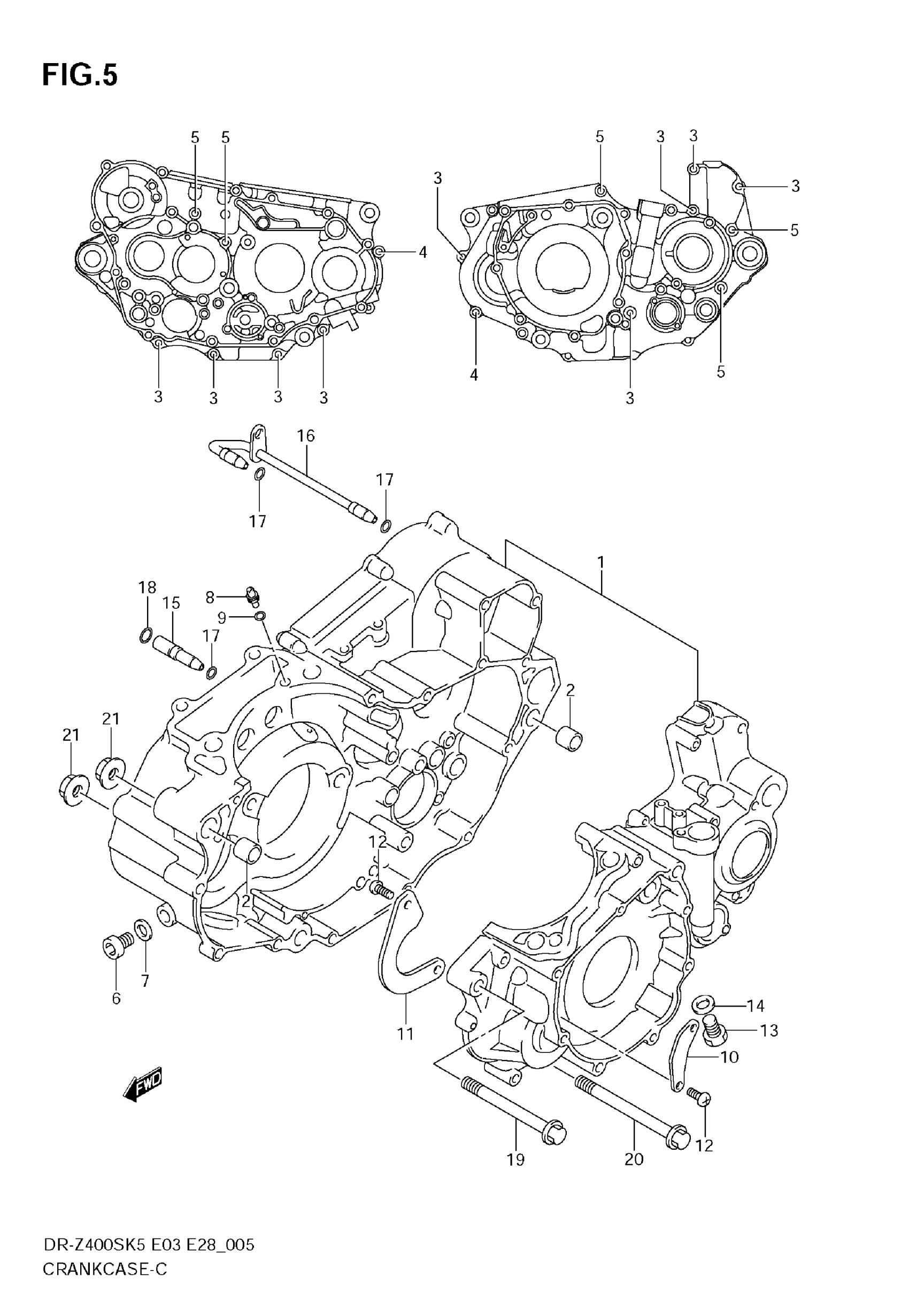

Suzuki DR-Z400S (2009) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET | MODEL K5 This part replaces 11301-29851.

11301-29854

$728.75

1

CRANKCASE SET | MODEL K6 This part replaces 11301-29852.

11301-29854

$728.75

1

CRANKCASE SET | MODEL K7/K8/K9; Includes Item(s) 2 - 12 This part replaces 11301-29853.

11301-29854

$728.75

2

PIN

04211-13189

$2.19

3

BOLT | MODEL K5/K6

01547-0640B

$2.75

3

BOLT | MODEL K7/K8/K9

01547-0640A

$2.32

4

BOLT | MODEL K5/K6

01547-0655B

$2.75

4

BOLT | MODEL K7/K8/K9

01547-0655A

$2.42

5

BOLT | MODEL K5/K6

01547-0670B

$3.29

5

BOLT | MODEL K7/K8/K9

01547-0670A

$2.92

6

PLUG, OIL GALLERY

09248-10010

$4.17

7

GASKET

09168-10002

$2.13

8

JET, OIL GALLERY CYLINDER

09493-80005

$16.25

9

O RING

09280-04004

$1.91

10

SEPARATOR, OIL NO.1

11323-29F00

$3.22

11

SEPARATOR, OIL NO.2

11324-29F00

$5.17

12

SCREW, SEPARATOR

09125-06110

$2.12

13

PLUG, OIL DRAIN

09247-12011

$4.64

14

GASKET

09168-12002

$1.59

15

PIPE, OIL INNER NO.1

11451-29F00

Unavailable

16

PIPE, T/M OIL INNER NO.2

11460-29F00

$78.80

17

O RING (D:1.9,ID:4.8)

09280-05004

$2.11

18

O RING (D:1.9,ID:6.8)

09280-07004

$1.53

19

BOLT (10X100)

09103-10110

$8.43

20

BOLT (10X115)

09103-10063

$8.73

21

NUT, REAR SWGARM BRACKET | MODEL K5/K6/K7 This part replaces 09159-10058.

09159-10115

$3.55

21

NUT | MODEL K8/K9

09159-10115

$3.55
