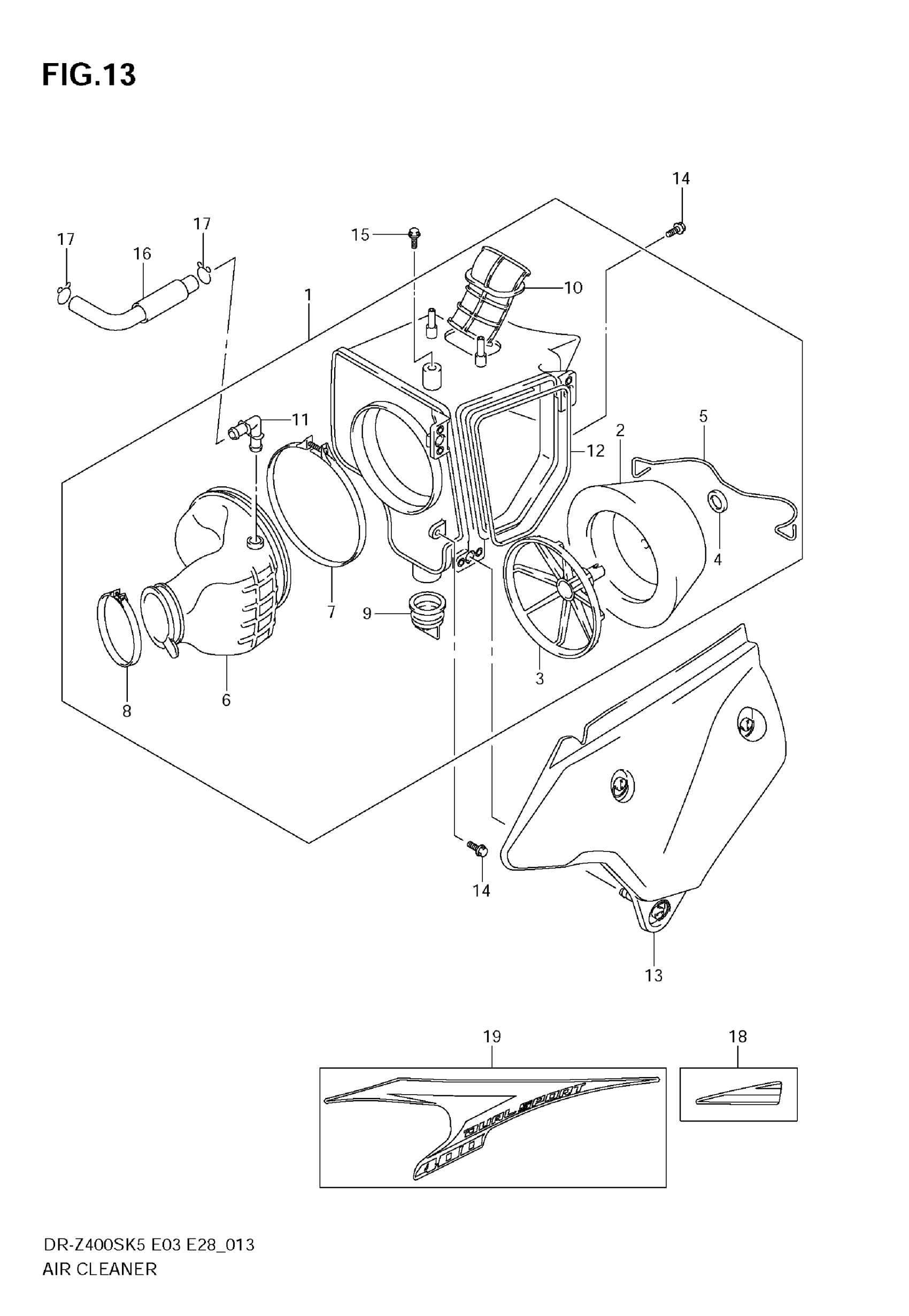

Suzuki DR-Z400S (2009) AIR CLEANER Diagram

#

Description
Price

1

CLEANER, AIR | Includes Item(s) 2 - 12 This part replaces 13701-29FB1.

13701-29FB2

$382.36

2

FILTER, AIR CLEANER

13780-44E00

$39.84

3

HOLDER, FILTER

13791-44E00

$15.16

4

SPACER

13796-44E00

$3.62

5

SPRING

13941-29F00

$33.96

6

TUBE, OUTLET

13881-29FB0

$80.28

7

CLAMP

13826-29F00

$7.97

8

CLAMP

09402-64203

$6.58

9

VALVE

13872-29F00

$10.23

10

TUBE, INLET

13891-29FA0

$39.52

11

JOINT, BREATHER HOSE

13858-14D20

$7.22

12

GASKET, AIR CLEANER

13746-29F00

$5.74

13

CAP,AIR CLEANER | MODEL K5/K6 This part replaces 13740-29FA1-30H.

13740-29FA2-30H

$159.18

13

CAP, AIR CLEANER (WHITE) | MODEL K7/K8/K9 This part replaces 13740-29FB0-30H.

13740-29FB1-30H

$200.83

13

CAP, AIR CLEANER (BLACK) | MODEL K9 This part replaces 13740-29FB0-019.

13740-29FB1-019

$198.43

14

BOLT

01547-0616B

$2.45

15

BOLT

09111-06054

$3.70

16

TUBE BREATHER This part replaces 13850-29FA1.

13850-29FA2

$12.08

17

CLIP

09401-14101

$2.34

18

TAPE, AIR CLNR CAP | MODEL K8 FOR 019

68145-29F80-EVG

Unavailable

18

TAPE, AIR CLNR CAP | MODEL K8 FOR YKY

68145-29F80-EVL

Unavailable

19

TAPE, AIR CLNR CAP | MODEL K9 FOR 019

68145-29FD0-GFL

Unavailable

19

TAPE, AIR CLNR CAP | MODEL K9 FOR 30H

68145-29FD0-GFM

Unavailable
