2004 Suzuki DR-Z400S Wiring Harness Diagram

← All diagrams

Find the part on the Wiring Harness diagram for your 2004 Suzuki DR-Z400S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

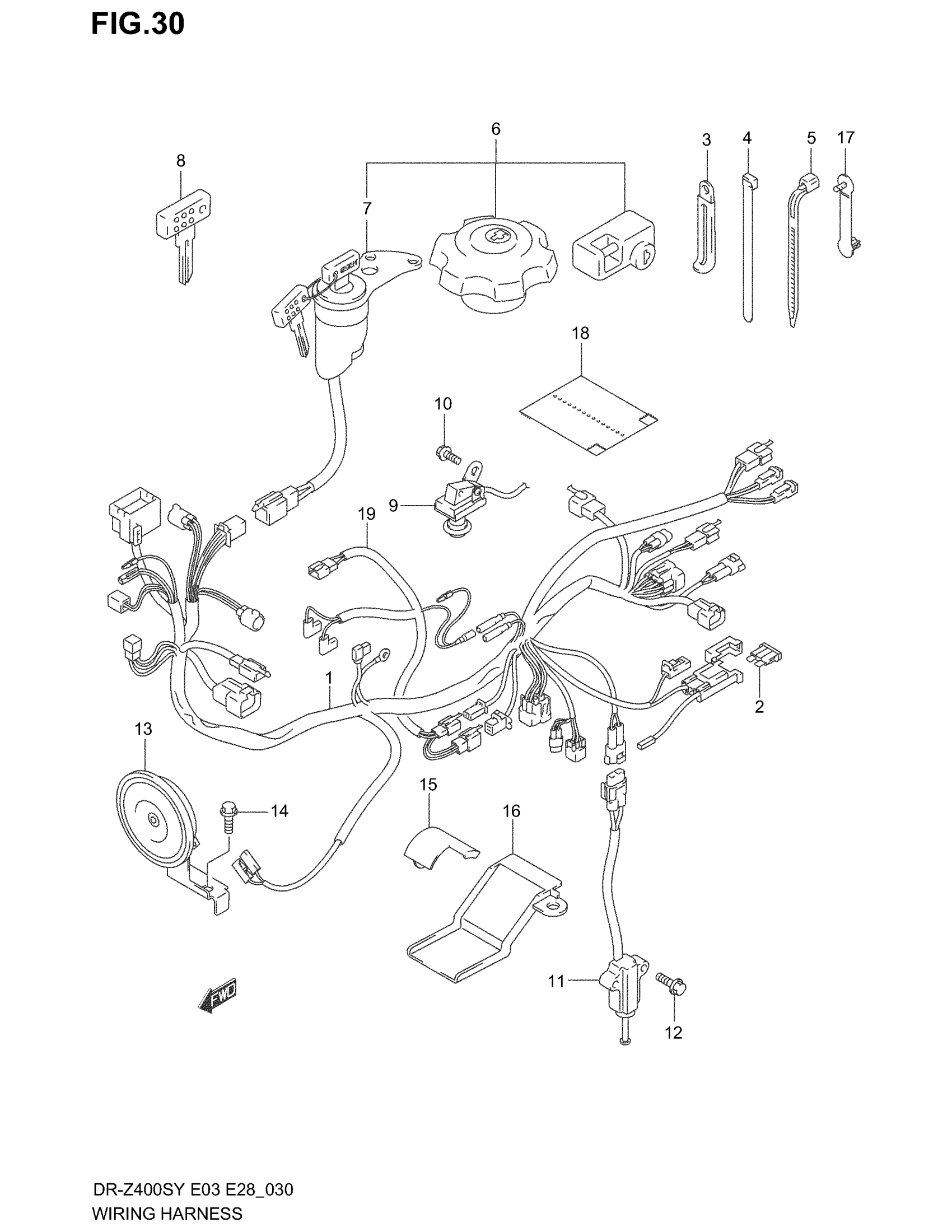

2004 Suzuki DR-Z400S Wiring Harness Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HARNESS,WIRING | Includes Item(s) 2 This part replaces 36610-29F30.

36610-29F31

1
Out of stock

2

FUSE (20A)

09481-20101

2

$2.31

In stock

3

CLAMP (L:45)

09404-06429

1
Out of stock

3

1

$1.86

In stock

4

CLAMP (L:145)

09407-14407

4
Out of stock

5

CLAMP (L:125)

09407-14403

6
Out of stock

5

CLAMP (L:165)

09407-18402

4
Out of stock

5

CLAMP (L:235)

09407-25401

5
Out of stock

6

1

$227.30

In stock

7

1

$155.55

In stock

8

KEY, BLANK (TYPE:C) | OPT

37146-01F00

1
Out of stock

8

KEY, BLANK (TYPE:D) | OPT

37146-01F10

1
Out of stock

8

KEY, BLANK (TYPE:E) | OPT

37146-01F20

1
Out of stock

8

KEY, BLANK (TYPE:F) | OPT

37146-01F30

1
Out of stock

9

SWITCH ASSY, STOP LAMP

37740-29F00

1
Out of stock

10

BOLT, RH This part replaces 02162-06083.

02162-0608A

1
Out of stock

11

1

$88.88

In stock

12

BOLT This part replaces 01550-06163.

01550-0616A

2
Out of stock

13

HORN ASSY This part replaces 38500-29F00.

38500-29F01

1
Out of stock

14

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

1
Out of stock

15

PROTECTOR, WIRING HARNESS

36611-29F10

1
Out of stock

16

PROTECTOR, WIRING HARNESS

36611-29F00

1
Out of stock

17

CLAMP, WIRING HARNESS

36651-48E00

1

$3.67

In stock

18

COVER WIRING HARNESS This part replaces 36618-15D20.

36618-15D21

1
Out of stock

19

WIRE, CARBURETOR HEATER | OPT

36856-29F00

1
Out of stock
