Description

Price

1

RELAY ASSY STARTING MOTOR This part replaces 31800-29F00.

31800-29F01

$57.80

2

BRACKET, STARTING MOTOR

31811-29F00

$8.03

3

PROTECTOR, STARTING MOTOR

31812-29F00

$6.40

4

BOLT, STARTING MOTOR (6X8)

09128-06013

$1.24

5

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

6

CLAMP (L:145)

09407-14407

$2.80

7

RECTIFIER ASSY

32800-29F00

$208.41

8

BOLT This part replaces 02162-06203.

02162-0620C

$1.73

9

CDI UNIT

32900-29F40

$860.15

10

PROTECTOR (170X95X3) | CUT AS REQUIRED PROFILE (50X30)

33651-37000

$4.09

11

COIL ASSY, IGNITION

33410-09F00

$87.46

12

BOLT This part replaces 01547-06163.

01547-0616B

$2.43

13

CAP ASSY, SPARK PLUG

33510-48B10

$29.09

14

SEAL, SPARK PLUG CAP

33541-23E01

$5.80

15

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$3.97

16

COVER,SPARK PLUG CAP

33543-33E01

$4.16

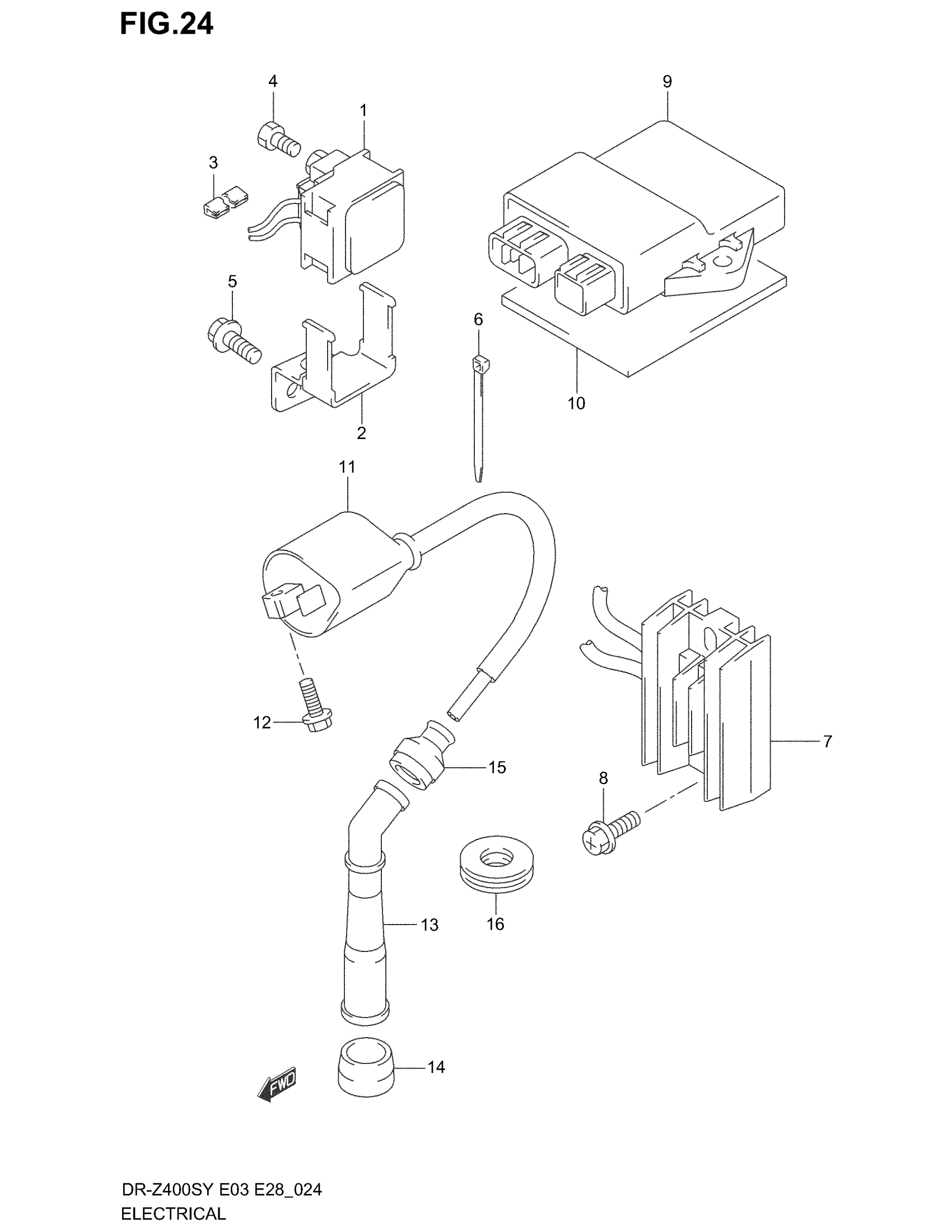

Suzuki DR-Z400S (2004) ELECTRICAL Diagram
