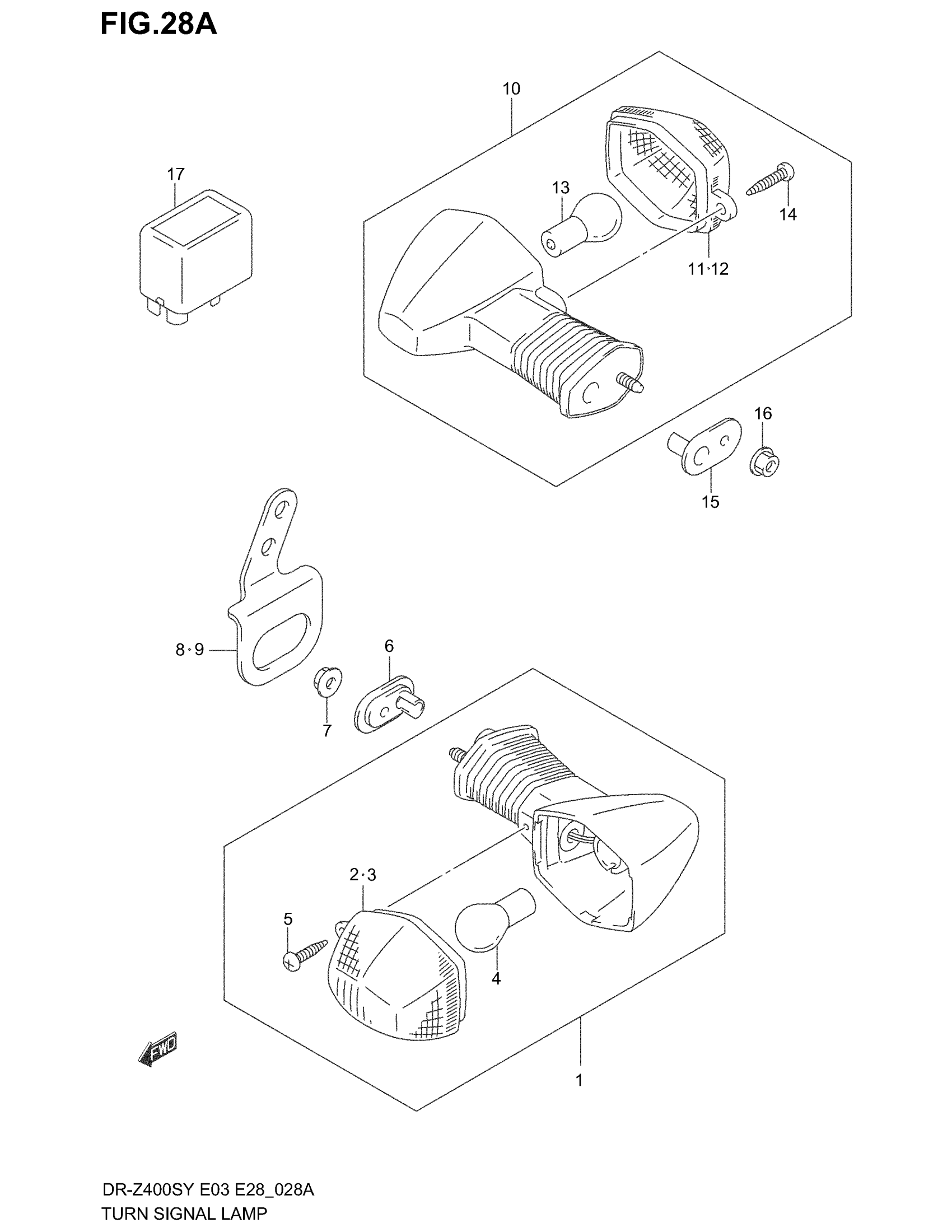

Suzuki DR-Z400S (2004) TURN SIGNAL LAMP (MODEL K2/K3/K4) Diagram

#

Description
Price

1

LAMP ASSY, FRONT TURN RH

35601-29F30

Unavailable

1

LAMP ASSY, FRONT TURN LH | Includes Item(s) 2 - 5

35602-29F30

$98.05

2

LENS, RH

35612-31F30

$15.68

3

LENS, LH

35632-31F30

$16.23

4

BULB (12V,21W)

09471-12045

$2.95

5

SCREW This part replaces 03242-04163.

03242-0416B

$3.18

6

PLATE,TURNSIGNAL LAMP

35629-31F40

$4.14

7

NUT This part replaces 08316-10053.

08316-1005A

$2.19

8

BRACKET, FRONT RH

35671-29F00

$5.85

9

BRACKET, FRONT LH

35681-29F00

$6.02

10

LAMP ASSY, REAR TURN RH

35603-29F60

$94.88

10

LAMP ASSY, REAR TURN LH | Includes Item(s) 11 - 14

35604-29F60

$91.78

11

LENS, RH

35632-31F30

$16.23

12

LENS, LH

35612-31F30

$15.68

13

BULB (12V,21W)

09471-12045

$2.95

14

SCREW This part replaces 03242-04163.

03242-0416B

$3.18

15

PLATE,TURNSIGNAL LAMP

35629-31F40

$4.14

16

NUT This part replaces 08316-10053.

08316-1005A

$2.19

17

RELAY ASSY,TURNSIGNAL LAMP This part replaces 38610-03F00.

38610-03F01

$81.99
