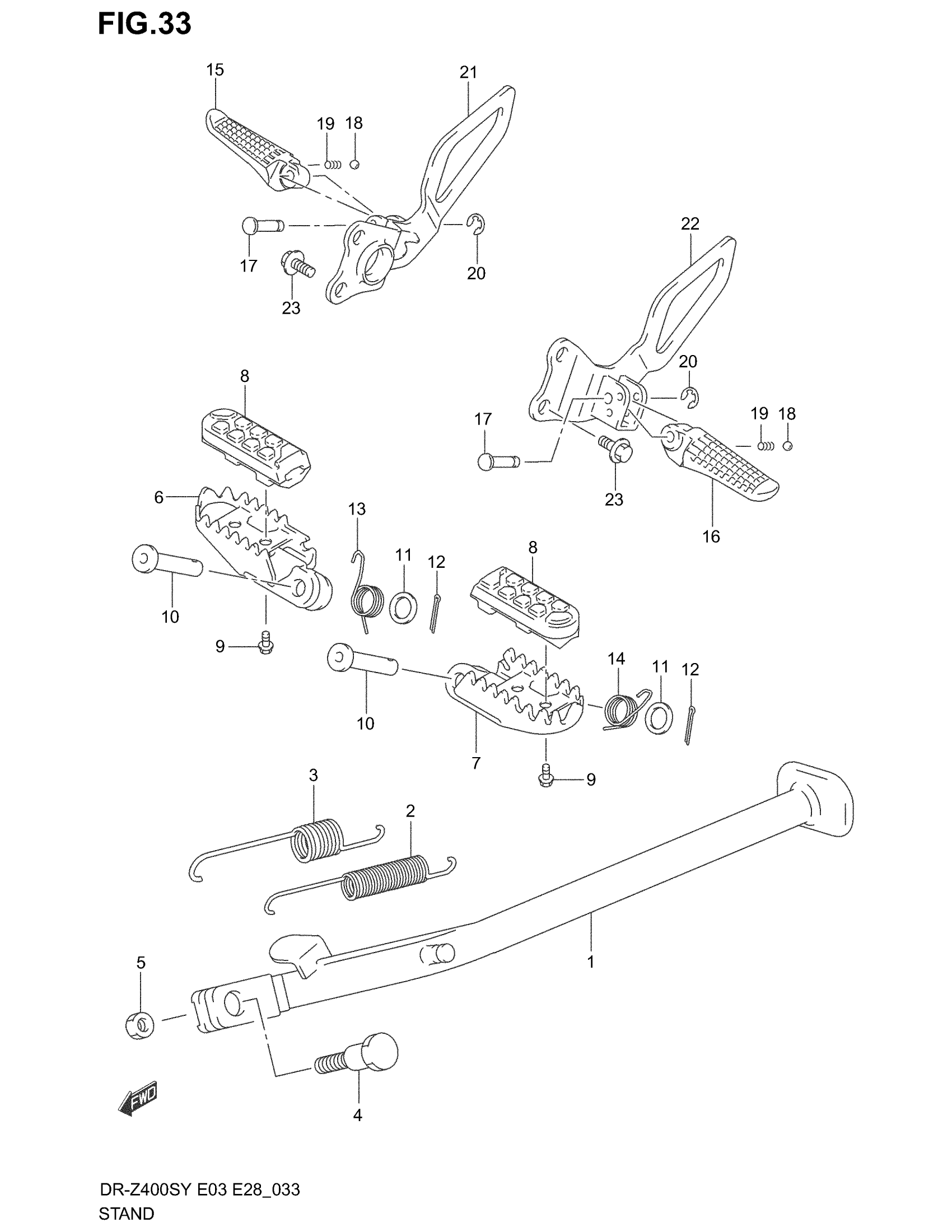

Suzuki DR-Z400S (2004) STAND Diagram

#

Description
Price

1

STAND, PROP

42310-29F00

$142.43

2

SPRING, INNER

09443-12036

$7.84

3

SPRING, OUTER

09443-19010

$6.51

4

BOLT

09111-10060

$4.11

5

NUT, PROP STAND

42321-03FK0

$5.17

6

FOOTREST, RH

43550-29E01

$111.52

7

FOOTREST, LH

43560-29E01

$109.42

8

RUBBER

43530-29F00

$25.27

9

BOLT This part replaces 01547-05103.

01547-0510B

$2.97

10

PIN

09200-10019

$6.83

11

WASHER, KNUCKLE END This part replaces 08322-01103.

08322-0110A

$1.84

12

CITTER PIN This part replaces 04111-25208.

04111-2520A

$1.49

13

SPRING, RH

09448-18030

$5.36

14

SPRING, LH

09448-18029

$5.36

15

BAR, PILLION FOOTREST RH

43611-33E11

$55.65

16

BAR, PILLION FOOTREST LH

43621-33E11

$55.65

17

PIN

87259-85510

$5.19

18

BALL

06111-07004

$1.49

19

SPRING

09440-05005

$1.58

20

E RING This part replaces 08332-11043.

08332-1104A

$1.49

21

BRACKET, PILLION RH

43650-29F00

$187.32

22

BRACKET, PILLION LH

43750-29F00

$77.57

23

BOLT (8X16) This part replaces 01550-08163.

01550-0816A

$2.32
