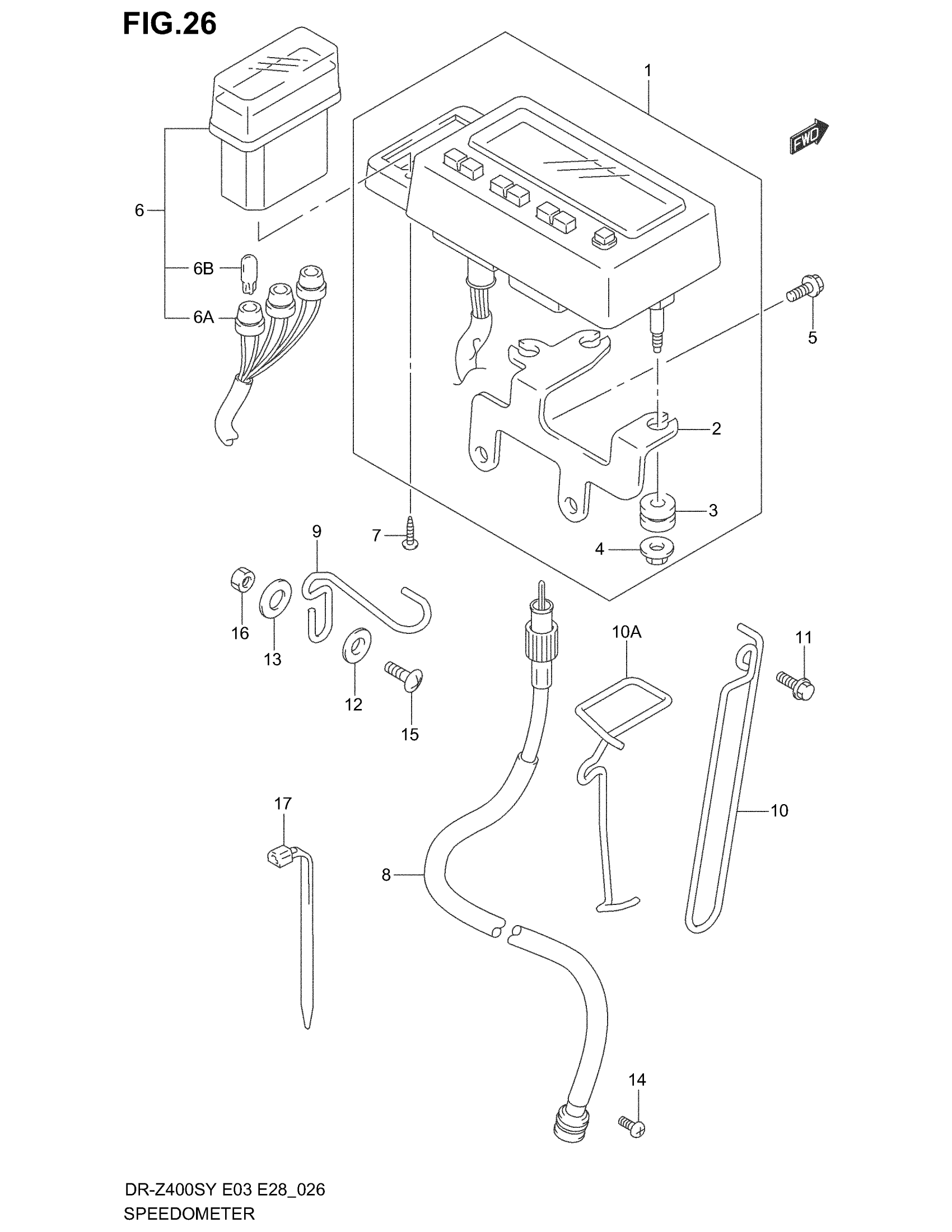

Suzuki DR-Z400S (2004) SPEEDOMETER Diagram

#

Description
Price

1

SPEEDOMETER ASS | MODEL Y/K1 This part replaces 34100-29F20.

34100-29F22

$1,159.57

1

SPEEDOMETER ASS | MODEL K2/K3/K4 This part replaces 34100-29F21.

34100-29F22

$1,159.57

1

SPEEDOMETER ASSY (KILO) | MODEL Y/K1 E28

34100-29F00

Unavailable

1

SPEEDOMETER ASSY (KILO) | MODEL K2/K3/K4 E28; Includes Item(s) 2 - 4

34100-29F01

Unavailable

2

BRACKET

34950-29F00

$48.38

3

.CUSHION

34996-43410

$4.35

4

NUT This part replaces 08316-10053.

08316-1005A

$2.19

5

BOLT This part replaces 01550-06163.

01550-0616A

$1.97

6

BOX ASSY, PILOT LAMP | Includes Item(s) 6A - 6B

36380-29F00

$287.20

6A

SOCKET

36394-08D00

Unavailable

6B

BULB (12V2W,A7427)

09471-12118

$2.46

7

SCREW This part replaces 03511-04203.

03511-0420B

$2.46

8

CABLE ASSY SPEEDOMETER

34910-32E00

$41.17

9

GUIDE, METER CABLE NO.1

34938-03D22

$11.38

10

GUIDE METER CABLE NO.2

34938-14D30

$10.63

10A

GUIDE, METER CABLE NO.3 | MODEL K2/K3/K4

34938-29F10

$14.48

11

BOLT, METER CABLE NO.2

09116-06167

$2.19

12

WASHER, METER CABLE NO.1

09160-06109

$1.49

13

WASHER (6.3X16X1) This part replaces 09169-06054.

09169-06053

$1.49

14

.SCREW This part replaces 02112-05163.

02112-0516A

$1.49

15

SCREW This part replaces 02142-06163.

02142-0616A

$1.49

16

NUT This part replaces 08310-00063.

08310-0006A

$1.84

17

CLAMP, SPEEDOMETER CABLE | L:165

09407-18402

$2.19
