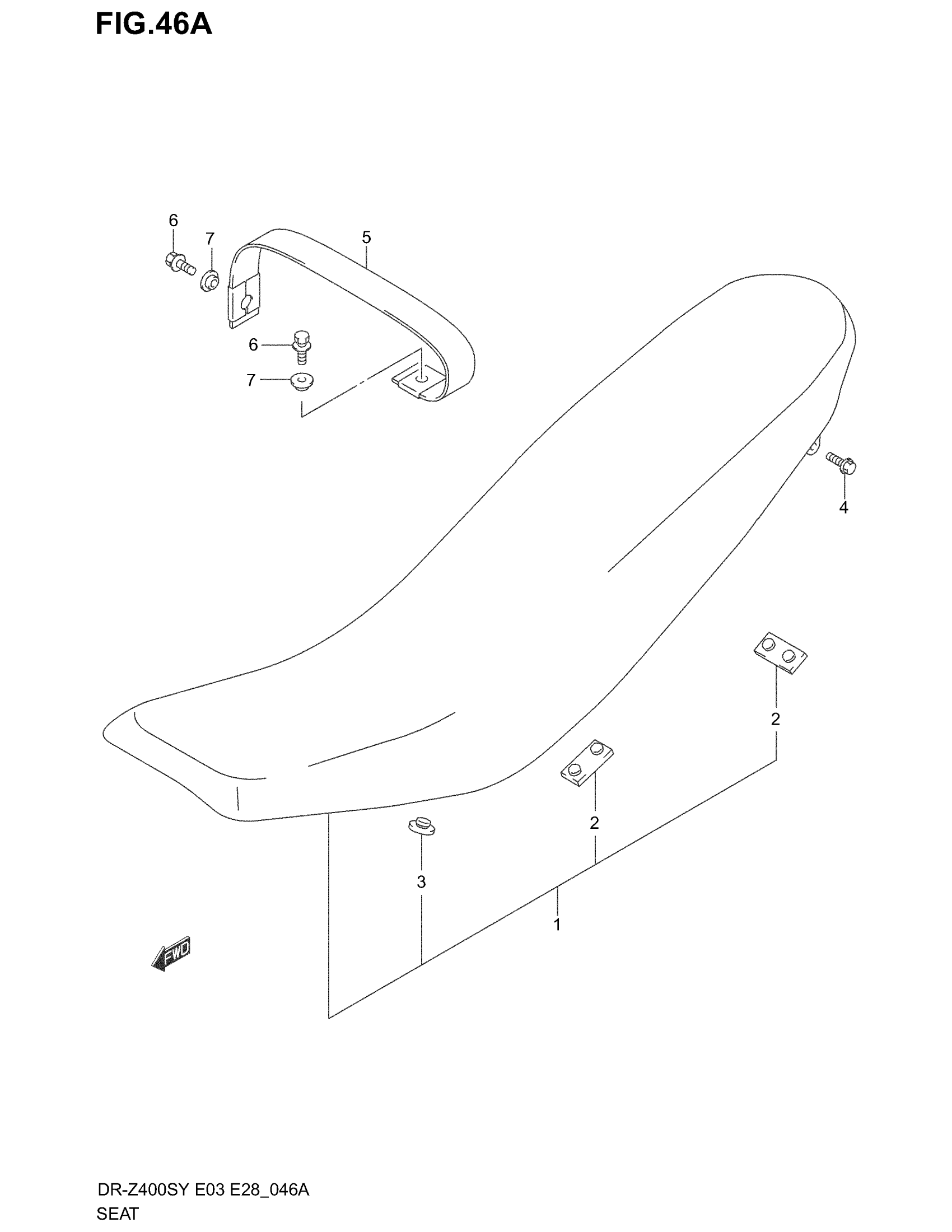

Suzuki DR-Z400S (2004) SEAT (MODEL K2/K3/K4) Diagram

#

Description

Price

1

SEAT ASSY | Includes Item(s) 2 - 3

45100-29F60-6BY

Unavailable

2

CUSHION (40X20X6)(FRONT/REAR)

45149-12C00

$7.48

2

CUSHION (40X20X15)(CENTER)

45149-31300

$3.26

3

CUSHION

09321-10022

$2.37

4

BOLT This part replaces 01550-06203.

01550-0620A

$1.97

5

BAND ASSY, SEAT

45180-29F00-6BY

Unavailable

6

BOLT, SEAT BAND

09116-06150

$2.61

7

WASHER, SEAT BAND

09169-06063

$3.08
