Description

Price

1

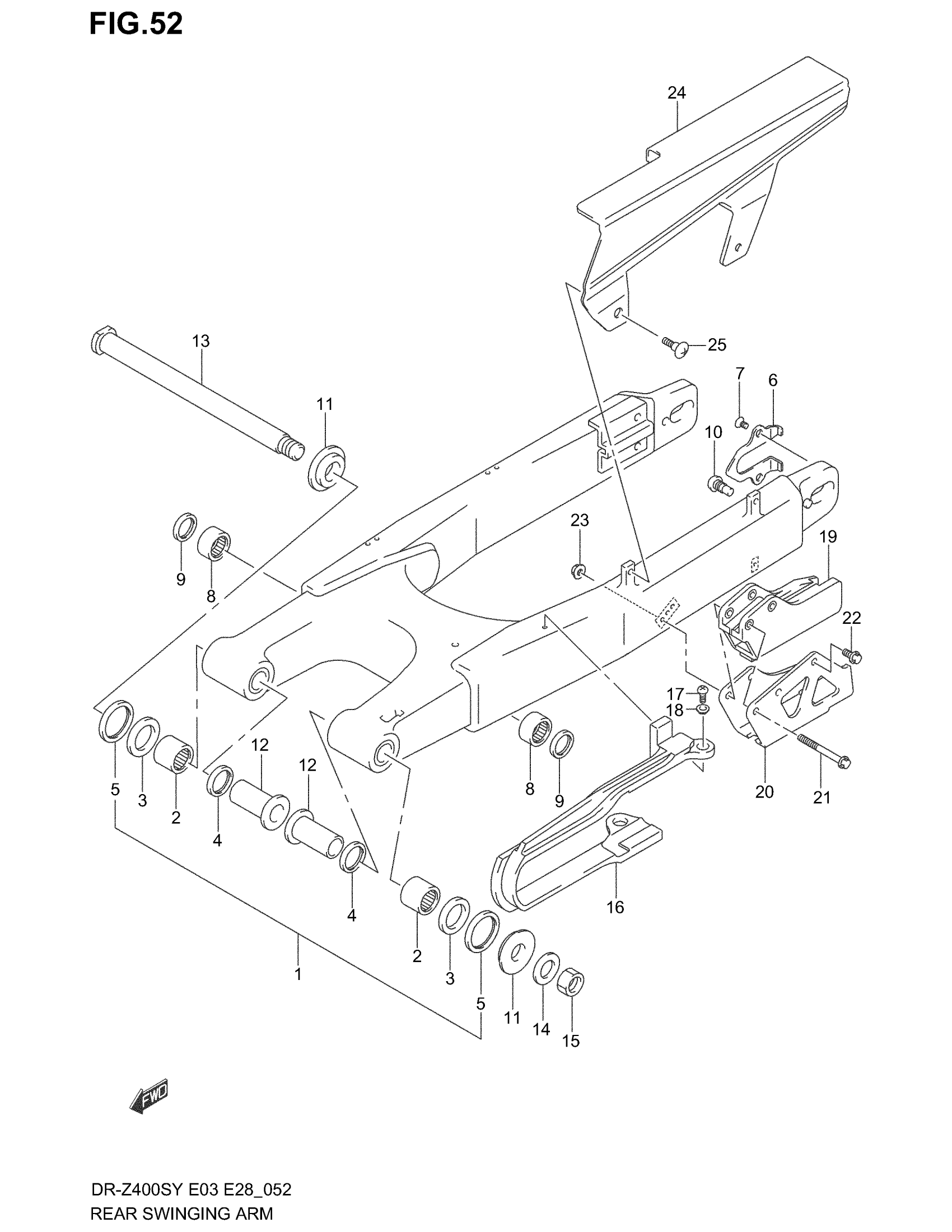

SWINGING ARM ASSY, REAR | Includes Item(s) 2 - 10

61000-29F10

Unavailable

2

BEARING, PIVOT (22X29X30)

09263-22017

$22.58

3

BEARING, OUTER (22X35X2)

09263-22064

$27.72

4

.SEAL,OIL (21X29X4) This part replaces 09285-22001.

09285-22006

$3.83

5

SEAL, OUTER (29.2X37X4)

61262-36E00

$6.93

6

.PLATE RR SWING ARM AXLE

61128-29E00

$18.33

7

SCREW (5X8)

09126-05009

$2.28

8

BEARING, ROD (20X27X15)

09263-20086

$16.47

9

SEAL, ROD (19X27X4)

62624-14500

$6.01

10

STOPPER, CHAIN ADJUSTER

61431-13E00

$11.55

11

SPACER, PIVOT OUTER

61250-44E00

$19.57

12

SPACER, PIVOT INNER

61252-36E00

$53.92

13

SHAFT, PIVOT

61211-29F00

$82.02

14

WASHER This part replaces 08322-01163.

08322-0116A

$1.84

15

NUT

09159-16007

$12.61

16

BUFFER, CHAIN TOUCH DEFENSE

61273-29F00

$66.14

17

SCREW This part replaces 02112-05083.

02112-0508A

$1.49

18

WASHER

09169-05022

$3.55

19

GUIDE, CHAIN This part replaces 61341-36E30.

61341-35G00

$48.05

20

PLATE, CHAIN GUIDE This part replaces 61342-36E30.

61342-37F00

$66.30

21

BOLT This part replaces 01547-06503.

01547-0650B

$2.75

22

BOLT This part replaces 01547-06123.

01547-0612B
