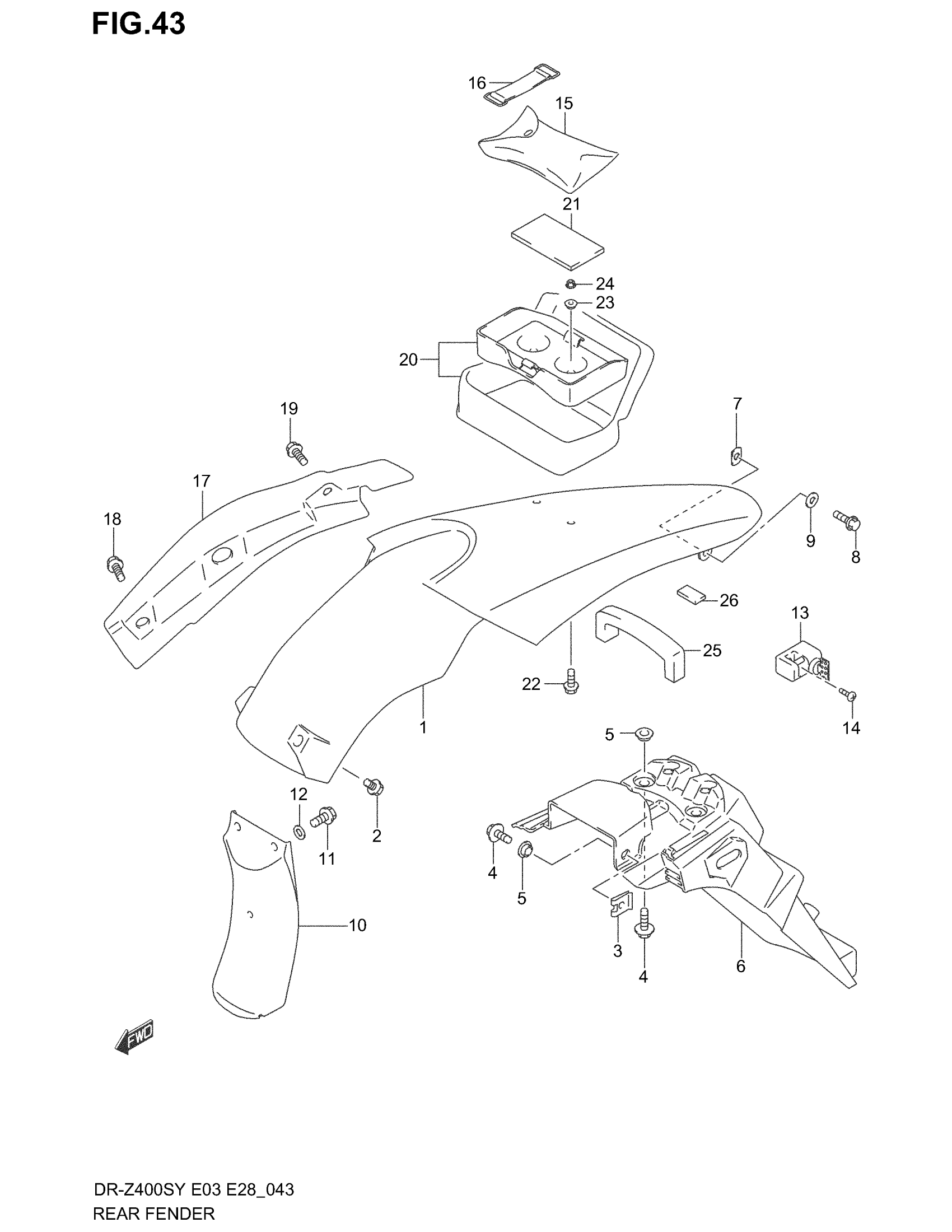

Suzuki DR-Z400S (2004) REAR FENDER (MODEL Y/K1) Diagram

#

Description
Price

1

FENDER,REAR(YEL | MODEL Y E3,E33 FOR 3AE This part replaces 63113-29F40-25Y.

63113-29F41-25Y

Unavailable

1

FENDER, REAR (BLUE) | MODEL Y FOR N9J This part replaces 63113-29F40-YJ4.

63113-29F41-YJ4

Unavailable

1

FENDER RR (YELLOW) | MODEL K1 FOR YR1 This part replaces 63113-29F40-YR1.

63113-29FA0-YU1

$148.07

1

FENDER, REAR (BLUE) | MODEL K1 FOR N9J This part replaces 63113-29F40-YJ4.

63113-29F41-YJ4

Unavailable

2

BOLT, FRONT

09111-06066

$2.62

3

PLATE, REAR FENDER FITTING This part replaces 63312-13E00.

63312-13E01

$7.72

4

BOLT

09116-06115

$1.97

5

WASHER

09169-06073

$3.42

6

EXTENSION, REAR FENDER

63311-29F30

$96.22

7

NUT COWL

94484-24F00

$4.03

8

BOLT This part replaces 01550-05123.

01550-0512B

$2.87

9

WASHER This part replaces 09169-05021.

09169-05024

$2.06

10

MUDGUARD, RR FENDER FR

63411-29F00

$24.30

11

BOLT This part replaces 01547-06163.

01547-0616B

$2.45

12

WASHER This part replaces 09169-06045.

09169-06055

$2.27

13

LOCK SET HELMET This part replaces 95700-44810.

95700-41821

$152.77

14

SCREW

09139-06089

$3.03

15

TOOL ASSY This part replaces 09800-21042.

09800-21092

$90.00

16

BAND, TOOL

09462-00008

$4.77

17

MUDGUARD, REAR FENDER RH

63114-29F00

$36.68

18

BOLT (6X18) This part replaces 63161-35F00.

09111-06081

$4.09

19

BOLT (6X12) This part replaces 63161-43E00.

09111-06107

$2.60

20

BAG ASSY, SEAT TAIL This part replaces 94900-29F00-6BY.

94900-29FB1

$169.10

21

CUSHION

94915-44E00

$12.65

22

BOLT This part replaces 01550-06203.

01550-0620A

$1.97

23

WASHER

09169-06063

$3.37

24

NUT

09159-06078

$2.62

25

CUSHION, FRONT

47161-29B00

$7.50

26

CUSHION, REAR

33651-37000

$4.48
