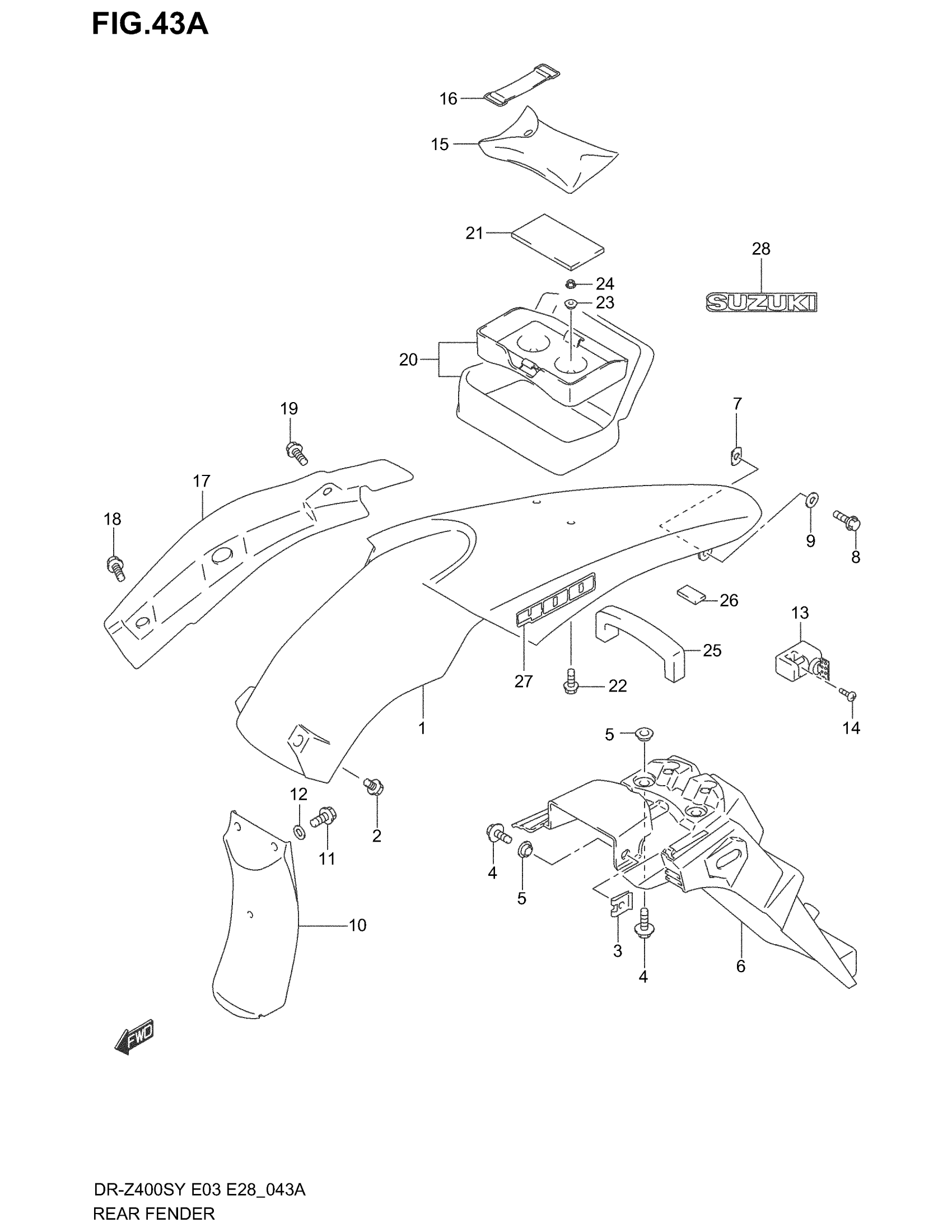

Suzuki DR-Z400S (2004) REAR FENDER (MODEL K2/K3/K4) Diagram

#

Description
Price

1

FENDER RR (YELLOW) | FOR YU1 This part replaces 63113-29F40-YU1.

63113-29FA0-YU1

$166.30

1

FENDER, REAR (BLUE) | FOR N9J This part replaces 63113-29F40-YJ4.

63113-29F41-YJ4

Unavailable

2

BOLT, FRONT

09111-06066

$2.64

3

PLATE, REAR FENDER FITTING This part replaces 63312-13E00.

63312-13E01

$5.64

4

BOLT

09116-06115

$1.97

5

WASHER

09169-06073

$3.08

6

EXTENSION, REAR FENDER

63311-29F30

$108.08

7

NUT COWL

94484-24F00

$3.63

8

BOLT This part replaces 01550-05123.

01550-0512B

$3.12

9

WASHER This part replaces 09169-05021.

09169-05024

$2.07

10

MUDGUARD, RR FENDER FR

63411-29F00

$27.42

11

BOLT This part replaces 01547-06163.

01547-0616B

$2.43

12

WASHER This part replaces 09169-06045.

09169-06055

$2.02

13

LOCK SET HELMET This part replaces 95700-44810.

95700-41821

$171.60

14

SCREW

09139-06089

$3.30

15

TOOL ASSY This part replaces 09800-21042.

09800-21092

$97.82

16

BAND, TOOL

09462-00008

$4.36

17

MUDGUARD, REAR FENDER RH

63114-29F00

$41.41

18

BOLT, LOWER

09111-06081

$3.85

19

BOLT (6X12) This part replaces 63161-43E00.

09111-06107

$2.66

20

BAG ASSY, SEAT TAIL This part replaces 94900-29FA0.

94900-29FB1

$188.18

21

CUSHION

94915-44E00

$14.27

22

BOLT This part replaces 01550-06203.

01550-0620A

$1.97

23

WASHER

09169-06063

$3.08

24

NUT

09159-06078

$2.64

25

CUSHION, FRONT

47161-29B00

$8.47

26

CUSHION, REAR

33651-37000

$4.09

27

EMBLEM, "400" | FOR YU1

68171-29F00-GY8

Unavailable

27

EMBLEM, "400" | MODEL K2 FOR N9J

68171-29F00-FT9

Unavailable

27

EMBLEM, "400" | MODEL K3/K4 FOR N9J

68171-29F00-HU8

Unavailable

28

EMBLEM SUZUKI (YELLOW BLACK) | MODEL K4 FOR YU1 This part replaces 68721-13A00-GY8.

68721-13A01-GY8

$14.37

28

EMBLEM,"SUZUKI" | MODEL K4 FOR N9J This part replaces 68721-13A00-HU8.

68721-13A01-HU8

Unavailable
