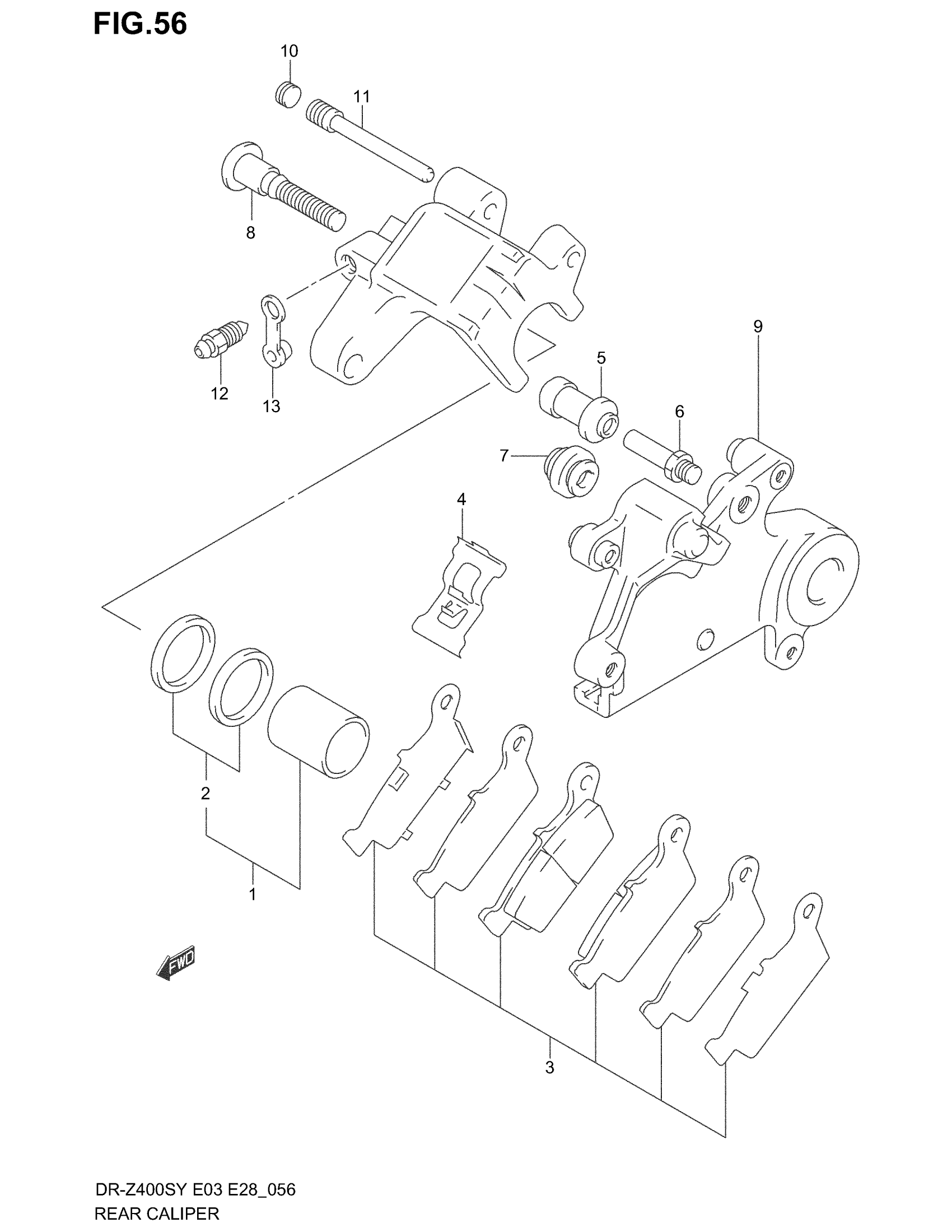

Suzuki DR-Z400S (2004) REAR CALIPER Diagram

#

Description
Price

CALIPER ASSY, REAR | !69100-44E10 W/69100-36850; Includes Item(s) 1 - 13 This part replaces 69100-44E10.

69100-44E10-999

$265.48

1

PISTON SET

69100-43810

$36.64

2

SEAL SET, PISTON

69100-36810

$9.03

3

PAD/RETAINER SET

69100-36850

$51.95

4

SPRING

59315-36E00

$9.72

5

BOOT

59386-13A00

$7.95

6

PIN

59382-27C30

$9.07

7

BOOT

59303-14500

$5.52

8

PIN

59305-36E00

$18.20

9

BRACKET

69351-36E00

$143.95

10

PLUG

59146-21E10

$6.15

11

.PIN HANGER

69345-43D00

$11.55

12

BLEEDER

59121-01A00

$8.73

13

CAP

59122-01A00

$4.34
