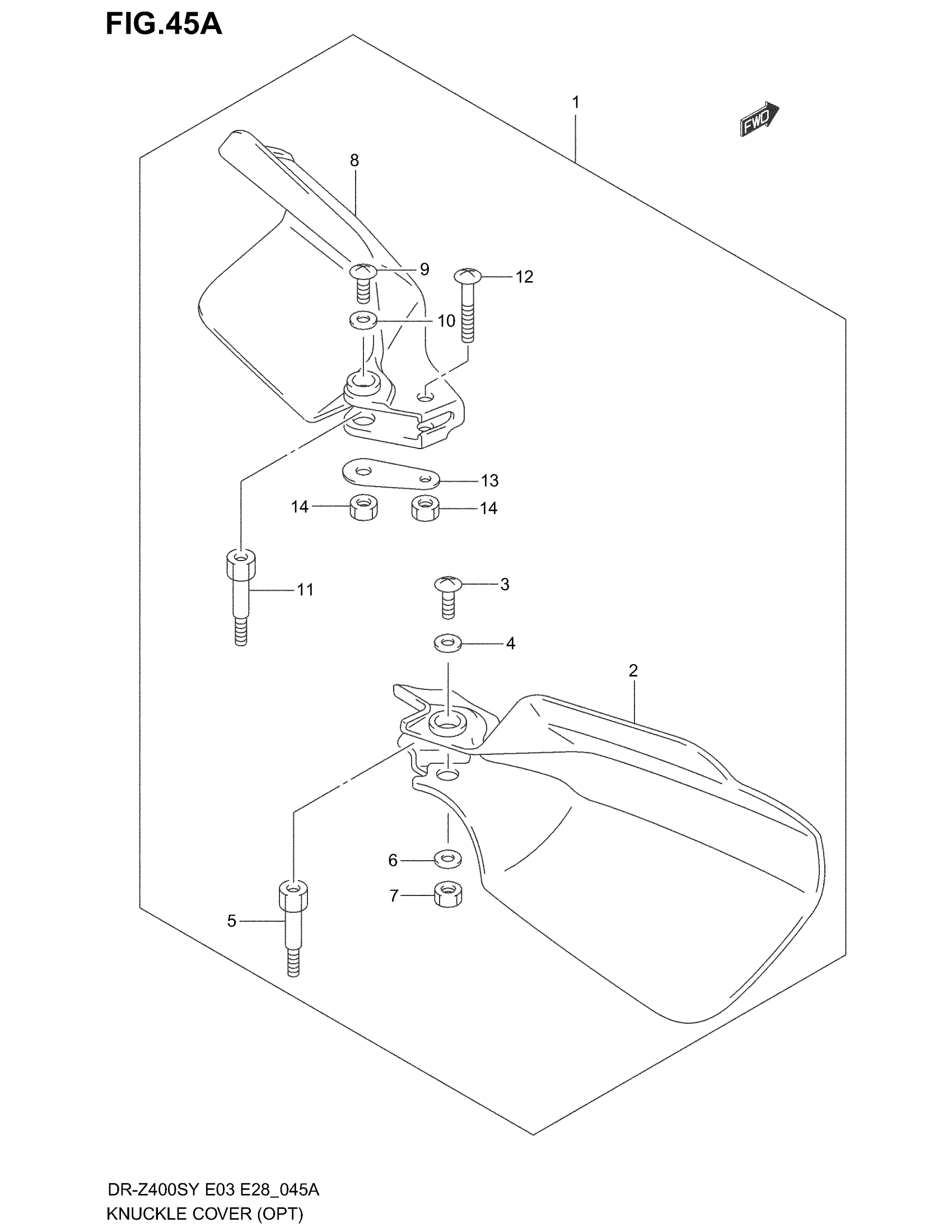

Suzuki DR-Z400S (2004) KNUCKLE COVER (MODEL K3/K4 OPT) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | FOR YU1 This part replaces 57300-05820-YU1.

57300-05822-YU1

Unavailable

1

COVER SET, KNUC | FOR N9J; Includes Item(s) 2 - 14 This part replaces 57300-05820-YJ4.

57300-05822-YJ4

Unavailable

2

COVER, KNUCKLE RH (YELLOW) This part replaces 57341-05D00-YU1.

57341-05D10-YU1

$46.22

2

COVER, KNUCKLE RH (BLUE)

57341-05D00-YJ4

Unavailable

3

SCREW

02142-05107

$1.49

4

PLATE, UPPER RH

57355-14D00

$6.88

5

BOLT, PIVOT

57431-05D00

$13.20

6

.WASHER (6.5X16X1.6)

09160-06130

$1.91

7

.NUT This part replaces 08319-21068.

08319-2106A

$1.91

8

COVER, KNUCKLE LH (YELLOW) This part replaces 57541-05D01-YU1.

57541-05D10-YU1

$47.07

8

COVER, KNUCKLE LH (BLUE)

57541-05D01-YJ4

Unavailable

9

SCREW

02142-05107

$1.49

10

WASHER

09160-05043

$2.30

11

BOLT, PIVOT

57431-13E00

$12.13

12

SCREW

09125-06091

$2.43

13

PLATE

57542-05D00

$4.17

14

.NUT This part replaces 08319-21068.

08319-2106A

$1.91
