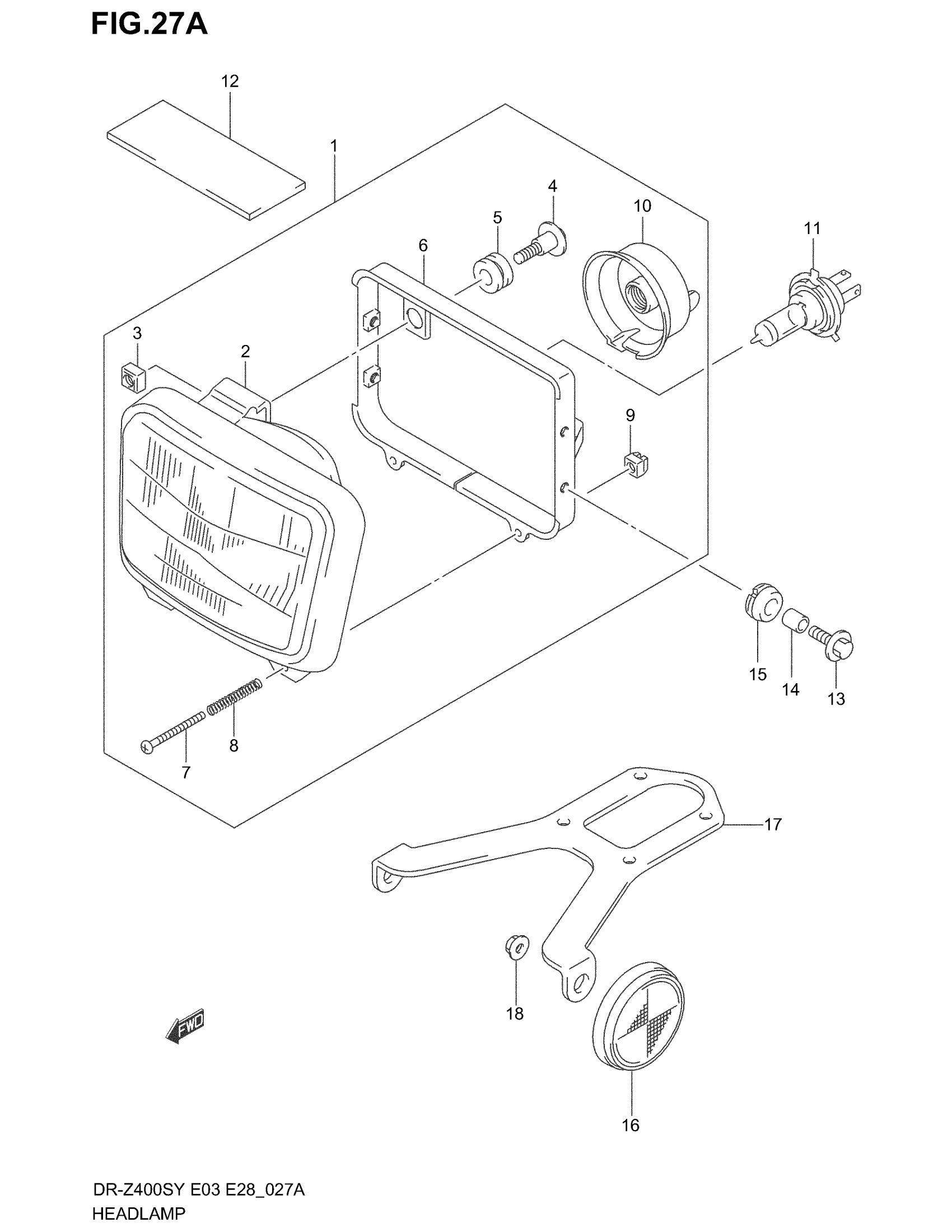

Suzuki DR-Z400S (2004) HEADLAMP (MODEL K2/K3/K4) Diagram

#

Description
Price

1

HEADLAMP ASSY | Includes Item(s) 2 - 10

35100-12EA0-999

$439.80

2

UNIT ASSY

35121-12EA0

$159.33

3

NUT

35135-45900

$3.25

4

.SCREW MOUNTING

35136-38A00

$4.02

5

CUSHION

35139-45230

$1.98

6

HOUSING

35141-12EA0

$112.37

7

.SCREW ADJUSTING

35151-12EA0

$6.23

8

.SPRING ADJUSTING

35154-12EA0

$6.92

9

.NUT ADJUSTING

35135-12E20

$3.72

10

.COVER SOCKET

35173-01440

$17.37

11

BULB (12V,60/55W) This part replaces 09471-12185.

09471-12060

$25.15

12

CUSHION, HEADLAMP

36920-14D00

$7.77

13

BOLT (6X20)

09116-06167

$2.19

14

SPACER (6.5X10X10)

09180-06310

$1.91

15

CUSHION

09320-09018

$2.44

16

REFLEX REFLECTOR ASSY, FRONT

35950-14A00

$16.94

17

BRACKET, FRONT SIDE REAR

35956-29F00

$14.92

18

NUT This part replaces 08316-10053.

08316-1005A

$2.19
