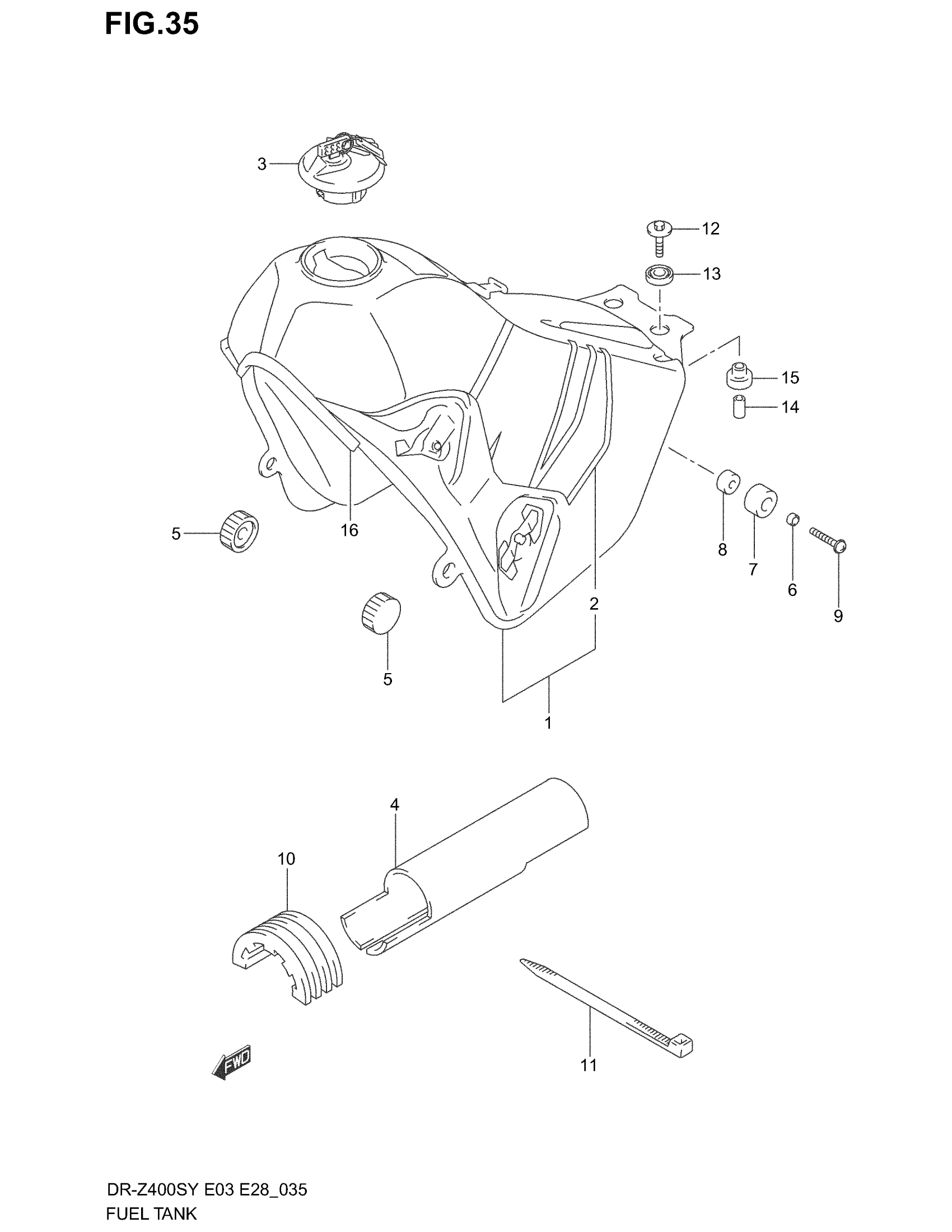

Suzuki DR-Z400S (2004) FUEL TANK (MODEL Y) Diagram

#

Description
Price

1

TANK ASSY, FUEL (YELLOW) | E3 FOR 3AE

44100-29F00-Y0L

Unavailable

1

TANK ASSY, FUEL (BLUE) | E3,E28 FOR N9J

44100-29F00-YC2

Unavailable

1

TANK ASSY, FUEL (YELLOW) | E33 FOR 3AE

44100-29F20-Y0L

Unavailable

1

TANK ASSY, FUEL (BLUE) | E33 FOR N9J; Includes Item(s) 2 - 2

44100-29F20-YC2

Unavailable

2

TAPE SET | FOR Y0L

68110-29F01-DB1

Unavailable

2

TAPE SET | FOR YC2

68110-29F01-CW4

Unavailable

3

CAP SET FUEL TANK FILLER | E3,E28 This part replaces 44200-29820.

44200-29821

$140.27

3

CAP SET,FUEL TA | E33 This part replaces 44200-05820.

44200-05822

$74.48

4

SHIELD, FUEL TANK

44194-29F00

Unavailable

5

CUSHION, FRONT

09329-10016

$3.10

6

SPACER, CUSHION LOWER

09180-06215

$7.95

7

CUSHION, SIDE

45149-14D00

$6.63

8

SPACER, CUSHION UPPER

09180-06306

$2.03

9

SCREW This part replaces 02112-16303.

02112-1630B

$3.08

10

CUSHION, UPPER

44541-29F00

$34.55

11

CLAMP

09407-30402

$4.11

12

BOLT, REAR

09116-06172

$2.50

13

CUSHION, UPPER

09320-14022

$3.63

14

SPACER

09180-06271

$2.35

15

CUSHION (9X24X18) This part replaces 09320-10020.

09320-10071

$2.60

16

MOLDING, FRONT

68241-04X50-00B

$27.30
