Description

Price

1

CYLINDER ASSY, FRONT MASTER (SILVER) | Includes Item(s) 2 - 10

59600-44E30

$339.85

2

PISTON/CUP SET

69600-38810

$66.13

3

BOOT

59666-44300

$5.30

4

DIAPHRAGM

59667-44B00

$8.95

5

CAP (SILVER)

59669-03D00

$36.47

6

SCREW

02122-04127

$1.97

7

HOLDER (SILVER)

59671-03D00

$29.60

8

BOLT

59675-27C00

$3.34

9

SEPARATOR

59748-36E00

$10.58

10

RING

69744-36E00

$4.53

11

UNION This part replaces 09360-10042.

09360-10062

$5.81

12

WASHER (10X15X1.5)

09161-10009

$1.83

13

HOSE This part replaces 59480-29F10.

59480-29F12

$257.88

14

CLAMP BRAKE HOSE This part replaces 58621-07A10.

58621-07A20

$3.83

15

SCREW This part replaces 02142-06253.

02142-0625A

$1.43

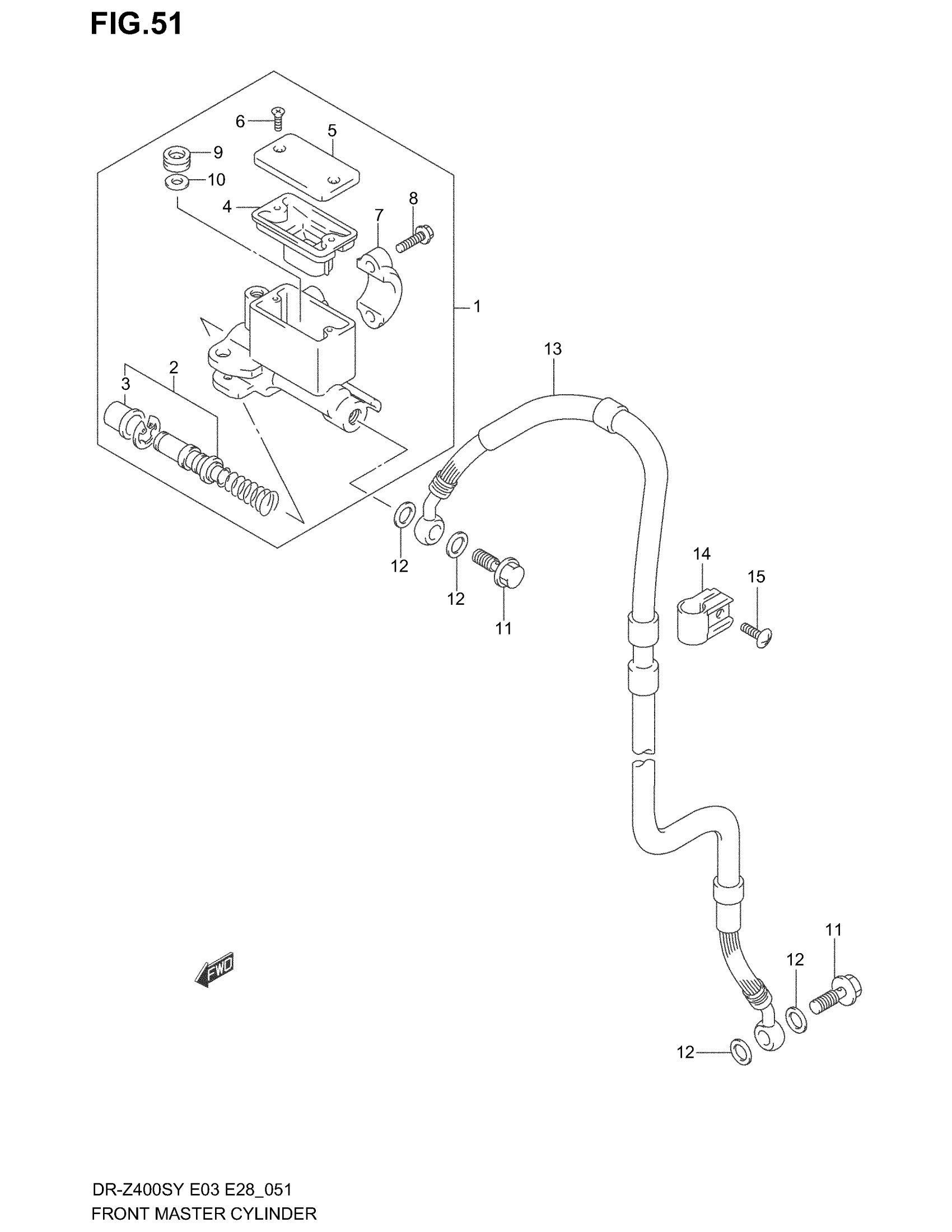

Suzuki DR-Z400S (2004) FRONT MASTER CYLINDER Diagram
