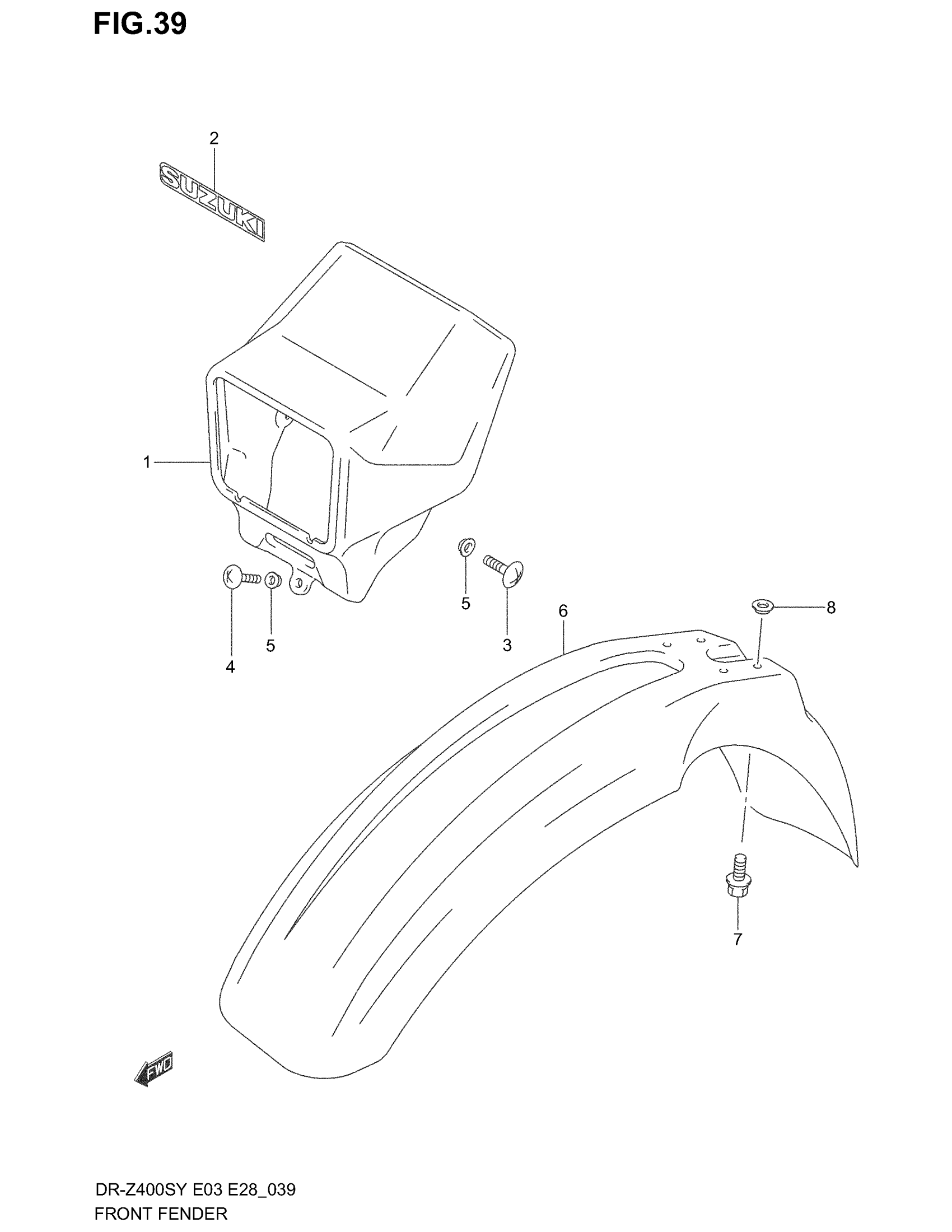

Suzuki DR-Z400S (2004) FRONT FENDER (MODEL Y) Diagram

#

Description

Price

1

COVER, HEAD LAMP (WHITE)

51811-32E00-30H

Unavailable

2

EMBLEM, SUZUKI | E3,E33 FOR 3AE

68171-44B00-8YM

$12.48

2

EMBLEM, SUZUKI | FOR N9J

68171-44B00-N9J

Unavailable

3

SCREW This part replaces 02142-06123.

02142-0612A

$1.49

4

.SCREW This part replaces 02142-05123.

02142-0512A

$1.49

5

WASHER

09169-06033

$1.50

6

FENDER,FRONT(YE | E3,E33 FOR 3AE This part replaces 53111-27C21-25Y.

53111-27C22-25Y

Unavailable

6

FENDER, FRONT (BLUE) | FOR N9J This part replaces 53111-27C21-YJ4.

53111-27C22-YJ4

Unavailable

7

BOLT

09116-06170

$2.50

8

WASHER

09169-06073

$3.42
