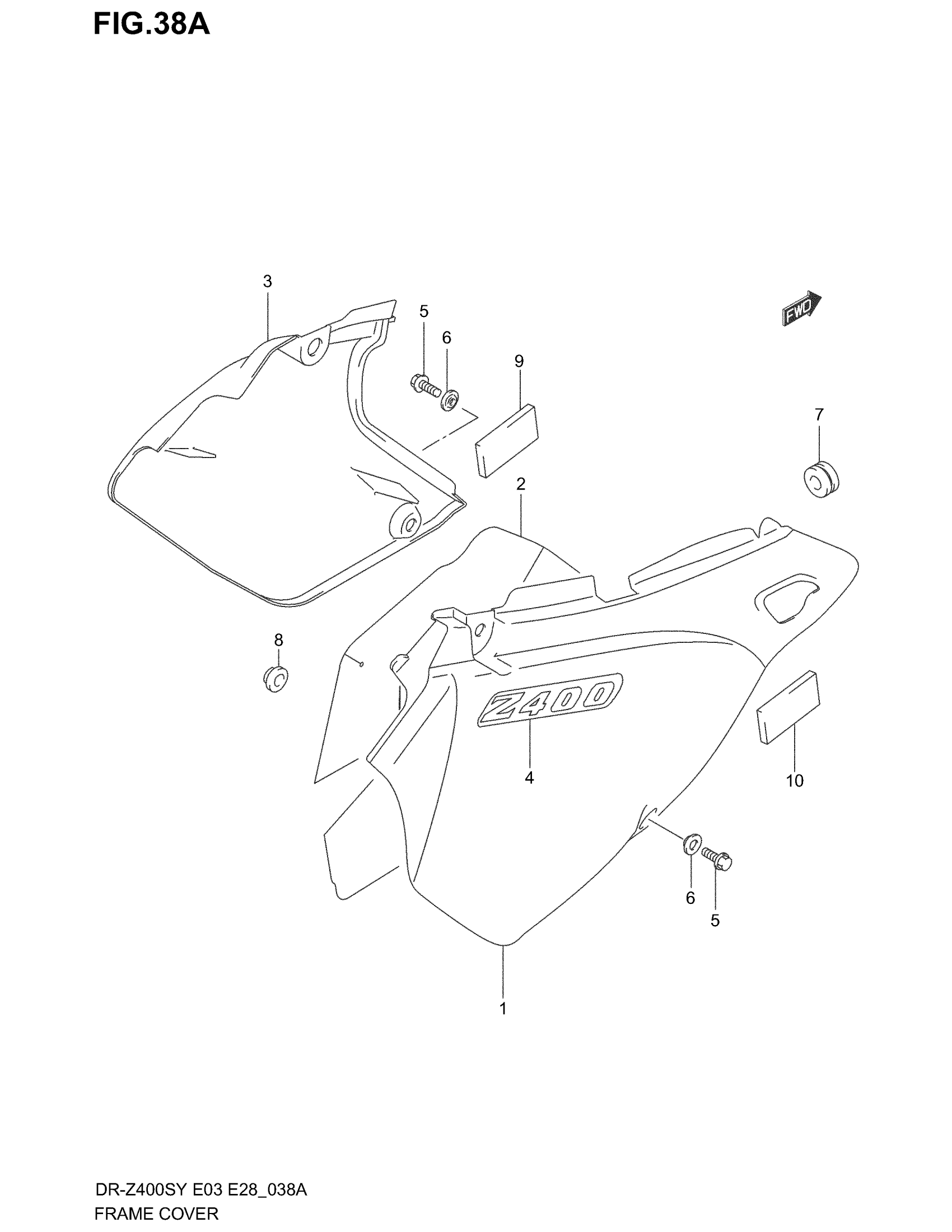

Suzuki DR-Z400S (2004) FRAME COVER (MODEL K1) Diagram

#

Description
Price

1

COVER, FRAME RH (WHITE) | FOR N9J This part replaces 47111-29F10-30H.

47111-29FC0-30H

$57.40

1

COVER, FRAME RH (YELLOW) | FOR YR1 This part replaces 47111-29F10-YR1.

47111-29F10-YU1

Unavailable

2

SHIELD, FRAME COVER RH

47166-29F00

$82.92

3

COVER, FRAME LH (WHITE) | E3,E28 FOR N9J This part replaces 47211-29F10-30H.

47211-29FA0-30H

$57.40

3

COVER, FRAME LH (YELLOW) | E3,E28 FOR YR1 This part replaces 47211-29F10-YR1.

47211-29F10-YU1

Unavailable

3

COVER, FRAME LH (WHITE) | E33 FOR N9J This part replaces 47211-29F30-30H.

47211-29FC0-30H

$82.75

3

COVER, FRAME LH (YELLOW) | E33 FOR YR1

47211-29F30-YR1

Unavailable

4

EMBLEM, FRAME COVER | FOR N9J

68131-29F10-CW7

Unavailable

4

EMBLEM, FRAME COVER | FOR YR1

68131-29F10-FR4

Unavailable

5

BOLT This part replaces 01547-06163.

01547-0616B

$2.45

6

WASHER

09169-06041

$2.20

7

CUSHION, RH

09320-06504

$4.96

8

CUSHION, MUFFLER

09321-10018

$5.45

9

CUSHION, LH COVER FRONT

47161-29F00

$6.11

10

CUSHION, RH COVER FRONT

71762-65G10

$8.28
