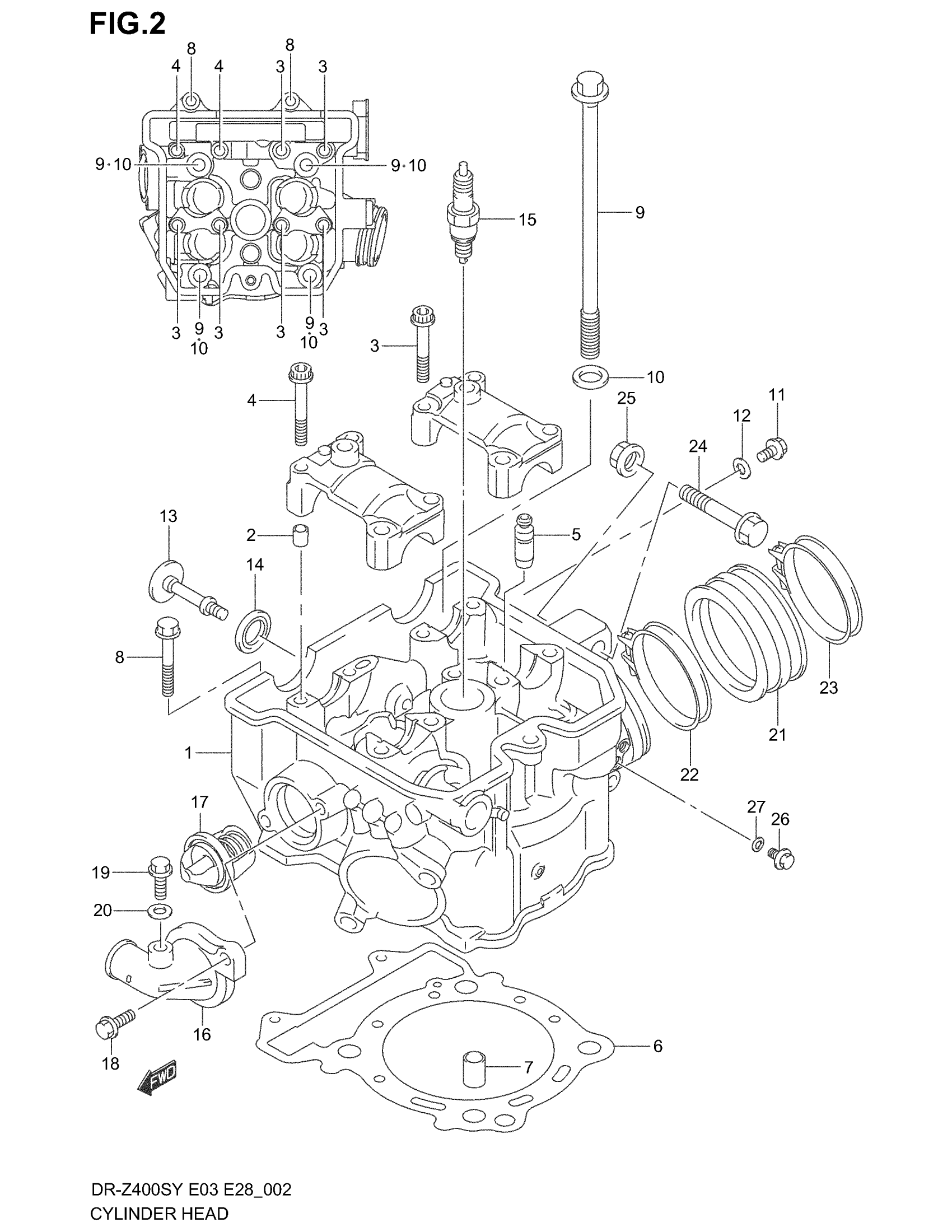

Suzuki DR-Z400S (2004) CYLINDER HEAD Diagram

#

Description
Price

1

HEAD ASSY, CYLINDER | MODEL Y/K1 This part replaces 11100-29F10.

11100-29F11

$1,095.72

1

HEAD ASSY, CYLINDER | MODEL K2/K3/K4; Includes Item(s) 2 - 4

11100-29F11

$1,095.72

2

PIN

09206-08001

$1.78

3

BOLT This part replaces 07120-06403.

07120-0640B

$3.37

4

BOLT This part replaces 07120-06453.

07120-0645B

$3.37

5

GUIDE, VALVE (OS:0.3) | OPT

11115-20E70

$32.10

6

GASKET, CYLINDER HEAD

11141-29F01

$41.48

7

PIN (L:18)

04211-13189

$2.19

8

BOLT (6X39)

09103-06504

$2.19

9

BOLT (10X175)

09103-10276

$16.01

10

WASHER (10.5X19X2)

09160-10082

$1.61

11

BOLT This part replaces 01550-06103.

01550-0610A

$1.97

12

GASKET

09168-06023

$2.35

13

BOLT, SIDE FACE | MODEL Y/K1

11161-33E00

$9.89

14

WASHER | MODEL Y/K1

11191-13E00

$4.54

15

SPARK PLUG (NGK,CR8E)

09482-00456

$6.73

15

SPARK PLUG (DENSO,U24ESR-N)

09482-00457

$6.09

15

SPARK PLUG (NGK,CR7E) | OPT

09482-00516

$6.47

15

PLUG SPARK (CR9E) | OPT

09482-00458

$6.47

15

SPARK PLUG (NGK,CR10E) | OPT

09482-00460

$6.47

15

SPARK PLUG (DENSO,U22ESR-N) | OPT

09482-00515

$5.97

15

SPARK PLUG (DENSO,U27ESR-N) | OPT

09482-00459

$6.09

15

SPARK PLUG (DENSO,U31ESR-N) | OPT

09482-00461

$12.62

16

COVER, THERMOSTAT

17661-29F10

$45.38

17

THERMOSTAT WATER This part replaces 17670-33400.

17670-33401

$35.61

18

BOLT This part replaces 01547-06163.

01547-0616B

$2.45

19

BOLT, AIR RELEASE

17568-50F00

$4.76

20

GASKET, RELEASE

09168-06026

$3.10

21

PIPE INTAKE This part replaces 13111-29F10.

13111-29F11

$13.75

22

CLAMP, HEAD

09402-58208

$5.36

23

CLAMP, CARBURETOR

09402-52208

$5.36

24

BOLT (10X50)

09103-10235

$5.65

25

NUT, REAR SWGARM BRACKET This part replaces 09159-10058.

09159-10115

$3.55

26

BOLT (8X9.5) This part replaces 09103-08335.

09103-08421

$4.12

27

GASKET (8.2X14X1)

09168-08016

$1.65
