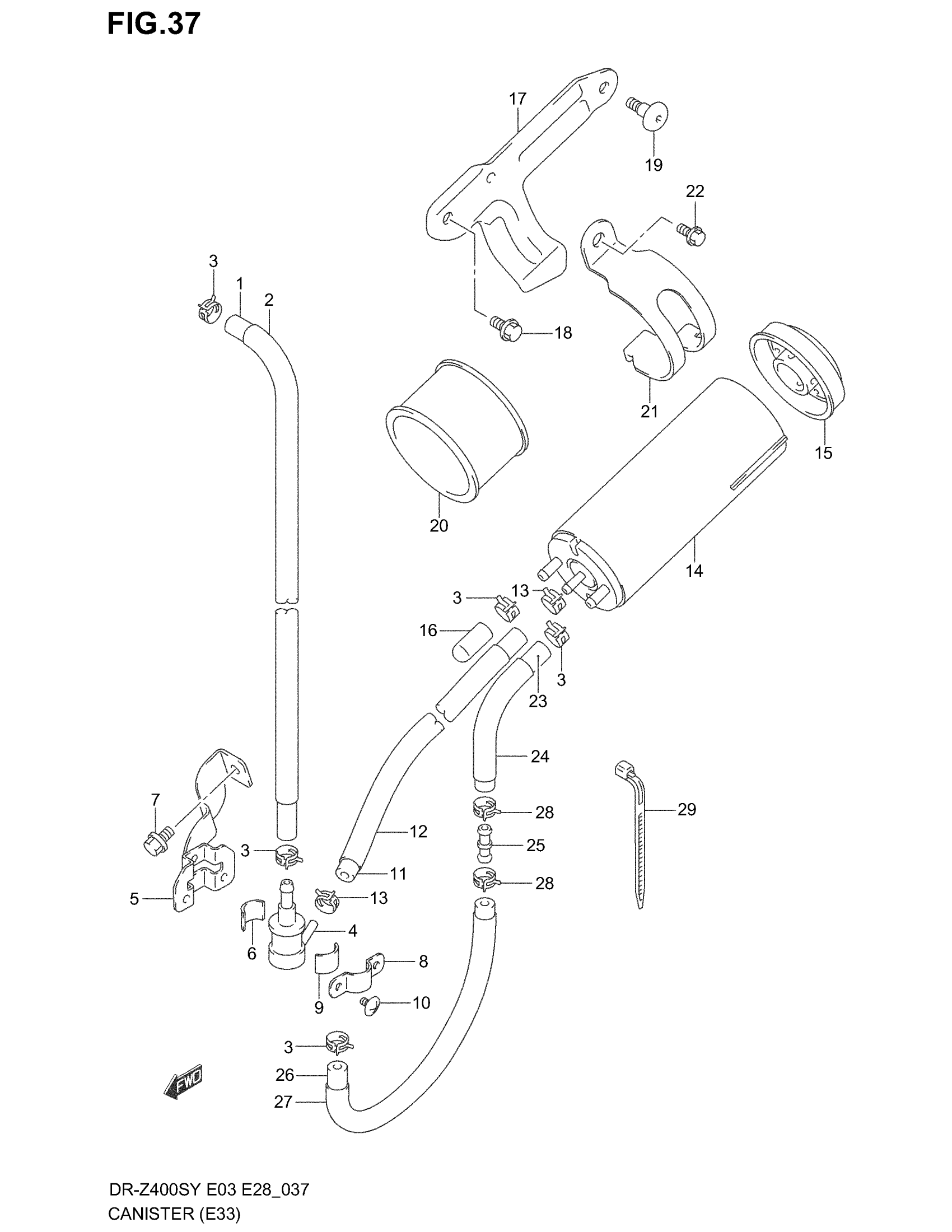

Suzuki DR-Z400S (2004) CANISTER (E33) Diagram

#

Description
Price

1

HOSE, BREATHER VALVE

44434-29F00

Unavailable

2

PROTECTOR | L:600!340

09351-14152-600

$10.62

3

CLIP

09401-11413

$2.26

4

VALVE FUEL TANK BREATHER

44240-17C00

$64.68

5

BRACKET, VALVE | Includes Item(s) 6

44890-29F00

Unavailable

6

CUSHION (10X30X2)

44894-24A00

$1.72

7

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

8

PLATE,FUEL TANK BREATHER NO.2 | Includes Item(s) 9

44892-24A00

$4.52

9

CUSHION (10X30X2)

44894-24A00

$1.72

10

SCREW This part replaces 02142-04083.

02142-0408B

$1.70

11

HOSE, VALVE/CANISTER

44435-29F00

Unavailable

12

PROTECTOR | L:2000!950

09351-14152-00B

Unavailable

13

CLIP

09401-12404

$2.34

14

CANISTER ASSY CHARCOAL

17210-26E00

$324.10

15

CAP CANISTER This part replaces 17211-48E00.

17211-48E01

$19.52

16

CAP, FRONT

09251-07003

$2.53

17

BRACKET, CANISTER

44881-29F00

Unavailable

18

BOLT (8X16) This part replaces 01550-08163.

01550-0816A

$2.32

19

BOLT, BRACKET REAR

09116-06165

$3.03

20

CUSHION CANISTER

44883-26E00

Unavailable

21

HOLDER, CANISTER

44882-29F00

Unavailable

22

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

23

HOSE, CARB PURGE REAR

44436-29F00

Unavailable

24

PROTECTOR | L:600!360

09351-14152-600

$10.62

25

JOINT

09364-06005

$5.72

26

HOSE, CARB PURGE FRONT

44437-29F00

Unavailable

27

PROTECTOR | L:600!570

09351-14152-600

$10.62

28

CLIP

09401-11413

$2.26

29

CLAMP

09407-14407

$3.57
