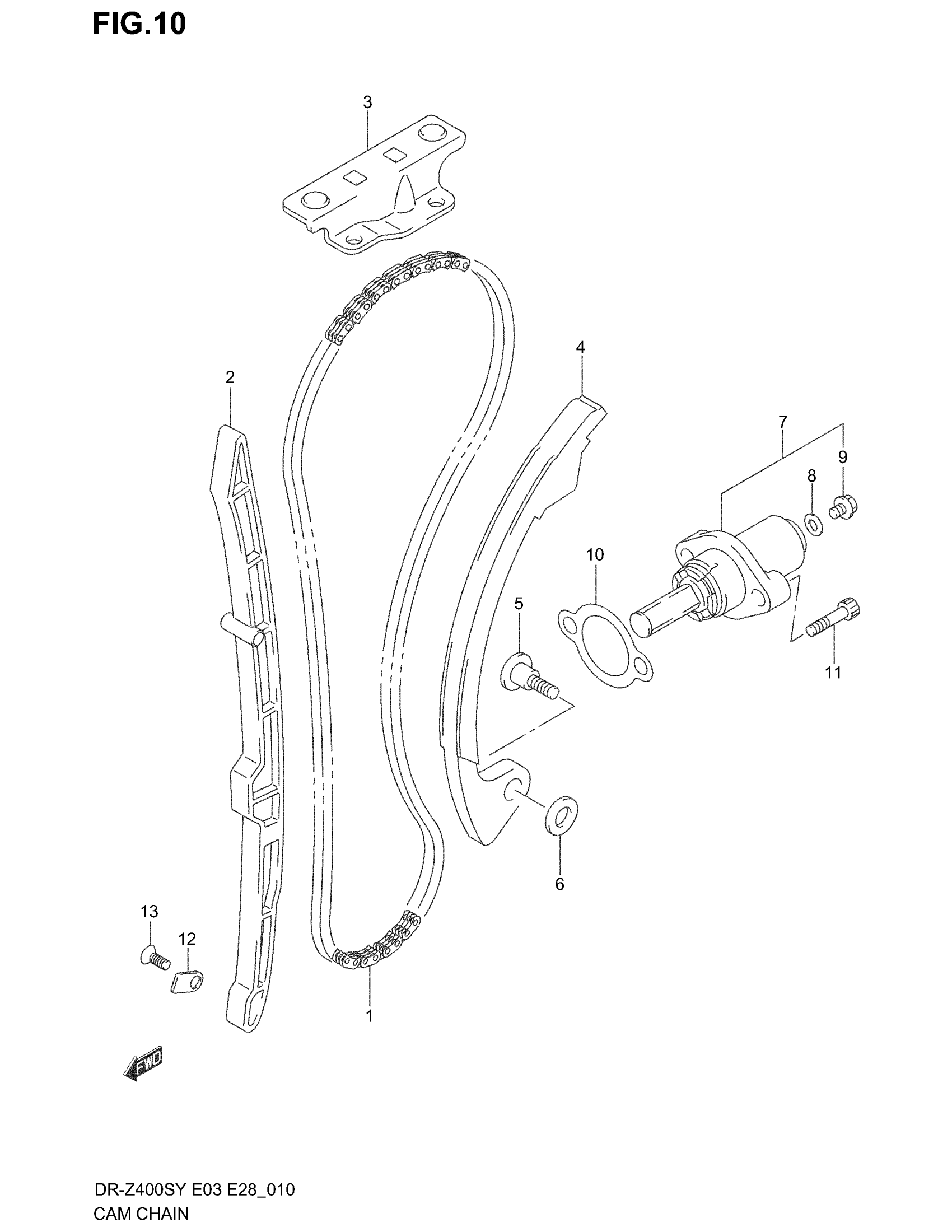

Suzuki DR-Z400S (2004) CAM CHAIN Diagram

#

Description
Price

1

CHAIN, CAMSHAFT DRIVE This part replaces 12760-29F00.

12760-29F01

$97.22

2

GUIDE, CAM CHAIN NO.1

12771-29F00

$33.46

3

GUIDE, CAM CHAIN NO.2

12782-29F00

$29.30

4

TENSIONER, AND ADJUSTER SET | MODEL Y/K1/K2 This part replaces 12811-29F00.

12830-29810

Unavailable

4

TENSIONER CAM CHAIN | MODEL K3/K4 This part replaces 12811-29F10.

12811-29F11

$41.73

5

BOLT,CAM CHAIN TENSIONER

12812-35C00

$8.73

6

WASHER

08211-06181

$1.80

7

ADJUSTER ASSY, TENSIONER | MODEL Y This part replaces 12830-29F00.

12830-29F01

Unavailable

7

ADJUSTER ASSY, TENSIONER | MODEL K1/K2

12830-29F01

Unavailable

7

ADJUSTER ASSY, TENSIONER | MODEL K3/K4; Includes Item(s) 8 - 9

12830-29F10

$140.02

8

GASKET

12837-24F10

$4.78

9

PLUG

12833-05A00

$16.28

10

.GASKET,TENSIONER ADJUSTER

12837-24A10

$3.25

11

BOLT This part replaces 07130-06253.

07130-0625B

$3.04

12

RETAINER CAM CHAIN GUIDE NO.1

12773-24F00

$4.02

13

SCREW

09126-06011

$2.03
