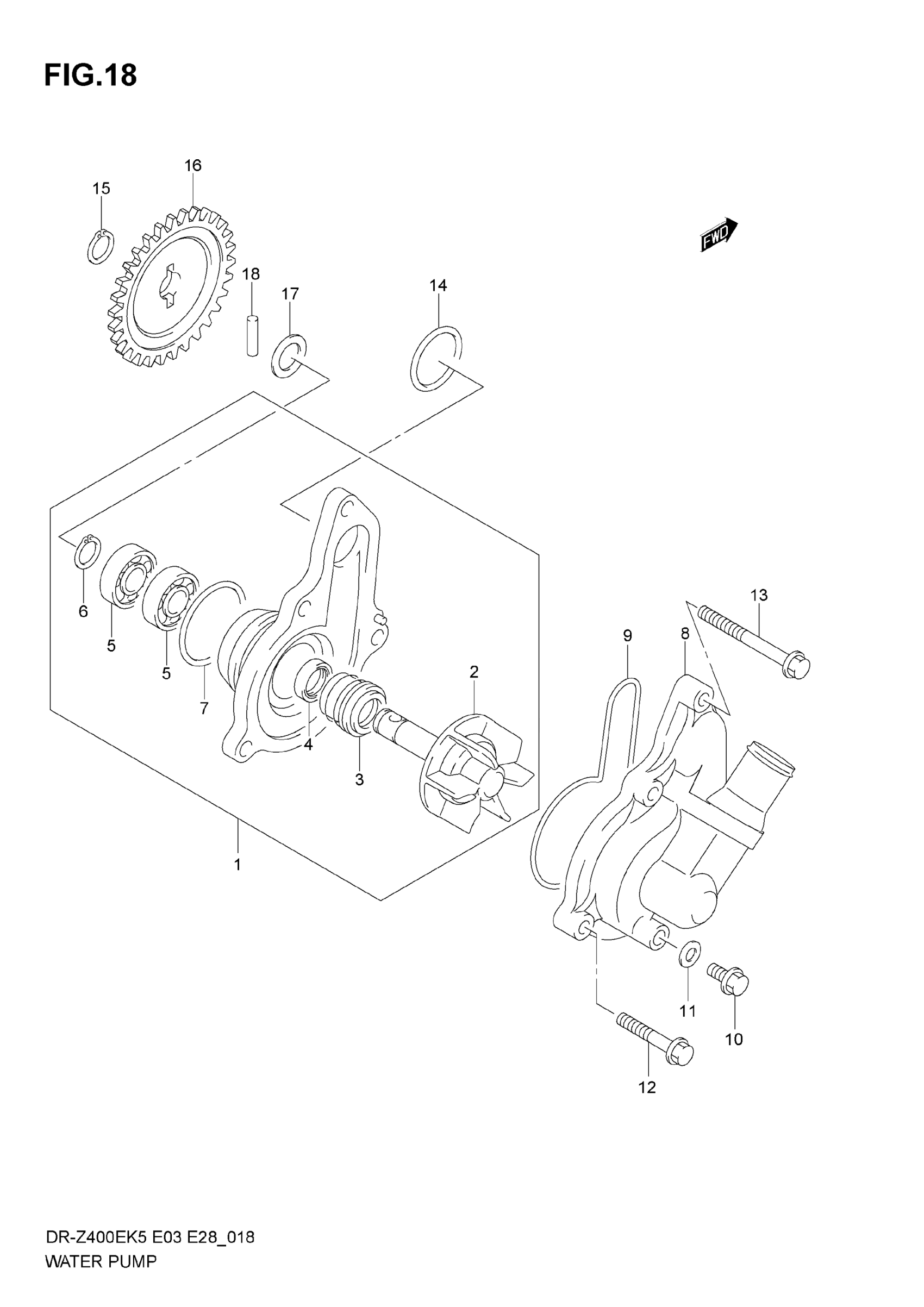

Description

Price

1

PUMP ASSY,WATER | MODEL K5 This part replaces 17400-29F00.

17400-29F01

$144.14

1

PUMP ASSY WATER | MODEL K6/K7; Includes Item(s) 2 - 7 This part replaces 17400-29F10.

17400-29F11

$115.58

2

IMPELLER SHAFT | MODEL K5

17491-29F00

$44.50

2

IMPELLER SHAFT | MODEL K6/K7

17491-29F10

$55.42

3

.SEAL,MECHANICAL This part replaces 17470-02F10.

17470-02F11

$29.22

4

OIL SEAL | MODEL K5

17419-29F00

$9.89

4

.SEAL OIL (10X21X5) | MODEL K6/K7

09283-10004

$4.96

5

BEARING

08110-69000

$19.23

6

.E-RING This part replaces 08332-11086.

08332-1108A

$1.78

7

.O-RING

17435-33400

$15.29

8

CASE, WATER PUMP

17410-29F21

$101.87

9

O RING

17435-29F00

$10.23

10

BOLT This part replaces 01547-06103.

01547-0610B

$2.45

11

GASKET

09168-06026

$3.10

12

BOLT (6X30)

09103-06204

$2.82

13

BOLT

09103-06209

$3.30

14

.O-RING (D:2.4,ID:21.8)

09280-22001

$1.65

15

CIRCLIP This part replaces 08331-31106.

08331-31109
