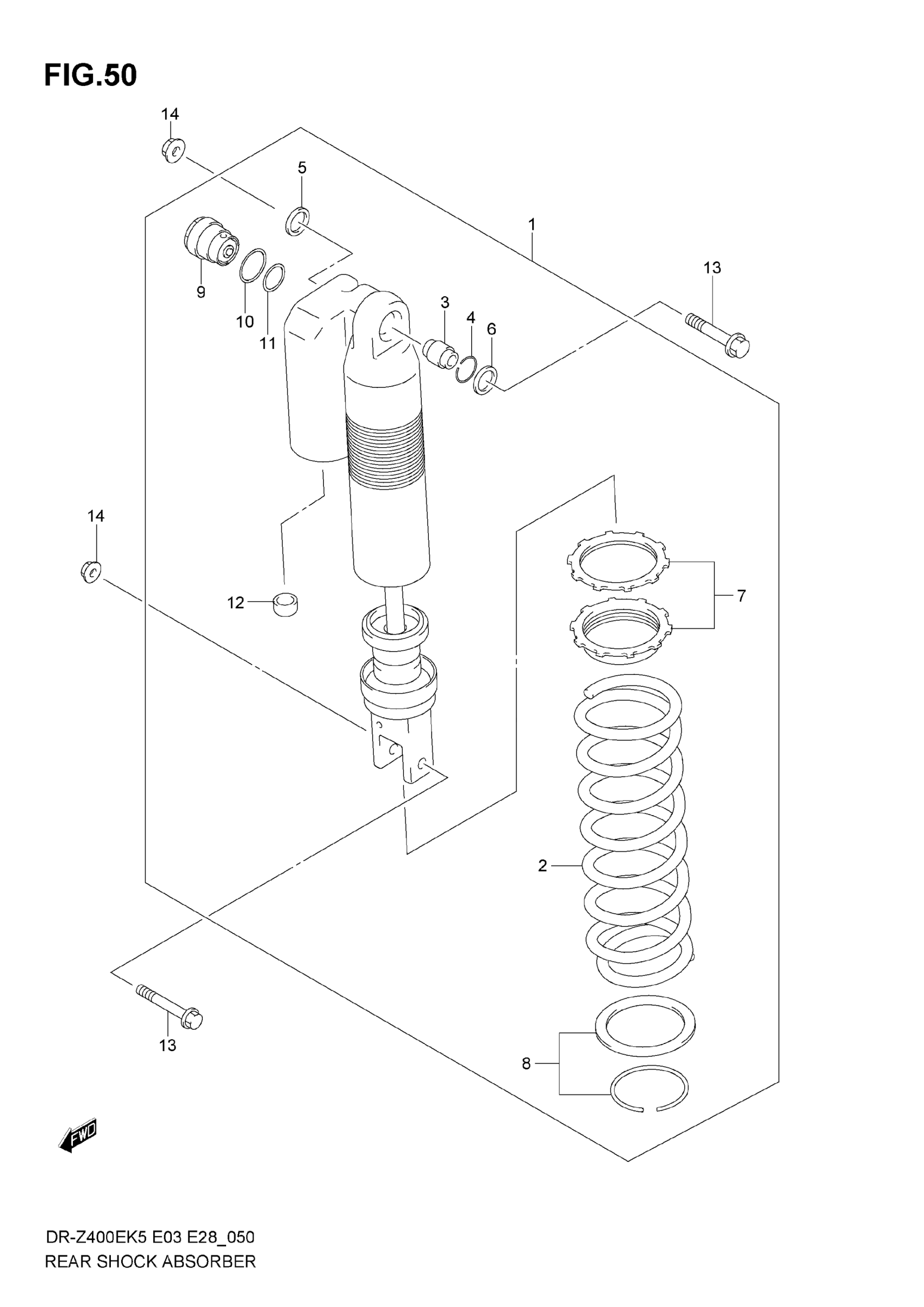

Suzuki DR-Z400E (2007) REAR SHOCK ABSORBER Diagram

#

Description
Price

1

ABSORBER ASSY, REAR SHOCK (YELLOW) | MODEL K5 E3,E33

62100-29F60-163

Unavailable

1

ABSORBER ASSY, REAR SHOCK (YELLOW) | MODEL K5 E28

62100-29F50-163

Unavailable

1

ABSORBER ASSY, REAR SHOCK (RED) | MODEL K6/K7 E3,E33

62100-29F60-YKS

Unavailable

1

ABSORBER ASSY, REAR SHOCK (RED) | MODEL K6/K7 E28; Includes Item(s) 2 - 12

62100-29F50-YKS

Unavailable

2

SPRING (YELLOW) (K=52.0N/5.3KG) | MODEL K5

62211-29F00-163

Unavailable

2

SPRING (RED) (K=52.0N/5.3KG) | MODEL K6/K7

62211-29F00-37W

Unavailable

2

SPRING (SOFT) (K=50N/MM) | OPT

62211-29FB0

Unavailable

2

SPRING (HARD) (K=54N/MM) | OPT

62211-29FA0

Unavailable

3

BEARING (10X26X22)

62175-36E00

$102.82

4

RING

62277-27C40

$3.95

5

SEAL, DUST RH

62226-36E00

$10.12

6

SEAL, DUST LH

62226-36E10

$10.32

7

ADJUSTER NUT SET

62190-36E50

Unavailable

8

SPRING SEAT SET

62220-29810

Unavailable

9

BOLT, PLUG

62130-29F50

Unavailable

10

O RING, OUTER

62131-28E00

$5.00

11

O RING, INNER

51174-43D00

$4.82

12

..CAP,AIR VALVE

52194-46686

Unavailable

13

BOLT (10X47.5)

09103-10149

$3.70

14

NUT, REAR SWGARM BRACKET This part replaces 09159-10058.

09159-10115

$3.55
